Network Broadcast Alarm Host GX-PB8103A-K/GX-PB8103B-K

Public Announcement System Price
Pa Announcement System
Public Announcement System Price
Pa Announcement System

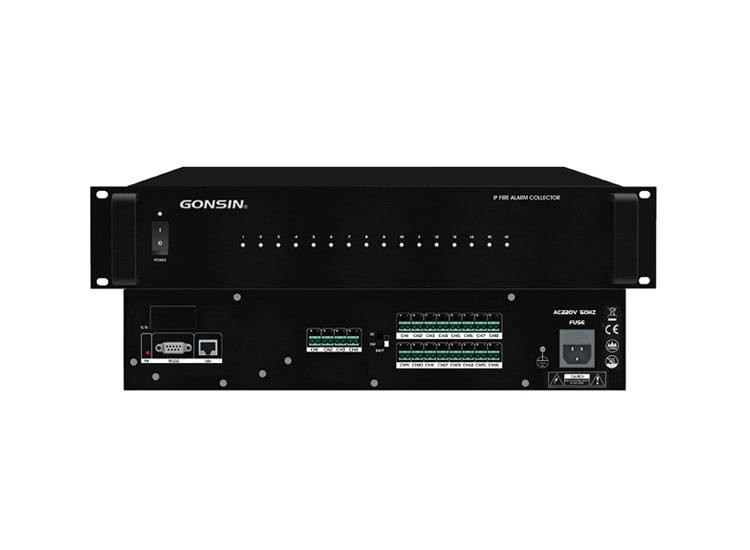

Features of Network Broadcast Alarm Host GX-PB8103A-K / GX-PB8103B-K

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can be reached, to achieve access and control of servers and other network equipment

  • The panel is equipped with 16 level indicator lights to display the working status, and supports 16 channels of fire alarm signal access. The access mode can be set to short circuit, 12V-24V signal

  • It has 4 short-circuit outputs, which can be connected to door locks or warning lights to realize joint control GX-PB8103A-K

  • It supports the expansion connection of multiple alarm hosts to realize arbitrary expansion of the control area

  • The alarm area can be limited to the accident area or extended to several neighboring areas, which is determined by the server's pre-programming

  • The alarm sound is stored on the server, no external alarm sound source is required, and the alarm playback sound can be customized through the management software

  • It has long-term, continuous, stable, efficient and reliable operating performance

  • The chassis adopts the international 2U rack-mounted sheet metal standard chassis structure, beautiful in appearance, aluminum alloy panel, beautiful and practical

Technical Parameters of Network Broadcast Alarm Host GX-PB8103A-K / GX-PB8103B-K

ModelGX-PB8103A-KGX-PB8103B-K
Alarm input interface16 channels32 channels
Alarm signal type0V, 12V, 24V
Network interfaceRJ45*1RJ45*2
Short circuit output4 channels/
Power supplyAC220V±10% 50Hz
Power consumption20W
Product size485×340×88mm
Product weight6Kg
Environmental humidity20%-80% relative humidity, no frost
