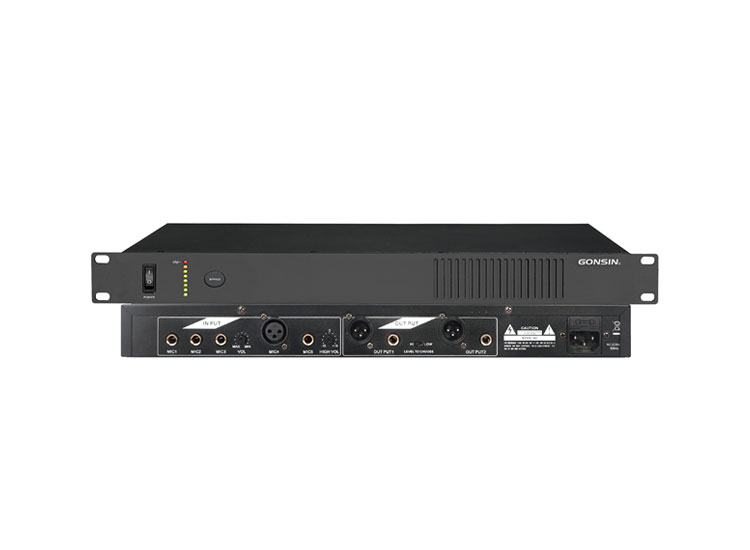

Digital Feedback Suppressor GX-FBK05-N

Feedback Suppressor
Feedback Suppressor
Get A Quote
Features
Technical Specifications

Features of Digital Feedback Suppressor GX-FBK05-N

  • Precision-machined aluminum panel, portable, lightweight and beautiful

  • Built-in floating-point DSP digital algorithm processor, automatically adapt to the acoustic environment, automatically track and eliminate howling frequency points

  • One key to start the anti-howling processing mode, system debugging is simple and easy to use

  • The control panel has signal dynamic status indication and signal overload PEAK indication

  • With 5 channels MIC input, two sets of audio outputs, support for balanced/unbalanced audio signals

  • The input signal supports volume and tone gain adjustment

  • The output signal has high/low gain selectable, suitable for more post stage devices

  • Adopting high-efficiency air duct design with good heat dissipation performance, which effectively guarantees the stable operation of the equipment for a long time

  • Suitable for hand-in-hand conference system, conference wired and wireless microphone access

Technical Specifications of Digital Feedback Suppressor GX-FBK05-N

Input channels1 XLR balanced input, 4 6.35 unbalanced inputs
Input impedance>20KΩ (balanced), >20KΩ (unbalanced)
Output channels2 balanced outputs, 2 unbalanced outputs
Output impedance200Ω (balanced), 150Ω (unbalanced)
Frequency response125Hz~15KHz
Distortion<0.1% @ 1KHz
SNR>90dB
Power supply220V±10% 50Hz
Power consumption30W
Product size480×220×44mm
Product weight3.5kg
Working temperature-10~55°C
