Fiber Transmitter & Fiber Receiver

Centralised Control System
Central Control System
Centralised Control System
Central Control System
Get A Quote
Features
Technical Parameters

Features of Fiber Transmitter & Fiber Receiver

Regular

  • Support 1080P 3D &4K*2K@60Hz signal

  • Audio input source optional

  • Support EDID learning function, built-in 10 types of EDID data

  • Real time LED indicators for easy diagnosis and troubleshooting

  • Support firmware upgrade via Micro USB port

  • Supports hot plug

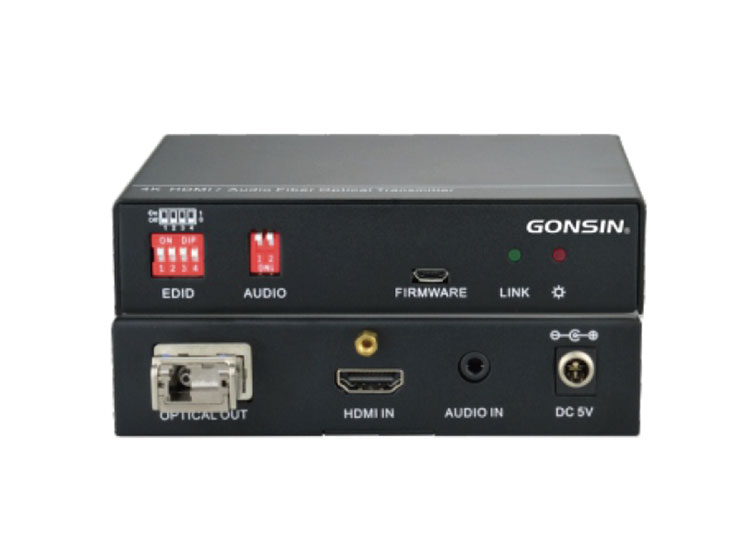

Fiber Transmitter GX-TF104T-D

  • HDMI input port, compatible with HDMI& DVI signal

  • 1 analog audio input port, support PCM (dual channel), stereo transmission

  • 1 way fiber signal output, single-mode (without HDCP) transmission distance up to 2km

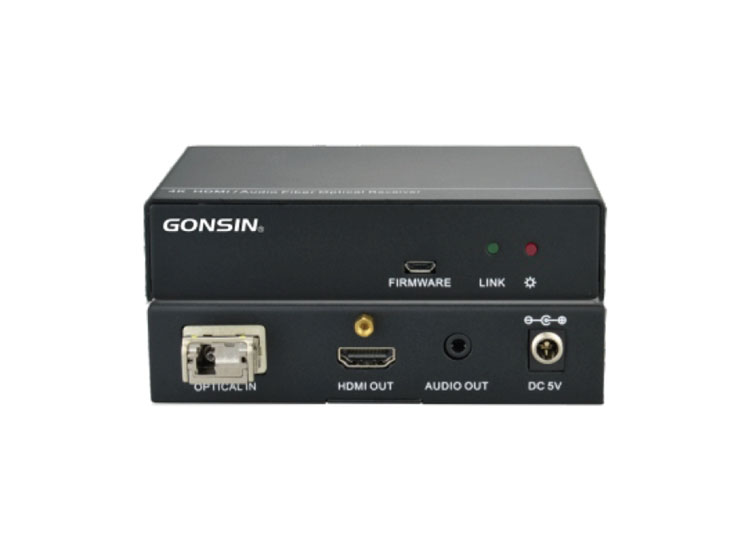

Fiber Receiver GX-TF104R-D

  • 1 way fiber signal input, single-mode (without HDCP) transmission distance up to 2km

  • HDMI output port, compatible with HDMI& DVI signal

  • 1 analog audio output port, support PCM (dual channel), stereo transmission

Technical Parameters of Fiber Transmitter & Fiber Receiver

ModelGX-TF104T-DGX-TF104R-D
Input1*HDMI(Type A HDMI Female)1*Fiber signal
Output1*AUDIO(3.5mm jack), 1*Fiber signal1*AUDIO(3.5mm jack), 1*HDMI(Type A HDMI Female
Fiber connectorSPF Fiber connector
ConnectorLC fiber connector,date rate 10.2Gbps(Max)
Transmission distance300M(Max, OM3 Multimode fiber) 2KM(Single-mode fiber, suit to single mode fiber optical module)
Transmission Solution(Max)4K*2K
Date rate(Max)10.2Gbit/s
StandardsHDMI1.4& DVI1.0; Stereo
Power supplyInput: AC 100~240V,50/60Hz,
Output: DC 5V 1A
Power consumption3.1W2.7W
Temperature0~50°C
Reference Humidity10% ~ 90%
Dimension(W*D*H)120 * 80* 32mm
Weight240g
