TL-4200 Desktop Digital Conference System

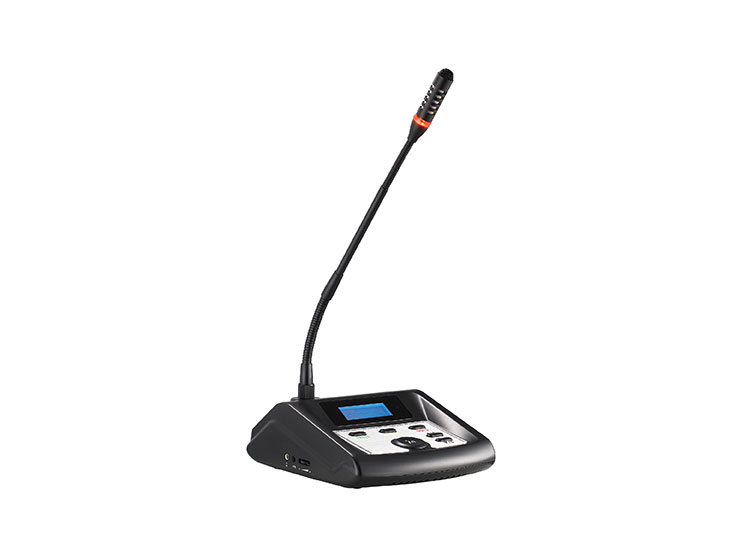

Conference Table Mic
Conference Table Mic

Functions of TL-4200 Desktop Digital Conference System

  • GONSIN TL-4200 digital conference system offers versatile conferencing solutions featuring microphone discussion, interactive voting, video tracking, digital recording and software control.

  • TL-4200 basic discussion unit allows the delegate to speak, request to speak and listen to speech, other units with extended function can support register attendance and cast a vote. Each unit comes with headphone jack and volume control for delegates to listen to the floor speaker and any interpreted language channel, and adjust volume level for comfortable listening. Built-in speaker automatically mutes when a microphone is turned on. 1 to 4 delegate microphones can be activated at the same time. The system also comes with voice-activated function, in this mode, the microphone will be activated as the users speak. The sensitivity of voice-activated is adjustable, which makes it more user-friendly for normal users and visually impaired people.

Main Features of TL-4200 Desktop Digital Conference System

  • Elegant streamline design

  • Exquisite manufacturing process

  • Voice-activated function

  • Support multiple chairman units and vice chairman units

  • Built-in loudspeaker

  • Support auto camera tracking function (SD and HD)

  • Highly resistant to mobile phone interference

  • Electret cardioid pickup pattern microphone, rich timbre

  • White-on-blue backlit LCD to display the unit status

  • Pluggable gooseneck microphone stem, red ring luminant to indicate active mic

Basic Functions of TL-4200 Desktop Digital Conference System

  • Microphone discussion: push to talk or request to talk. AUTO/FIFO/OPERATOR/VOX modes are available for microphone management

  • VOX sensitivity and mic time-out are adjustable

  • Unlimited chairman units and vice chairman units are allowed

  • System supports hot plugging

  • Six kinds of detachable gooseneck microphone stem

  • Attandence registration with software: pressing key or inserting card

  • Speak time control with software

  • VOX function: in vox mode, the unit will be activated as user speaks; VOX sensitivity can be adjust by the server ( high, middle, low); microphone time-out is adjustable (6-180 seconds), 1-4 delegate unit can be used except the chairman unit

  • Optional HD video camera tracking matrix, switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view

  • 4*1+1 video matrix is built in the Central Control Unit, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view

  • Dynamic LCD messages for voting, discussion, interpretation and attendance registration

  • Units come with recording output

The chairman unit has following functions besides functions above:

  • Chairman units can be activated at any time

  • Chairman unit can override/mute all the active delegate units

Based on functions of TL-4200, TL-VB4200 unit has functions below:

  • Voting: delegate can vote for Yes, No, Abstain. Vote counting and result display are enabled automatically by PC

    -- Single-choice and multiple-choice voting

    -- First keypress and final keypress voting

  • Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election'

  • Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software.

  • LCD Dynamic display of the voting process( such as " registration please, registration done, voting please, voted, please return, request to speak, mic on", etc.)

Technical Parameters of TL-4200 Desktop Digital Conference System

Mounting typedesktop
Frequency response20Hz~20KHz
Max SPL125 dB (THD<3%)
Dynamic range>85dB
VOX SensitivityHigh/Middle/Low(77dB/80dB/82dB)
VOX auto mic time-out6-180 seconds
Microphone stem length410mm(standard)(310mm/510mm optional)
LCDsize: 47mm×18mm
blacklight: white letters on blue
Built-in loudspeaker2W/8Ω
Eeaphone jackMono 3.5mm jack
Working temperature0~45°C
Storage temperature-20~50°C

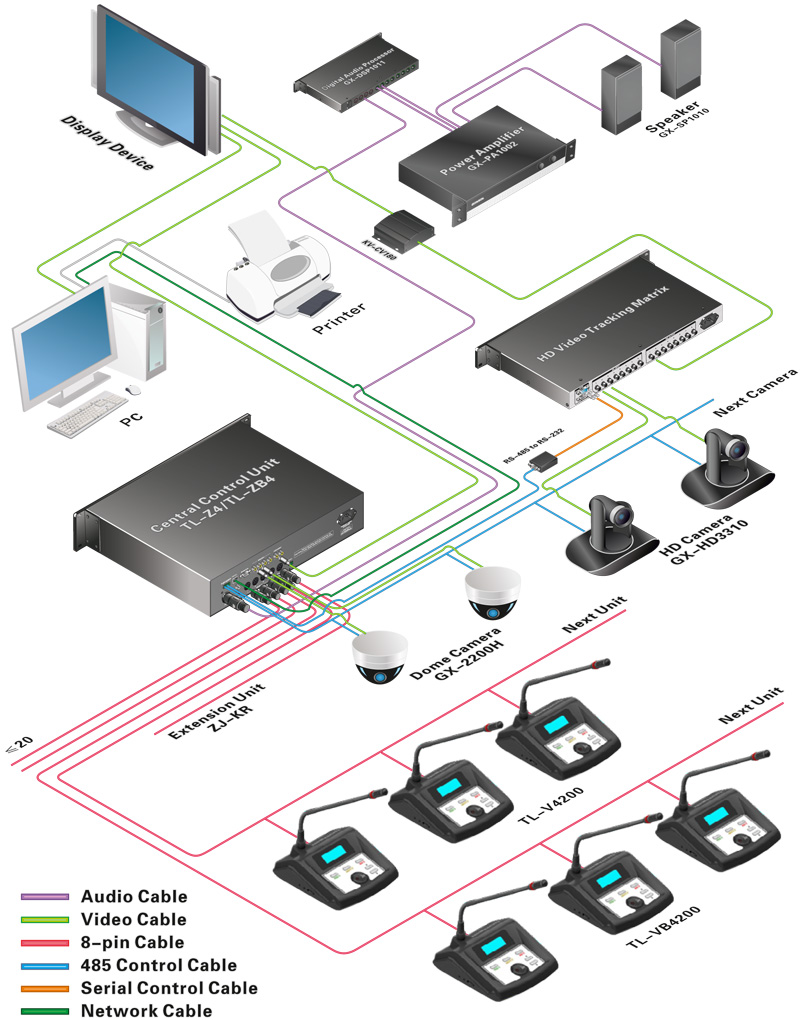

System Configuration of TL-4200 Desktop Digital Conference System

TL-4200 Desktop Digital Conference System

System Configuration Products of TL-4200 Desktop Digital Conference System
