Automatic Camera Tracking System

GONSIN Automatic Camera Tracking System can automatically track the speaker by the camera, and comprise of HD video tracking matrix, HD video conference camera and HD video signal switcher, to realize fluent and clear camera tracking image. The video camera tracking system has stable performance and is easy to use. It can be widely used in video conference, electronic classroom, technical training and other fields.

Auto Tracking Camera For Zoom
Auto Tracking Camera For Live Streaming
Auto Tracking Camera
Auto Tracker Camera
Auto Follow Camera
Auto Tracking Camera System
HD Recording and Broadcasting Unit
Auto Tracking Camera For Zoom
Auto Tracking Camera For Live Streaming
Auto Tracking Camera
Auto Tracker Camera
Auto Follow Camera
Auto Tracking Camera System
HD Recording and Broadcasting Unit

Automated Camera Tracking System Features

The unique algorithm enables our 4k auto-tracking WIFI video conference camera to automatically track the presenter's faces and motions. The speakers can walk freely in the classroom without any accessories, provide guidance and problem-solving, and ensure quality education. There is no need to worry about the connection restrictions, charging safety and extra costs of wearable devices, and focus on creating zero-distance interactive teaching.



Information of HD Dome Auto Tracking Camera System GX-HD3310 / 3310S12

HD Dome Auto Tracking Camera System GX-HD3310 / 3310S12  Functions


  • Superb high-definition image:Using 5 million pixel 1/2.8 inch high-quality image sensor, it can provide up to 1080P60 high-definition image quality

  • Audio Input Interface:Support 16000, 32000, 44100, 48000 sampling frequency, G.711A coding only support 8000 sampling frequency, support AAC, MP3, G.711A audio coding

  • Quiet PTZ:By adopting high accuracy step driving motor mechanism, it works extremely quiet and moves smoothly and very quickly to designated position.

  • Multi-Format Video Outputs:Support HDMI, SDI, USB, wired LAN (POE function optional); SDI support in 1080P60 format transmission 100 meters;

  • Output image format support 1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/59.94

  • Network interface with H.265 compression support

  • Support 100M network interface; support H.265/H.264 video compression, support AAC, MP3,G.711A audio compression; support up to 1920×1080 resolution 60 fps /Support Onvif, RTSP, RTMP protocols, and RTMP push, easy link to streaming servers (Wowza, FMS), support RTP multicast mode

  • Low noise and High SNR:Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

  • Transparent transmission function of remote controller:Support transparent transmission function,make the supporting equipments easy to operate.

  • Low-power sleep function:Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode

  • Support Multiple Control Protocol:Support VISCA,PELCO-D,PELCO-P protocols which can also be automatically recognized. Support VISCA control protocol through IP port.

  • RS-232 cascade function:ST series support RS-232 cascade function which is convenient for installing.

  • 255 presets positions:Up to 255 presets (10 presets by remoter).


Technical Specifications of HD Dome Auto Tracking Camera System GX-HD3310 / 3310S12 / 3310S30


ModelGX-HD3310S12GX-HD3310
Camera ParameterSensor5 million pixels 1/2.8-inch high-quality HD CMOS sensor
Max. output resolution1920×1080@60Hz
Video Format

1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94

720P60/50/30/25 /59.94/29.97

Optical Zoom12X f=3.9~46.8mm20X f=5.5~110mm
View Angle6.6°(tele)-70.4°(wide)3.3°(tele)-54.7°(wide)
AVF1.8~F2.4F1.6~F3.5
Digital ZoomX10
Minimum Illumination0.5Lux(F1.8, AGC ON)
DNR2D & 3D DNR
White Balance

Auto / Manual/ One Push/ 3000K/ 3500K/4000K/4500K/5000K

5500K/6000K/6500K/70000K

FocusAuto/Manual/One Push
ApertureAuto/Manual
Electronic ShutterAuto/Manual
BLCON/OFF
WDROFF/ Dynamic level adjustment
Video Adjustment

Brightness, contrast, sharpness, horizontal flipping, vertical flipping (displayed when automatic flipping is turned off), black and white mode, gamma curve,electronic zoom, DCI, lens distortion correction

SNR>55dB
Input/Output InterfaceVideo InterfacesHDMI , SDI, LAN, USB2.0
Control Signal InterfaceRS232-IN,RS232-OUT,RS485
Control ProtocolVISCA/Pelco-D/Pelco-P;Baud Rate: 11520/9600/4800/2400bps
Audio Input InterfaceDouble track 3.5mm linear input;
HD IP Interface

100M IP port; POE power supply optional;support audio and video output, support network VISCA control protocol

Compression Format

LAN support H.265,H.264;

USB 2.0 interface support: MJPG, H264, H.265, YUY2, NV12

Image Code StreamDual stream output
Network ProtocolRTSP, RTMP, ONVIF, GB/T28181
Power InterfaceHEC3800 outlet (DC12V)
PTZ ParameterPan Rotation±170°
Tilt Rotation-30° ~+90°
Pan Control Speed0.1 -100°/sec
Tilt Control Speed0.1 -30°/sec
Preset SpeedPan: 100°/sec,Tilt: 45°/sec
Preset Number255 presets (10 presets by remote controller)
Other ParameterSupply AdapterAC110V-AC220V to DC12V/1.5A
Input VoltageDC12V±10%
Input Current1A(Max)
Consumption12W(Max)
Store Temperature-10°C~+60°C
Store Humidity20%~95%
Working Temperature-5°C~+45°C
Working Humidity20%~80%
Dimension258mm*172mm*169mm
Weight1.54KG
Operation EnvironmentIndoor
Remote Operation (IP)Remote Upgrade, Reboot, and Reset
Accessory

Power adapter, RS232 control line, remote controller, manual, warranty

card&certificate

Optional accessoriesMounting bracket

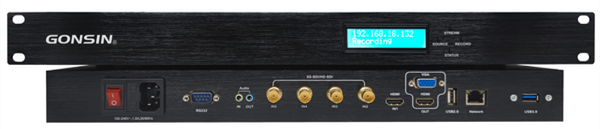

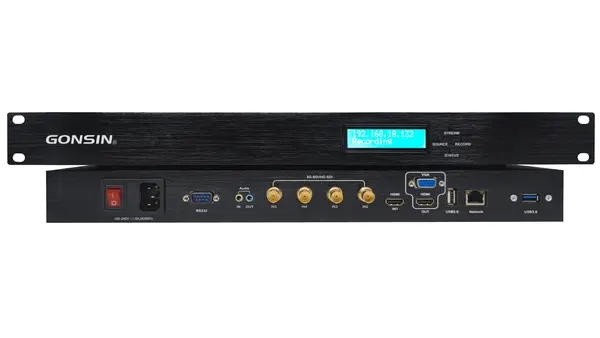

Information of HD Recording and Broadcasting Unit GX-RS104-C

HD Recording and Broadcasting Unit GX-RS104-C Functions

  • Adopt standard shelf chassis, suitable for engineering installation

  • Based on embedded Linux system, the program is cured in the built-in chip, stable and efficient, can be powered off at any time and turn on for a long time

  • Synchronized processing of 6-way video signal, perfect combination of video recording, live broadcast, real time guide and on-demand

  • Support 4-channel SDI input, compatible with 3G-SDI, HD-SDI, SD-SDI signal

  • Support 1-channel HDMI input, up to 4k resolution, resolution backward compatible, support 4k resolution live, recording and on-demand

  • Support 1-channel rtsp/ts stream decoding access, support up to 4k resolution, decoding stream can be recorded after the guide, live and on-demand

  • Support HDMI, VGA high-definition video output, HDMI support 4K@30, backward compatible with 1080P60

  • Support USB3.0 recording, can be external mobile hard disk or U disk (capacity 16G)

  • With a USB2.0 interface, no need to network, connect the mouse can directly control the local playback and file export operations

  • Front panel with LCD, can intuitively display the operating status of the device

  • 3.5mm interface, support audio signal input and output

  • Support single screen, picture-in-picture, two-screen and other screen combinations, the screen layout can be customized

  • Support RS-232 interface, which can be set as network transparent serial port or local serial port

  • Support automatic video recording, automatic hard disk cycle overwrite, support automatic segmentation

  • recording, completely realize unattended automatic recording and broadcasting

  • Recording process support MP4 recording real-time protection, power failure file can be automatically restored

  • Recording process can be synchronized with the video code pushed to the recording resource management

  • server, live platform, to achieve unified resource management, live, on-demand management

  • Video files support ftp automatic upload to the specified account and password ftp server to achieve centralized

  • storage support recording files to the network storage server

  • Support subtitle overlay function

  • Support the overlay function of opening and closing credits

  • Support transparent label and adjustable position of label

  • Support overlay of title, title picture and background picture

  • Support rtmp/http ts/udp ts/rtsp live protocol, embedded rtmp server function

  • Support browser plug-in-free live streaming, support html5 on-demand

  • Built-in web service, remote guide, view video, operation equipment, download recording files through the web page

  • Support 1080P HD video resources and guide page recording at the same time, convenient for post-editing

  • Perfect docking with media resource management platform

  • Provide SDK interface, other systems can be directly connected to the control

  • Support mobile phone/tablet APP access


Technical Specifications of HD Recording and Broadcasting Unit GX-RS104-C


SDI Input1-channel 3G-SDI video input, 1080p@60fps, BNC interface 1.0Vp-p, 75Ω
Video Input1-channel HDMI video input, up to 3840×2160@30fps, backward compatible with 1080P60
Network stream Input1-channel RTSP/TS stream input, support H264 video stream/AAC audio stream decoding,up to 3840×2160@30fps
Video Output1-channel HDMI interface output, support up to 3840 × 2160 @ 30fps;
1-channel VGA interface output, support up to 1080 @ 60fps
Audio Input1-channel linear input, 1-channel HDMI embedded input, 1-channel SDI embedded input
Audio Output1 linear output, 1 HDMI embedded output
Network InterfaceRJ45 interface,  10M/100M/1000M, adaptive Ethernet port
USB1 USB3.0 interface,  can be connected to mobile hard disk or U disk;
1 USB2.0 interface, can be connected to the mouse
Rs2321 RS-232 interface
Video EncodingH.264 HP5.1/MP/BP,  code rate 128Kbps~40Mbps can be customized,
1~60 frames can be customized
Audio CompressionAAC encoding, audio   sampling rate 48kHz, code rate 16Kbps~256Kbps customizable
Encapsulation modeMP4
Supported ProtocolsSupport RTMP push stream, RTMP SERVER, RTSP, TCP stream, HTTP, FTP
Remote AccessBuilt-in WEBServer,  support remote browsing, configuration, upgrade
Hard Disk StorageBuilt-in 3.5-inch 2TB hard disk (standard), maximum optional 16T hard disk
Power InputAC100~240V
Power Consumption25W
Dimension (W×D×H)441×210×44mm
Product Weight1Kg
Operating Temperature-10~60
Working Humidity95%

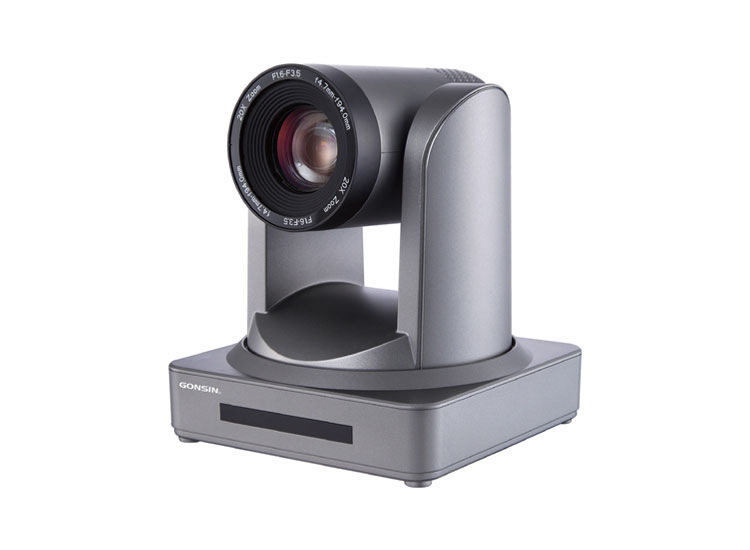

Information of HD Dome Automatic Follow Video Camera System GX-HD3320

Functions of HD Dome Automatic Follow Video Camera System GX-HD3320


  • Superb high-definition image: The smart auto-tracking wifi camera employs 1/2.8 inch high-quality CMOS sensor. Resolution is up to 1920x1080 with a frame rate of up to 60 fps

  • Audio Input Interface: Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding

  • Quiet PTZ: By adopting high accuracy step driving motor mechanism, the auto-tracking camera for video conferencing works extremely quiet and moves smoothly and very quickly to the designated position

  • Multi-Format Video Outputs: The video conference camera auto-tracking supports HDMI (DVI),3G SDI, wired LAN interfaces. The 3G-SDI is available for 100m transmission at 1080p60 format

  • Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness

  • The transparent transmission function of remote controller: Support transparent transmission function, make the supporting equipments easy to operate

  • Low-power sleep function: The auto motion tracking camera support low-power sleep/wake up, the consumption is lower than 500mW under sleep mode

  • Support Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized. Support VISCA control protocol through IP port

  • RS-232 cascade function: ST series support RS-232 cascade function which is convenient for installing

  • 255 presets positions: Up to 255 presets (10 presets by remoter)


Technical Specifications of HD Dome Automatic Follow Video Camera System GX-HD3320


Camera ParameterSensor1/2.8 inch high quality HD CMOS sensor
Effective Pixel16: 9 2.07 megapixel
Video Format1080P60/50/30/25/59.94/29.97; 1080I60/50/95.94
720P60/50/30/25 /59.94/29.97
Optical Zoom20X; f=4.7~94mm
AVF1.6~F3.5
View Angle2.9°(tele)-55.4°(wide)
Digital ZoomX10
Minimum Illumination0.5Lux(F1.8, AGC ON)
DNR2D & 3D DNR
White BalanceAuto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
FocusAuto/Manual
ApertureAuto/Manual
Electronic ShutterAuto/Manual
BLCON/OFF
WDROFF/ Dynamic level adjustment
Video AdjustmentBrightness,Color,Saturation,Contrast,Sharpness
SNR>55dB
Input/Output InterfaceVideo InterfacesHDMI, 3G-SDI, LAN
Control Signal Interface8 cores mini DIN; RS-232 Ring through RS232 output
Control ProtocolVISCA/Pelco-D/Pelco-P;Baud Rate: 11520/9600/4800/2400bps
Audio Input InterfaceDouble track 3.5mm linear input;
HD IP Interface100M IP port(100BASE-TX); Support Visca protocol control through IP port.
Compression FormatSupport H.264,H.264+ Video Compression;Support AAC/MP3/PCM Audio compression
Image Code StreamDual stream output
Network ProtocolRTSP/RTMP ONVIF GB/T28181
Power InterfaceHEC3800 outlet (DC12V)
PTZ ParameterPan Rotation±170°
Tilt Rotation-30°~+90°
Pan Control Speed0.1 ~60°/sec
Tilt Control Speed0.1 ~30°/sec
Preset SpeedPan: 60°/sec,Tilt: 30°/sec
Preset Number255 presets (10 presets by remote controller)
Other ParameterSupply AdapterAC110V-AC220V to DC12V/1.5A
Input VoltageDC12V±10%
Input Current1A(Max)
Consumption12W(Max)
Store Temperature-10°C~+60°C
Store Humidity20%-95%
Working Temperature-5°C~+45°C
Working Humidity20%-80%
Dimension150mm*150mm*167.5mm
Weight1.4kg
Operation EnvironmentIndoor
Remote Operation (IP)Remote Upgrade, Reboot and Reset
Accessorypower supply, RS232 control cable, remoter, manual

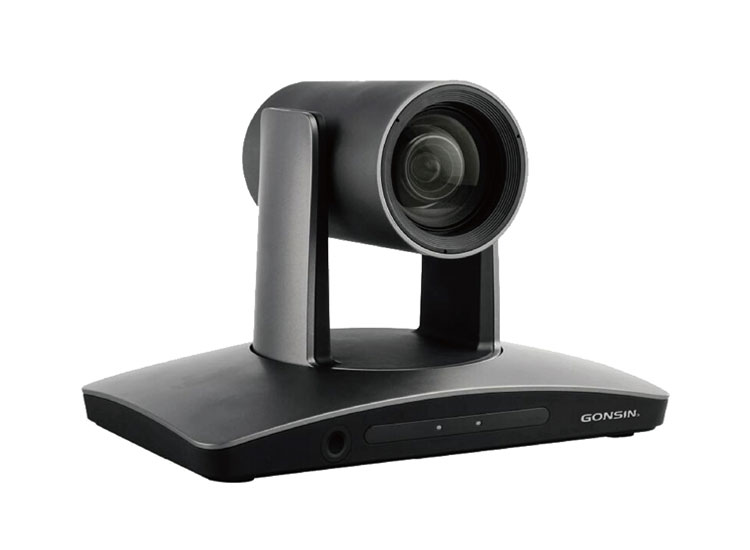

Information of HD Dome Auto Tracking Video Conference Camera GX-HD3330

Functions of HD Dome Auto Tracking Video Conference Camera GX-HD3330


  • With infrared mobile camera tracking function (need to match the conference terminal of the specified model), the self-tracking camera can realize the intelligent tracking and positioning of the terminal. The terminal can move freely within the infrared detection range, and it can track in real-time without resetting the preset position

  • Support automatic tracking switching of multiple camera domes, support up to 8 camera domes and support multi-camera cascade control

  • Adopt infrared anti-jamming algorithm, stable and reliable. Be fearless of visible light and infrared light (sunshine, light, whiteboard and etc.)

  • Accurate positioning and stable tracking. The tracking picture can be automatically zoomed according to the distance of the target, always keeping the best size

  • The tracking effect is not affected by the size and shape of the meeting room

  • Switching codes such as target occurrence and loss can be arbitrarily customized through the parameter setting interface and can be flexibly compatible with other conference equipment

  • Support high-definition video H.264 encoding output, output full HD video up to 1080P60, support main and auxiliary dual-stream

  • Multi-Format Video Outputs: support SDI, DVI-D, NETWORK, and USD 3.0 video output interface.

  • Maximum tracking distance can reach 18 meters


Technical Specifications of HD Dome Auto Tracking Video Conference Camera GX-HD3330


Sensor1/2.8 inches CMOS, 2.14 million sensor
focal distance3.9mm~46.8mm
AVF1.~F2.8
optical zoom12 times
digital zoom12 times
View Angle72.5°~6.3°
Focus SystemAuto / Manual/ PTZ/ One Push
Minimum Illumination0.5 Lux (colors), 0.1Lux (black and white)
Shutter Speed1/1 - 1/10,000 second
Tune-upAuto/Manual
White BalanceAuto / Indoor / Outdoor/ One Push
Auto / Manual tracking
Exposure ControlAuto / Manual/Shutter Priority/Aperture Priority
SNR≥50dB
LanguageENGLISH
Pan Rotation-170°~+170°
Tilt Rotation-30°~+90°
Pan Control Speed0.1°~120°/s
Tilt Control Speed0.1°~90°/s
Preset Number256
Pan-tilt control interfacesRS-232/RS-485/USB3.0
Network interface100M self-adapted to Ethernet interface(RJ45)
Network protocolPELCO-D, VISCA, UVC1.1
Video interface3G-SDI, DVI-D, USB3.0
Video format1080P60/1080P50/1080P30
1080P25/1080I60/1080I50
720P60/720P50
Resolution ratioMAX 1920*1080@60fps
Video compressionH.264
Audio compressionAAC
Network protocolONVIF/RTSP/HTTP/TCP
UDP/RTMP
Video Preview NumberMAX 10, at the same time
Dual-streamYES
PowerDC12V
Consumption<30W
Operating Temperature0~40°C
Storage Consumption-20~60°C
Dimensions (L*W*H)243mm×145mm×163mm
ColorGrey

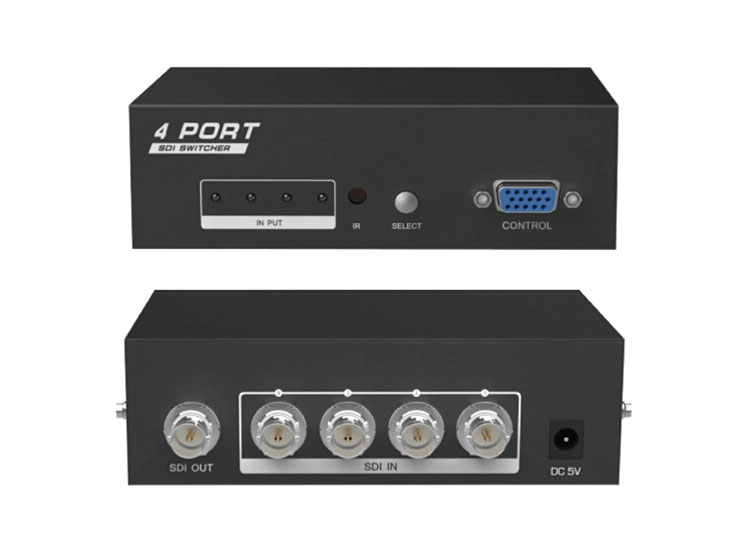

Information of HD Automated Camera Tracking System-SDI Switch GX-SDI0401M

Functions of HD Automated Camera Tracking System-SDI Switch GX-SDI0401M


  • Adopt RS232 control interface, work with digital conference system and high-definition 4k auto-tracking WIFI video conference camera

  • Support 4-channel HD SDI signal input, 1 channel HD SDI signal switch output

  • Realize the tracking switch of up to 4 channels of SDI HD auto tracking video conference camera

  • Automatically recognize full SDI signal format: SD-SDI/HD-SDI/3G-SDI

  • High definition, fast switching

  • Power supply with industrial-grade design, long-lasting and stable

  • Intelligent circuit design, broadcast-level processing technology


Technical Specifications of HD Automated Camera Tracking System-SDI Switch GX-SDI0401M


SDI signal formatSD-SDI/HD-SDI/3G-SDI
Support SDI rate143-2970Mb/s
SDI impedance75Ω
SDI signal output amplitude800mVp-p
SDI input resolution480i@60Hz/576i@50Hz/720P@50Hz/
720P@60Hz/1080i@50Hz/1080i@60Hz/
1080P@24@25@30@50@60Hz
SDI output resolution480i@60Hz/576i@50Hz/720P@50Hz/
720P@60Hz1080i@50Hz/1080i@60Hz/
1080P@24@25@30@50@60Hz
Power supplyStandard configuration: 5V1A
Overall power consumption<2W
Product size138×104×42mm

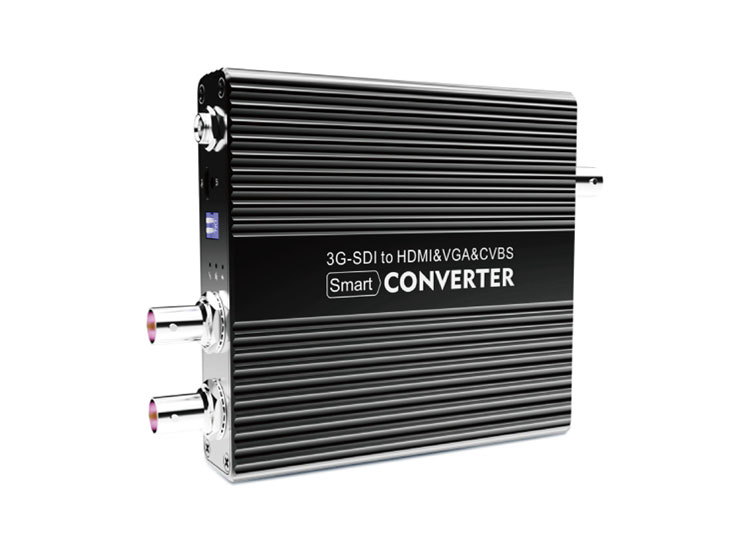

Information of SDI to HDMI Converter GX-CV180

Functions of SDI to HDMI Converter GX-CV180


  • SDI input formats: all formats are supported. SD: 525i @ 59.94Hz, 625i@ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59. 94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 3G: 1080p @ 50Hz / 59.94Hz / 60Hz

  • SMPTE standards supported: 259M-C, 292M, 424M, 425M level A and level B

  • One SDI loopout port

  • OSD and menu for operation interface

  • Autodetects HDMI EDID info for optimal source-to-screen communications

  • Supports symmetric conversion of all formats

  • Blue screen alarm for signal loss

  • Manual VGA output 720p/1080p resolution selection

  • SDI embedded audio conversion to HDMI output

  • AV(CVBS)signal output(PAL/NTSC optional)

  • Allows remote controller for selection of forced output mode


Technical Specifications of SDI to HDMI Converter GX-CV180


Input socket1×BNC SDI
Input signal typeSD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
Input resolutions supported525i 59.94, 625i 50
720p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
SDI signal range0.8Vp-p
SDI impedance75Ω
SDI coupling typeAC Coupling
SDI jitter (typical values)SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI
Max. input cable lengthBelden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 140m
Note: Cable length test result might be different according to cable types.
SDI loop output1×BNC SDI
HDMI output1×HDMI
AV(CVBS) output1×BNC
VGA output1×VGA
Frequency bandwidth165MHz / HDMI 1.3 standard compliant
Dimensions (mm)154*119*36 (W*D*H)
Power supply voltage5-24VDC

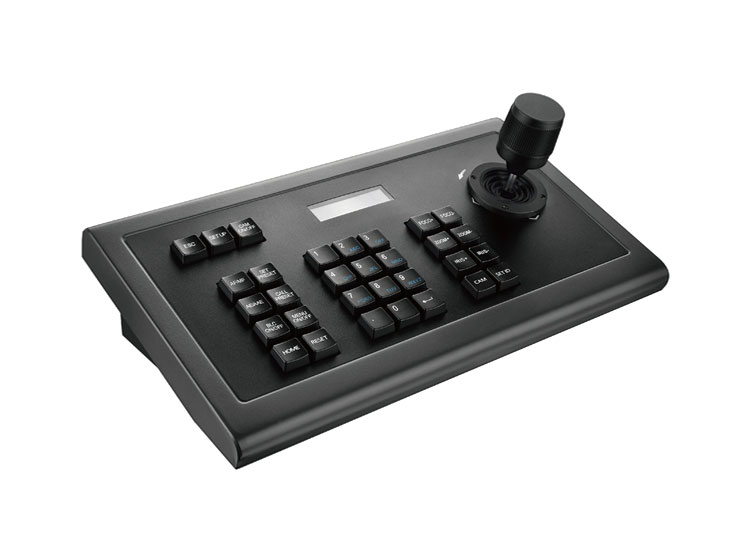

Functions of Speed Dome Controller GX-KB01


  • LCD display both Chinese/English menu, with voice prompt when pressing buttons

  • 3-axis joystick, adjust the speed of the camera or pan&tilt

  • 2 dimension button control, can accurate to the speed of every state

  • Support PELCO P, PELCO D,VISCA protocol

  • Can control the rotate, zoom, iris, focus and camera parameter setting of the camera or pan&tilt

  • Adopting RS-485, RS-422 and RS-232 multi-interface, maximally connect 256 PCS integrated high speed dome and camera

  • Maximal Communication distance: 1200m (0.5mm twisted-pair)

  • Metal shell, computer keyboard key design

  • Commonly use special function button for selection and definition

  • Real-time display of the working status of the decoder and matrix

  • The communication interface has a automatic recovery design for short-circuit and over-current protection


Technical Specifications of Speed Dome Controller GX-KB01


Communication methodRS-485 half duplex, RS-422 full duplex, RS232 full duplex
Communication rate1200/2400/4800/9600
InterfaceRJ45 network port, RS232 standard socket, binding post
Supply voltageDC12V
Power consumption5W
Display methodLCD
Working temperature-10~50℃
Working humidity10~90% (no condensation)
Protection levelIP50
Weight1.5Kg
Dimensions (L×W×H)271mm×181mm×54mm





Contact Us

Gonsin is here to offer you the customized solutions for conference audio and video system.

Please fill in the information truthfully so that we can contact you and provide services as soon as possible.



Related Products of Automatic Camera Tracking System
Delivering Trust & Value
You can
trust .
Copyright © Gonsin Conference Equipment Co., LTD. All Rights Reserved.
The information and specifications included are subject tochange without prior notice.
