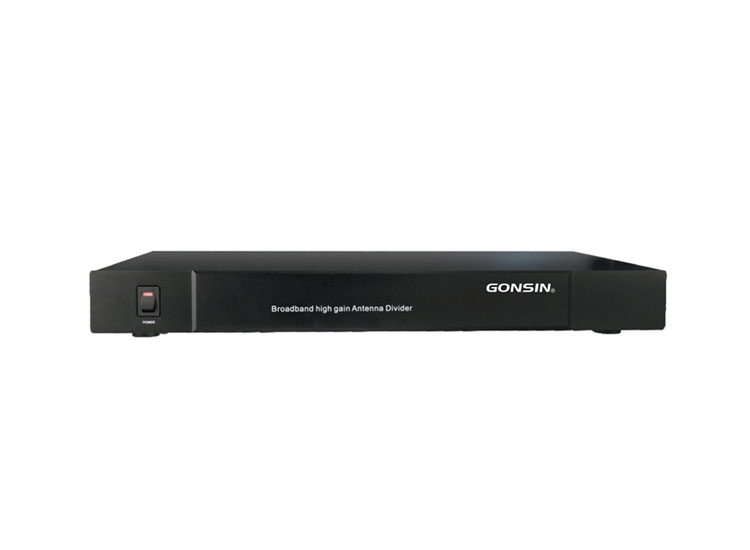

Signal Splitter GX-ANT201-X

Audio Signal Splitter
Audio Signal Splitter

Features of Signal Splitter GX-ANT201-X

  • Ultra-high dynamic low noise components and ultra-wideband microstrip line design, with ultra-low internal distortion and loss, eliminating the mixing interference when multi-channel receiving system is used at the same time

  • The antenna input connector has a power supply for the antenna amplifier, and can directly connect the extended antenna with the antenna amplifier and the antenna with the built-in amplifier

  • Carrier range is 500MHz~850MHz

  • It can provide four broadband multi-channel receivers to share a pair of antennas, and can also cascade a second distributor or broadband multi-channel receiver to simplify antenna assembly engineering

  • The splitter provides 4 channels DC12V power outputs to power 4 wireless receivers, simplifying cabinet installation

Technical Specifications of Signal Splitter GX-ANT201-X

Antenna Divider4-channel dual channel output
Frequency Range500MHz~850MHz
Input Truncation Point+15dBm
Output/Input gain+1.0dB±1dB
Output Isolation>18dB(500MHz~850MHz)
Output/Input Impedance50Ω
Antenna Output ConnectorTNC connector
Antenna Input Connector PowerDC8V, 250mA(max)(Antenna A, B input end)
Power Input12V~15V/5ADC
Power Output12V/1.2ADC(each channel)
Current Consumption(Single)Approx. 145mA
Dimensions(W*D*H)480*180*45mm
Net Weight1.8Kg
