Functions of FS-FHSS Wireless Translation System's Receiver

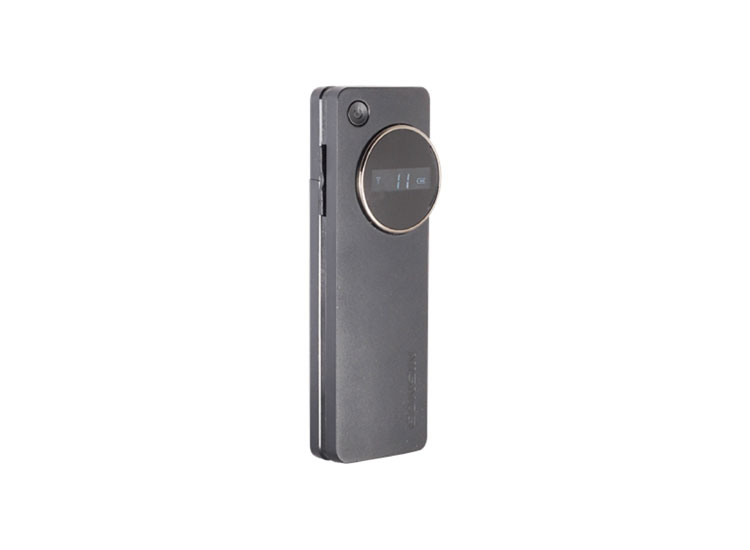

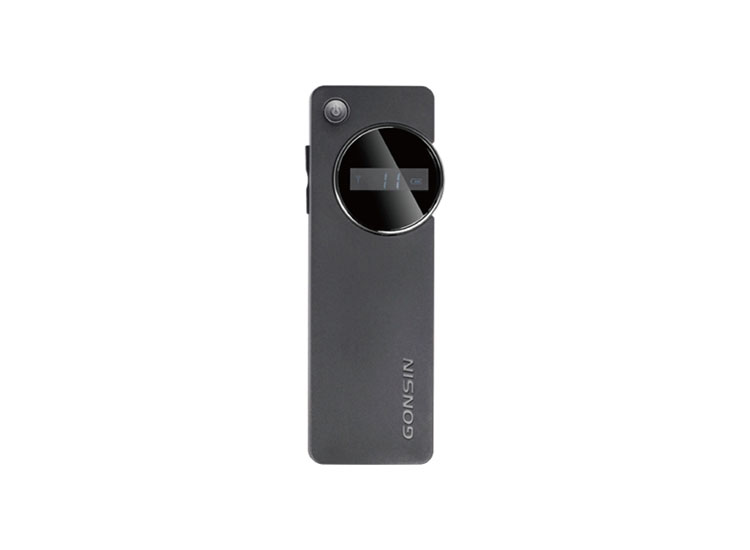

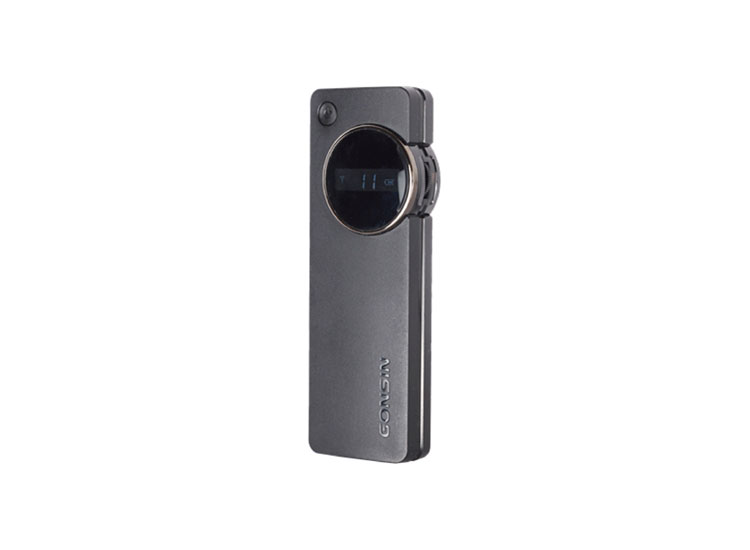

TC-FSJ04B/08B/12B/16B


  • GONSIN innovated FS-FHSS technology

  • CD-level sound quality

  • HOST ID setting by manually or automatic upgrading, support Auto-tracking by Host ID

  • Support up to 16 channels( max.1 floor+15 interpretation audio)

  • LED display, human-oriented human-machine interaction

  • Lithium battery/AAA battery

  • Real-time battery level detection and display, low battery alarm

  • Grouping (encryption) function; max number of groups: 255; no interference between the groups

  • Dynamic display of such information as signal strength, battery capacity, and selected channel on  the OLED screen

  • Signal received from all directions

  • Support unified shut-down function, reduce workload greatly

  • Lightweight receiver; in combination with a headphone to allow users to hear an interpreter

  • Max number of channels: 16; Four models optional:4/8/12/16 channels

  • Clear voice along different independent channels

  • Volume and audio channel is adjustable by key pressing

  • Low power consumption, allowing battery to consecutively run for 16 hours

  • Automatic turn-off function when no signal is receiving for 10 minutes, unified server shutdown  function;

  • Earphone detection, receivers will auto shut-down if without earphone after 2 minutes

  • Number of receivers within the signal coverage area is unlimited;

  • Allow users to move within the signal coverage area

  • Earphone (single- or double-side) and headphone for selection

  • Centralized charging by the charging case, 60 receivers can be charged by one charing case.

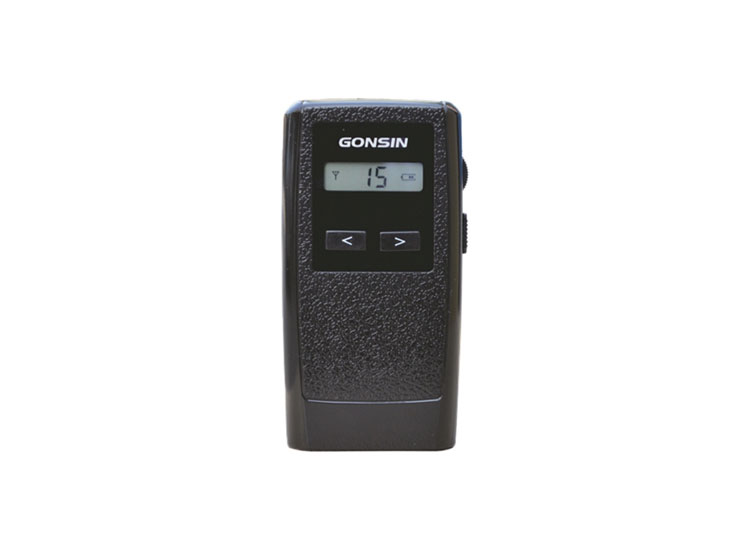

TC-RFJ04S/08S/12S/16S


  • Gonsin innovated FS-FHSS technology

  • CD-level sound quality

  • Grouping(encryption) function, no interference between groups

  • Dynamic display of sorts of information e.g. signal strength, battery capacity, and selected channel  on the LCD screen

  • Low power consumption, allowing battery to consecutively run for 16 hours

  • Chargable lithium battery(3.7V)

  • Signal received from all directions

  • Lightweight receiver; in combination with a headphone to allow users to hear interpretation

  • Audio channel selection by key pressing

  • Max number of channels: 16

  • Clear voice along different independent channels

  • Volume is adjustable

  • Number of receivers within the signal coverage area is unlimited

  • Allow users to move within the signal coverage area

  • Earphone (single- or double-side) and headphone for selection

  • Exquisite lanyard for hanging the receiver before your chest or inside your pocket


Technical Parameters of FS-FHSS Wireless Translation System's Receiver

TC-FSJ04B/08B/12B/16B


Modulation modeFS-FHSS technology
Frequency range2.4-2.5GHz
Encryption methodAES
System Max capacityUnlimited receivers within signal distance
Grouping functionup to 255 groups
Sensitivity-121dBm
Earphone jack3.5mm jack stereo
OLED screen35×10mm
Battery displayreal-time display, low power alarm
Batterylithium battery/2 AA batteries
Battery service time16 hours( different AA batteries have different results)
Packageportable aluminum case
Dimension( L×W×H)136×50×21mm
Weight136g (with a lithium batterty), 94g (without battery)
Working temperature0~45°C
Storage temperature-20~50°C


TC-RFJ04S/08S/12S/16S


Modulation modeFS-FHSS
Frequency range2.4-2.5GHz
Encryption modeAES
Grouping function255 groups
Headpone Jack3.5mm jack
Rechargable Li-ion battery3.7V lithium battery
Service time16 Hours
LCD screen30mm × 10mm
Dimension (H×W×D)100×52×18 mm
Weight0.1kg
Operating temperature0~45C°C
Storage temperature-20~50°C
Packagingaluminum portable box


Information on Wireless AP

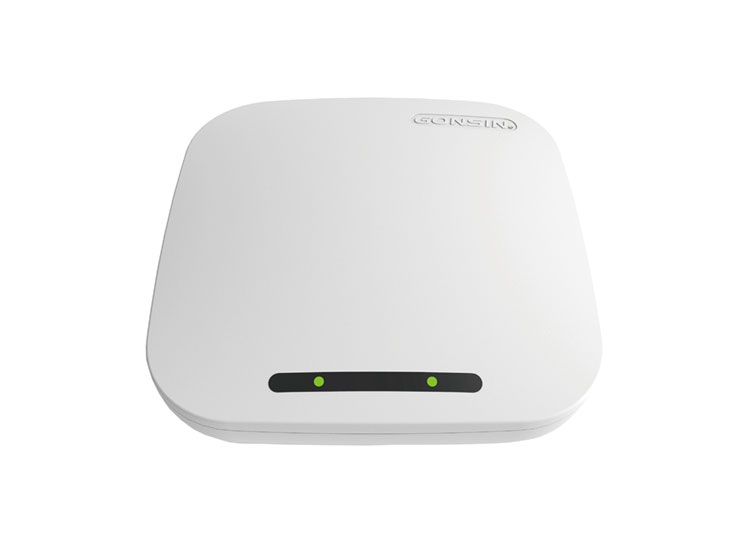

Functions of WAP-30I


  • Gonsin innovated FS-FHSS technology

  • Strong signal, stable communication

  • No interference if multiple systems are used at the same time

  • Wireless signal transmission within the simultaneous interpretation system

  • Indicator to show the working status

  • Power is supplied via the server

  • In support of wall mounting, racking installation, ceiling mounting, etc


Technical Parameters of WAP-30I


Frequency range2.4~2.5 GHz
InterfacesOne 6 pin cable interface to connect the server
One 6 pin cable to cascade the
simultaneous interpretation access point
Power supplyDC24V
Effective distance50~500m ( straight-line distance)
Dimension260×260×68mm
Weight1.2 kg
Working temperature0~45°C
Storage temperature-20~50°C


Information on Server of FS-FHSS Wireless Translation System

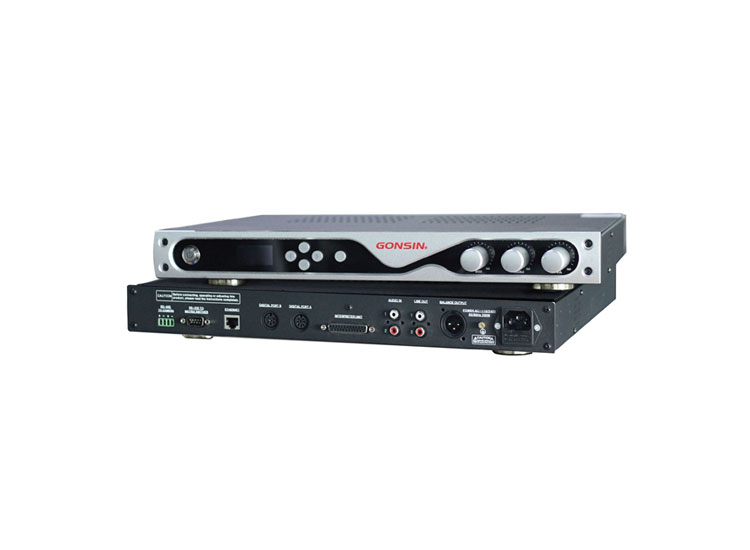

Functions of Server GONSIN30000I


  • FS-FHSS(Frequency Selecting - Frequency Hopping Spread Spectrum)innovated by GONSIN, stable and reliable system performance

  • High-efficient digital audio lossless compression technology improves wireless carrier utilization rate and avoids interference if multiple systems are used within the same building Dynamic display of operational information of the server with OLED display panel

  • Unified server shutdown function for headset receiver/conference terminal

  • Compact 1U rack design, simple deployment

  • Allows the server to auto-detect available 2.4GHz RF; when working with supporting software, the server adopts a reliable hopping mechanism to avoid co-channel interference.

  • Set Host ID of the server by the LCD panel for receiver grouping management.

  • The system is compatible with the terminal of digital interpreter and simulative interpreter, can fit with the chosen interpreter terminal in accordance with need of the user.

  • Unified server shutdown function for headset receiver/conference terminal. With DCS-3021 wireless conference terminal, GONSIN30000I server can realize functions below:

  • Support 8×1 SD /8×8 HD automatic camera tracking by video switching matrix

  • AUTO and FIFO microphone modes;

  • Max four microphones can be activated at the same time (1 chairman terminal and 1/2/3 delegate terminals);

  • Volume/tone adjustable;

  • ID number writing available, to facilitate terminal management.


Technical Specifications of Server GONSIN30000I


Max Capacity of SystemUnlimited simultaneous interpreter receivers( within signal distance); Max number of conference terminals: 500 ( within signal distance)
Frequency response30Hz~16KHz
Signal to noise ratio≥95 dB (A-weighting)
Distortion≤ 0.5% (total harmonic distortion: 50Hz~8KHz)
Max. audio outputLINE OUT: +20dBu
Interfaceseight-pin socket x 1 (for connecting to WAP device)
balanced audio output (XLR connector) x 1
non-balanced audio output (RCA connector) x 2
RJ-45 interface x 1 (for connecting to PC)
RS-232 interface x 1(for controlling camera tracking video matrix)
RS-485 bus interfaces x 1 group (for controlling cameras)
Power supplyAC110/220V±10%, 50~60Hz
Enclosure19-inch standard cabinet
Dimensions1U (340mm×420mm×45mm)
Weight4 kg
Working temperature0~45°C
Storage temperature-20~50°C


Information of Audio Converter

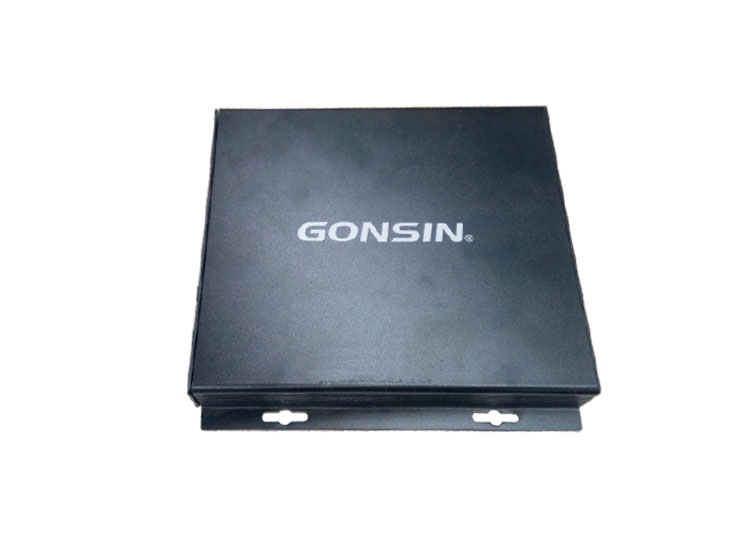

Functions of Audio Converter U-BOX08A/08B


  • High compatibility, realize the interconnection and communication between multiple simultaneous interpretation systems( including other brands) to form a large-scale system

  • Easy to extend, supporting output and input of simultaneous interpretation system

  • Flexible interface, supporting signal converting between DB25 audio interface and other interfaces

  • Connecting the interpreter console to a simultaneous interpretation server to realize interconnection among multiple simultaneous interpretation systems include GONSIN equipment and other brands'

  • 3 channels of DB25 audio interfaces and 8 channels of phoenix terminal interfaces, the signal is converted from different interfaces for compatible use

  • Support 8 channels of audio output to meet the demand of audio recording, press release, live video broadcast, and other applications

  • Support 8 channels of audio input, can be connected to the external line-in audio to realize interconnection among multiple simultaneous interpretation systems

  • Support DB25 cable hand-in-hand connection, to realize 16 channels of simultaneous interpretation


Technical Specifications of Audio Converter U-BOX08A/08B


Power supply24V, powered by the central control unit
Channel number8
Interfaces2 DB25 Male interfaces
1 DB25 Female interface
8 groups of phoenix terminals
Dimensions( L x W x H)200mm×185mm×30mm
Weight590g
Operating temperature0~45℃
Storage temperature-20~50℃


System Configuration of FS-FHSS Wireless Simultaneous Interpretation System


FS-FHSS Wireless Simultaneous Interpretation System

System Configuration Products of FS-FHSS Wireless Simultaneous Interpretation System
