With MP3 player
With high and low impedance switching function
With four-way marshalling function
Comes with reverse feed interface
Compact design, with cabinet mounting bracket (12/14 way) for cabinet installation
Comes with 99 modes of digital effector
60MM high-precision fader with dust-proof net
3-stage EQ with low cut filter and high efficiency
2 stereo AUX loopbacks with level control, and can send the signal to AUX1-2
Recorder input/output with separate switch, which distributes the signal to the control room and output
With high pass filter (low cut), cut-off point 75Hz-18dB/Oct
High-precision 12-segment output level indicator
With USB port, support computer recording and playback
Wide-voltage switching power supply design can meet the needs of global regions

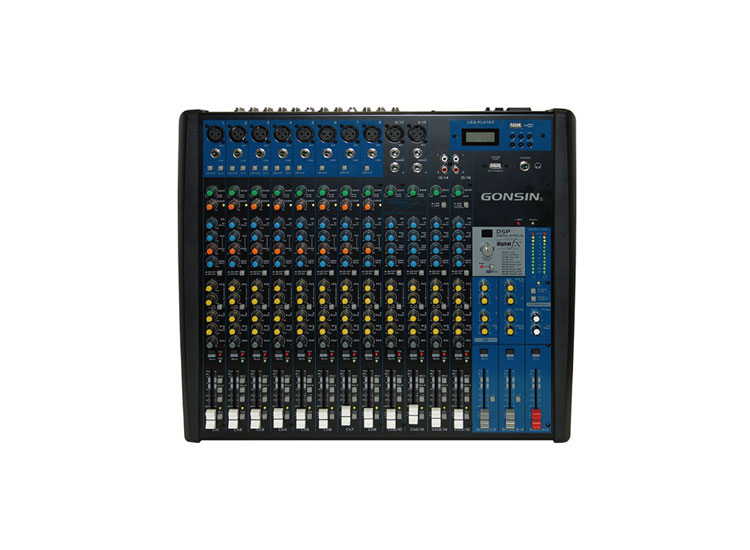

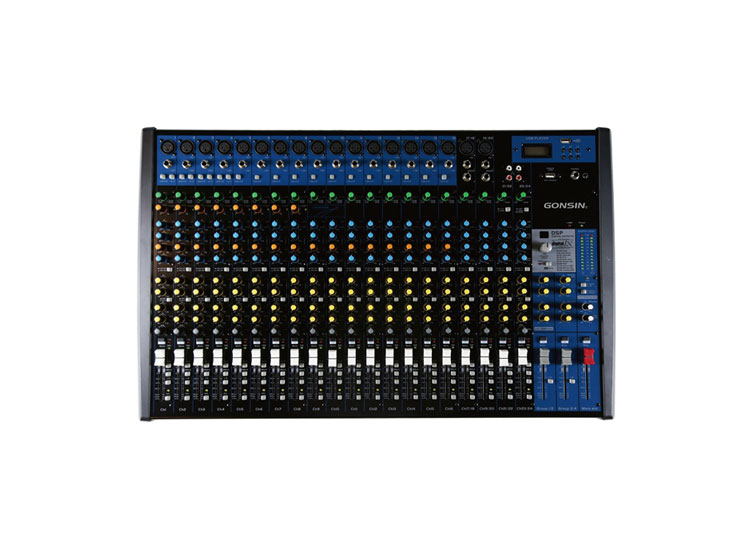

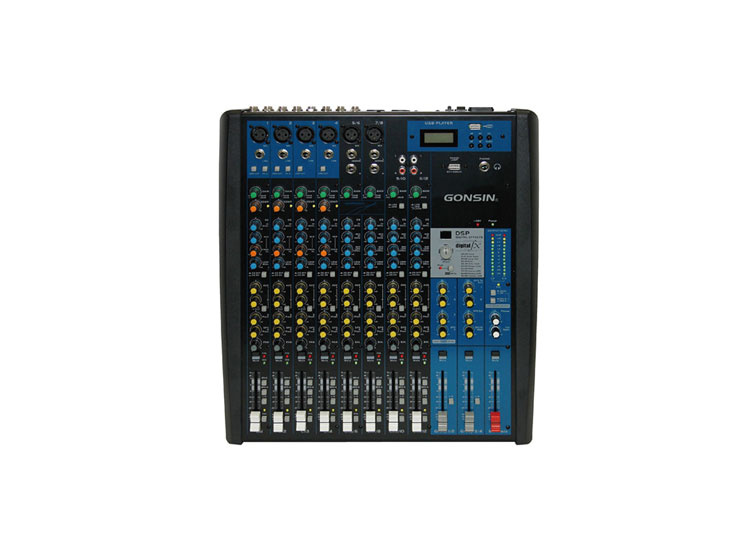

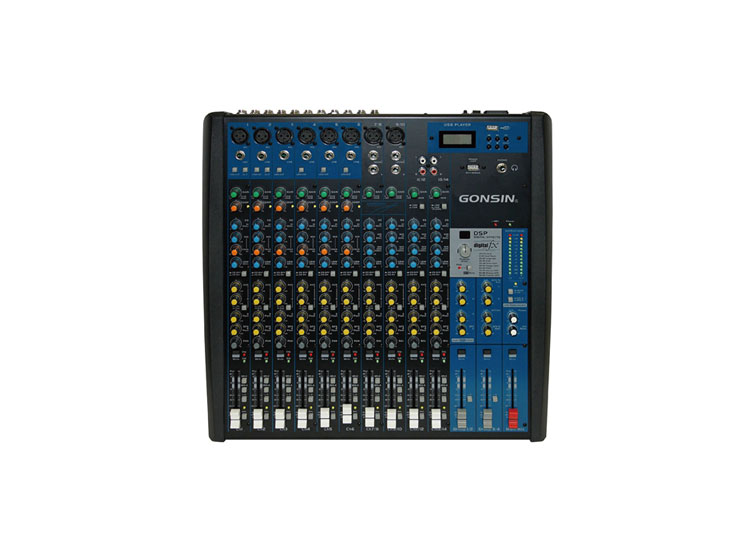

Product number | GX-MX1012-Z | GX-MX1014-Z | GX-MX1016-Z | GX-MX1024-Z |
Input | 4 balanced gold-plated MIC XLR/balanced linear inputs; | 6 balanced gold-plated MIC XLR/balanced linear inputs; | 8 balanced gold-plated MIC XLR/balanced linear inputs; | 16 balanced gold-plated MIC XLR/balanced linear inputs; |
2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input; | 2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input; | 2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input; | 2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input; | |
2 pairs of unbalanced lotus mouths | 2 pairs of unbalanced lotus mouths | 2 pairs of unbalanced lotus mouths | 2 pairs of unbalanced lotus mouths | |
XLR interface | With 48V phantom power | |||
Frequency Range | 10Hz~55KHz | |||
Total harmonic distortion | <0.03% @+0dBu | |||
Mono gain | 0~50 dB (MIC), balanced | |||
Stereo gain | +15~-35 dBu | |||
Noise | -100 dBu | |||
Sensitivity | 15 dB±3dB | |||
Crosstalk | -90 dB@1 kHz | |||
Equalizer (mono) | Treble: +/-15 dB@12 kHz | |||
Midrange: +/-15 dB@100Hz-3 kHz | ||||
Bass: +/-15 dB@80 Hz | ||||
Equalizer (stereo) | Treble: +/-15 dB@12 kHz | |||
Middle and high tone: +/-15 dB@3 kHz | ||||
Mid-bass: +/-15 dB@500Hz | ||||
Bass: +/-15 dB@80 Hz | ||||
DSP effects | D/A converter: 24bit | |||
Preset mode: 99 | ||||
Maximum output level: +22 dBu | ||||
Maximum input level: +30 dBu, Gain @+10 dB | ||||
Input resistance | Microphone: 2.6KΩ, balanced | |||
Stereo: 20KΩ, balanced | ||||
Auxiliary: 20KΩ, balanced | ||||
Recording: 24KΩ, balanced | ||||
Output impedance | Main output: 240Ω, balanced, 120Ω, unbalanced | |||
Auxiliary: 120Ω, balanced | ||||
Recording: 1KΩ, balanced | ||||
Headphone: 25Ω, balanced | ||||
Power Supply | 100-240 VAC, 50 Hz; 30W | 100-240 VAC, 50 Hz; 40W | ||
Dimension (D*W*H) | 431*388*86mm | 431*438*86mm | 431*493*86mm | 431*718*86mm |
Net weight | 4Kg | 4.5Kg | 6Kg | 8Kg |

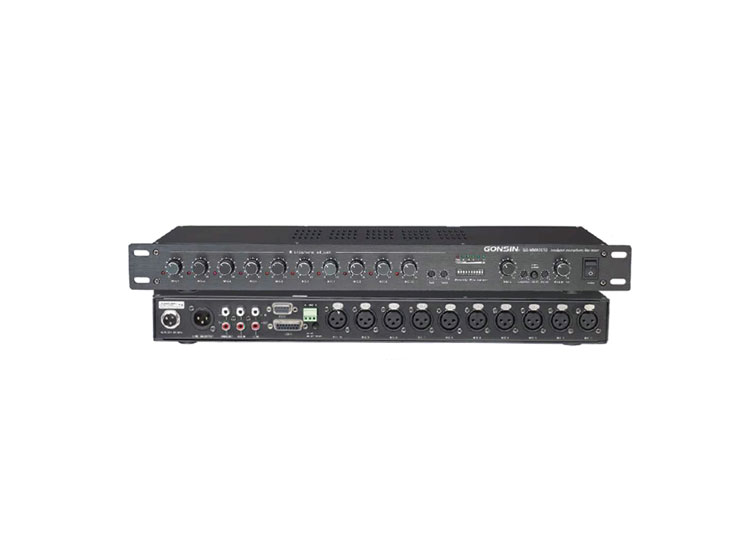

Support up to 10 channels microphone input
Built-in 48V phantom power, power switch in back panel; independent 48 phantom power switch for each channel
Treble and bass adjustment and gain control function
Every channel comes with auto voice-activated function, voice-activated level is adjusted by MANU which allows sound channel with signal input to be activated.
Auto compressor: the compressor can adjust main output level. When multiple mic are used, the compressor can avoid feedback casued by the increased gain.
Feedback suppress function: built-in digital frequency shifter, high fidelity, excellent feedback suppress function. The function can be turned on or switch by “SHIFT/BYPASS” in front control panel.
Built-ine mini computer, users can set the priority function freely by DIP switch in the front panel. The prior number is unlimited; When DIF is off, it means free discussion mode, 10 mic can speak freely; When DIF setting is on, the corresponding mic is on, the level of other mic is auto reduced by 40dB.
Cascade function, form multiple groups of mic conference system
A group of aux input for background music
Balanced output and a group of aux output
Built-in mini processor with RS232 port and RS485 port, RS232 port is for setting and communication( two-way)
It comes with logic output, 10-digit logic output, 5V high level output when it is activated
External dual 17V power transformer( 16W220V)
Input Impedance | Mic input | 4KΩ |
Cable input | 30KΩ | |
Cascade input | 20KΩ | |
AUX input | 30KΩ | |
Output impedance | Balanced output | 200Ω |
Unbalanced output | 400Ω | |
Max input level | Mic input | -24dBV |
Cable input | +30dBV | |
AUX input | +17dBV | |
Other | Max gain | 73dB |
Frequency response | 30Hz-28KHz | |
Input noise | -124dBV | |
Mic input attenuation | 50dB | |
Phantom power | +48VDC | |
Power supply | 15V/DC/500MA |
Adopt quad-core 1.4G high-performance ARM processor, the linux system is stable and efficient, and it can be started quickly after power-on
Adopt 24-bit/48kHz sampling rate
With powerful DSP processing capabilities, the input channel has digital gain, 6-channel gain-sharing automatic mixing, supports 100 preset 4-band parameter equalization, noise gate, feedback suppressor (10 channels), high and low pass, compression, Inverting function, each output channel has support for 100 preset 8-band parameter equalization, high and low pass, compression, inversion, and delay functions
With matrix mixing, 4 digital effects, 2 DCA input group function
Built-in sine wave, pink noise, white noise signal generator, convenient for system debugging
DSP has programming, saving, loading and copying functions, supports 100 scenes, and can be exported to an external storage device for storage backup
The PEQ of the input channel supports 100 pre-stored scene presets, supports loading, recalling, importing and exporting
Support channel parameter copy function, the same channel can quickly copy data
With panel lock buttons to prevent misoperation on site
It has 6 balanced XLR microphone inputs/6.35 line inputs, through the digital gain speech amplifier channel, can effectively prevent misoperation, has extremely low noise and wide gain control range, supports +48V phantom power
With 4 RCA inputs, 1 optical fiber input, and 1 coaxial input
Each channel can be assigned to Main, BUS1-4 output
With 1 set of main L/R mixing output, 4 auxiliary outputs, 1 headphone output
Equipped with USB interface, support U disk connection, realize USB recording and playback functions
The USB player supports APE, FLAC, MP3, WAV lossless audio formats, and supports Chinese song names
USB supports mouse connection to realize mouse control
Support optional WIFI hotspot to realize wireless control
Equipped with 11 100mm precision motor faders, with a good operating experience
The device comes with a 7-inch large color LCD touch screen, 1024×600 resolution
Support RS-232, TCP/IP control protocol, support WINDOW\IOS software control, real-time data synchronization
Support simultaneous control of 8 terminals
Support the optional dual digital mixer synchronization backup function, the standby mixer can synchronize the status of the main mixer in real time, and the main and standby switching time is less than 0.2 seconds
With Chinese and English operation interface, switching does not need to restart the device
Wide-voltage switching power supply design can meet the needs of global areas
Analog input | 6CH (MIC/Line)+4CH(RCA) |
Digital input | 1CH(SPDIF IN)+1CH(OPTICAL) |
Analog output | L/R+4BUS+Headphone(L/R) |
Digital output | AES EBU |
Frequency response | 20Hz-20kHz ±0.3dB |
THD+N distortion | 0.005% @4dBu 20~20kHz |
Signal-to-noise ratio | 106dB without weighting |
Dynamic Range | 106dB without weighting |
Noise floor | -89dBu without weighting (output fader 0dBu) |
Maximum input level | 18dBu (6.2Vrms) balanced |
Maximum output level | 18dBu (6.2Vrms) Balanced |
Effector | 4 effector buses (6 preset effect parameters, 24 user storage) |
Feedback suppressor | 10 independent feedback suppressors |
Display screen | Main display: 7-inch LCD screen,1024x600,resistive touch |
System | Quad-core 1.4G high-performance ARM processor,Linux system |
USB | Recording and playback (play format APE, FLAC, MP3, WAV), support USB mouse |
Electric fader | 11 (1 L/R main channel fader, 10 channel faders) |
Control protocol | RS-232, TCP/IP |
powered by | AC 100V-240V; 50/60Hz 55W |
net weight | 8kg |
Gross weight | 11kg |
Product Size | 430x430x146mm (W×D×H) |
Package dimensions | 540x610×285mm (carton) |
Adopt quad-core 1.4G high-performance ARM processor, the linux system is stable and efficient, and it can be started quickly after power on;
Adopt 24-bit/48kHz sampling rate
With powerful DSP processing capabilities, the input channel has digital gain, 14-channel gain sharing type automatic mixing, supports 100 preset 4-band parameter equalization, noise gate, feedback suppressor (14 channels), high and low pass, compression , Inverting function, each output channel has support for 100 preset 8-band parameter equalization, high and low pass, compression, inversion, and delay functions
With matrix mixing, 2 digital effectors, 2 DCA input group functions
Built-in sine wave, pink noise, white noise signal generator, convenient for system debugging
DSP has programming, saving, loading and copying functions, supports 100 scenes, and can be exported to an external storage device for storage backup
The PEQ of the input channel supports 100 pre-stored scene presets, supports loading, recalling, importing and exporting
Support channel parameter copy function, the same channel can quickly copy data
With panel lock button to prevent misoperation on site
It has 14 balanced XLR microphone inputs/6.35 line inputs, through the digital gain amplifier channel, can effectively prevent misoperation, has extremely low noise and wide gain control range, supports +48V phantom power
With 2 6.35 line inputs
Each channel can be assigned to Main, BUS1-6, AUX1-2 output
With 1 set of main L/R mixing output, 6 BUS output, 2 AUX output, 1 headphone output
Equipped with USB interface, support U disk connection, realize USB recording and playback functions
The USB player supports APE, FLAC, MP3, WAV lossless audio formats, and supports Chinese song names
USB supports mouse connection to realize mouse control
Support optional WIFI hotspot to realize wireless control
Equipped with 13 100mm precision motor faders, with a good operating experience
The device comes with a 7-inch large color LCD touch screen, 1024×600 resolution;
Support RS-232, TCP/IP control protocol, support WINDOW\IOS software control, real-time data synchronization
Support simultaneous control of 8 terminals
Support the optional dual digital mixer synchronization backup function, the standby mixer can synchronize the status of the main mixer in real time, and the main and standby switching time is less than 0.2 seconds.
With Chinese and English operation interface, switching does not need to restart the device
Wide-voltage switching power supply design can meet the needs of global regions
Analog input | 14CH (MIC/Line)+2CH(Line) |
Digital input | 1CH(SPDIF IN)+1CH(OPTICAL) |
Analog output | L/R+6BUS+2AUX+Headphone(L/R) |
Digital output | AES EBU |
Frequency response | 20Hz-20kHz ±0.3dB |
THD+N distortion | 0.005% @4dBu 20~20kHz |
Signal-to-noise ratio | 108dB no memory right |
Dynamic Range | 108dB no record |
Noise floor | -90dBu without weighting (output fader 0dBu) |
Maximum input level | 18dBu (6.2Vrms) balanced |
Maximum output level | 18dBu (6.2Vrms) balanced |
Effector | 2 effector buses (6 preset effect parameters, 24 user storage) |
Feedback suppressor | 14 independent feedback suppressors |
Display screen | Main display: 7-inch LCD screen,1024x600,resistive touch |
System | Quad-core 1.4G high-performance ARM processor,Linux system |
USB | Recording and playback (play format APE, FLAC, MP3, WAV), support USB mouse |
Electric fader | 13 (1 L/R main channel fader, 12 channel faders) |
Control protocol | RS-232, TCP/IP |
powered by | AC 100V-240V; 50/60Hz 55W |
net weight | 10.7kg |
Gross weight | 14.9kg |
Product Size | 535×485×205mm (W×D×H) |
Package dimensions | 635×580×335mm (carton) |

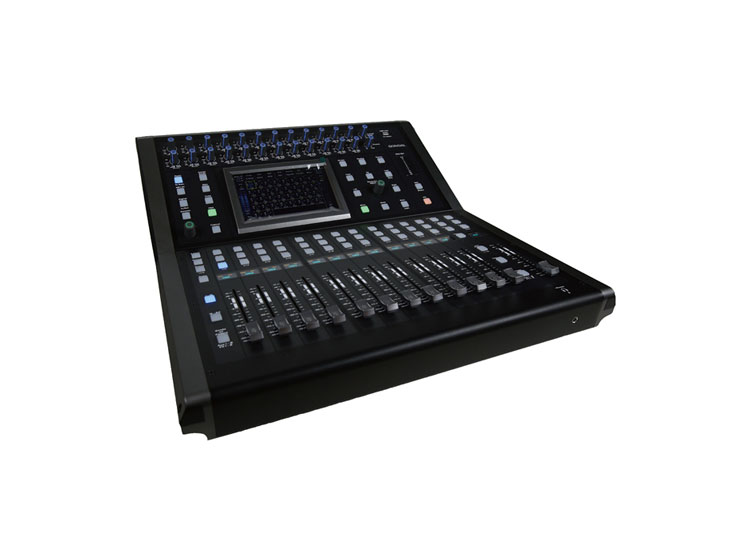

Adopt quad-core 1.4G high-performance ARM processor, the linux system is stable and efficient, and it can be started quickly after power on;
Adopt 24-bit/48kHz sampling rate
With powerful DSP processing capabilities, the input channel has digital gain, 16-channel gain- sharing automatic mixing, supports 100 preset 4-band parameter equalization, noise gate, feedback suppressor (16 channels), high and low pass, compression , Inverting function, each output channel has support for 100 preset 8-band parameter equalization, high and low pass, compression, inversion, and delay functions
With matrix mixing, digital effector, DCA input grouping function
Built-in sine wave, pink noise, white noise signal generator, convenient for system debugging
DSP has programming, saving, loading and copying functions, supports 100 scenes, and can be exported to an external storage device for storage backup ◆ The PEQ of the input channel supports 100 pre-stored scene presets, supports loading, recalling, importing and exporting
Support channel parameter copy function, the same channel can quickly copy data
With panel lock button to prevent misoperation on site
It has 24/32 channels with balanced XLR microphone input, through the digital gain amplifier channel, can effectively prevent misoperation, has extremely low noise and wide gain control range, supports +48V phantom power
Each channel can be assigned to Main, BUS1-10 output
With 1 set of main L/R mixing output, 10 auxiliary outputs, 1 headphone output
Equipped with USB interface, support U disk connection, realize USB recording and playback functions
The USB player supports APE, FLAC, MP3, WAV lossless audio formats, and supports Chinese song names
USB supports mouse connection to realize mouse control
Equipped with 17 100mm precision motor faders, with a good operating experience
The fader channel is equipped with a 1.3-inch LCD display, which supports custom display of the channel name
The device comes with a 10.1-inch large color LCD touch screen with a resolution of 1280×800
Support RS-232, TCP/IP control protocol, support WINDOW\IOS software control, real-time data synchronization
Support simultaneous control of 8 terminals
With Chinese and English operation interface, switching does not need to restart the device
Wide-voltage switching power supply design can meet the needs of global regions.
Support customized flight case packaging
Model | GX-MX2024B-D | GX-MX2032B-D |
Analog input | 24CH ( MIC/Line) | 32CH ( MIC/Line ) |
Analog output | L/R+10BUS+Headphone(L/R) | |
Frequency response | 20Hz 20kHz ±0.3dB | |
THD+N distortion | 0.005% @4dBu 20 20kHz | |
Signal-to-noise ratio | 108dB without weight | |
Dynamic Range | 108dB without weight | |
Noise floor | -90dBu without weighting (output fader 0dBu) | |
Maximum input level | Balanced 20dBu | |
Maximum output level | Balanced 20dBu | |
Effector | 2 effector buses (6 preset effect parameters, 24 user storage) | |
Feedback suppressor | 16 independent feedback suppressors | |
Display screen | Main display: 10.1-inch LCD screen, 1280×800, resistive touch; channel display: 1.3-inch LCD screen | |
System | Quad-core 1.4G high-performance ARM processor, Linux system | |
USB | Recording and playback (play format APE, FLAC, MP3, WAV), support USB mouse | |
Electric fader | 17 (1 L/R main channel fader, 16 channel faders) | |
Control protocol | RS-232, TCP/IP | |
powered by | AC 100V-240V; 50/60Hz 155W | |
net weight | 22.1kg | |
Gross weight | 26.5kg (carton) | 39.5kg (flight case) |
Product Size | 610×650×230mm (W×D×H) | |
Package dimensions | 758×735×350mm (carton) | 800×710×350mm (flight case) |
Gonsin is here to offer you the customized solutions for conference audio and video system.
