Products

Column Speaker

The column speakers are equipped with multiple speaker units, which are arranged in slender and vertical cabinets at precisely designed angles. The advanced plane wave technology is used to make the sound waves emitted by it spread to the distance and both sides, reducing the vertical transmission, making the projection distance is farther, the sound field is wider and uniform, and it has good high-frequency penetration and delicacy, and has a good vocal effect, which effectively solves the problems of poor hearing such as low language definition and turbid timbre caused by a long time of the sound field environment. The cabinet is made of high-quality CNC machined, and the internal structure is strengthened to make it more durable. The surface of the cabinet is sprayed with black wear-resistant and environment-friendly water-based paint, with a high-grade and generous appearance. The appearance design of the passive column speakers is simple and generous, which can be better applied to the venue.


Column Loudspeaker
Column Line Array Speakers
Column Line Array
Column Array Speakers
Column Array Speakers
Column Line Array
Column Loudspeaker
Column Line Array Speakers
Column Line Array
Column Array Speakers
Column Array Speakers
Column Line Array

Technical Specifications of GX-SP1043E-A/GX-SP1083E-A/GX-SP1066E-A

ModelGX-SP1043E-AGX-SP1083E-AGX-SP1066E-A
Type4-unit closed full range
speaker
8-unit closed full range
speaker
8-unit four way inverted
speaker
Drivers4× 3 ”8× 3 ”MF,LF: 6 × 6.5 ” neodymium magnet
HF: 2 × 1.4 ” neodymium magnet
Frequency response130Hz~18kHz130Hz~18kHz80Hz~20kHz
Sensitivity (1W/1m)96dB99dB100dB
Rated power/peak power130W/520W250W/500W600W/1200W
MAX SPL117dB@130W/
123dB@520W
123dB@250W/
126dB@500W
128dB@600W/
131dB@1200W
Dispersion (H×V)8 Ω4 Ω4 Ω
Impedance90°×30°100°×30°100°×(30°~40°)
Vertical directivity 10 ° adjustable
Connector1×NL4MP speakon ? PIN1+/2+,PIN1-/2-?1×NL4MP speakon
? PIN1+/2+,PIN1-/2-?
1×2PIN terminal
Product Size (W×D×H) (mm)115×135×419mm115×135×755mm191×220.5×1369.7mm
Package Size (W×D×H) (mm)185×205×495mm185×205×830mm270×290×1430mm
Net Weight4.7kg6.9kg19.55kg
Gross Weight6.2kg8.4kg22kg
ColorBlack water-based paint
Hanger/Installation deviceWall-mounted universal stand (optional),
35mm bottom hole of stand, support wall-
mounted and stand installation
Wall-mounted universal stand
(optional), support wall-mounted
installationinstallation


Applications of GX-SP1043E-A/GX-SP1083E-A/GX-SP1066E-A

  • Conference room

  • Multifunctional hall

  • Command center

  • Church

  • Electric classroom

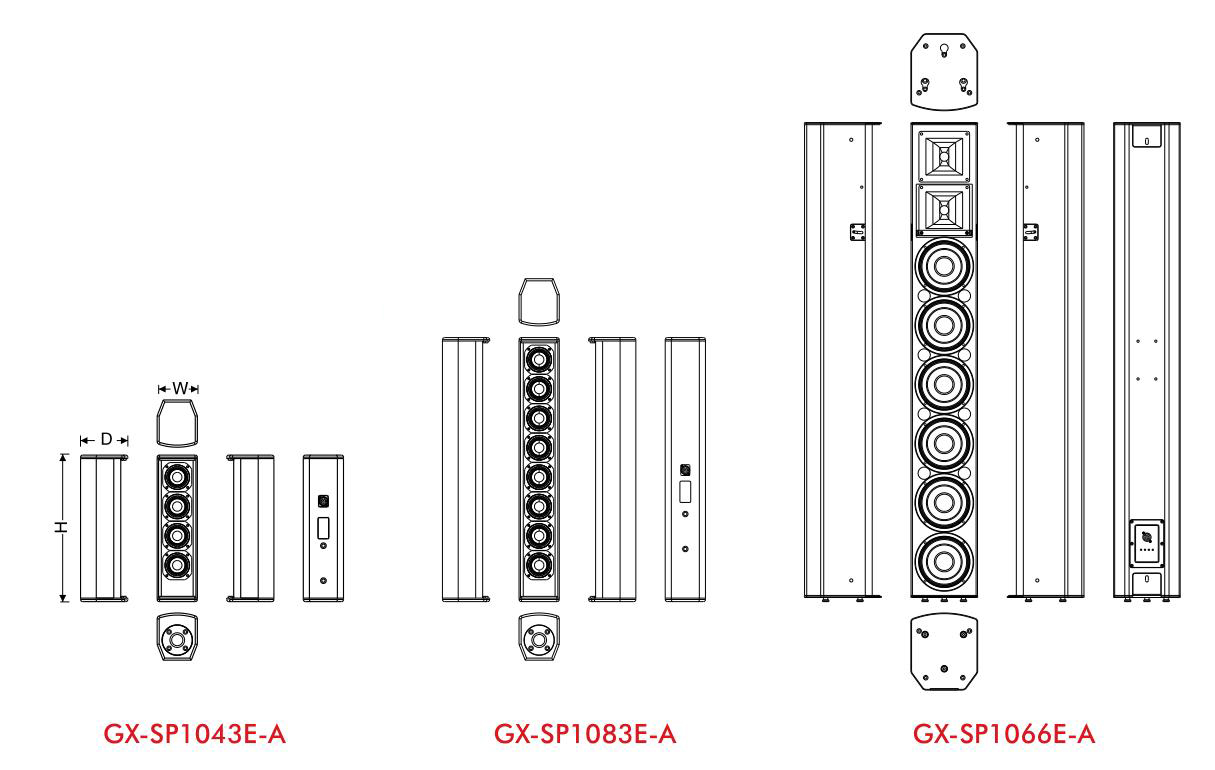

Product Drawing of GX-SP1043E-A/GX-SP1083E-A/GX-SP1066E-A

Meeting Room Sound System

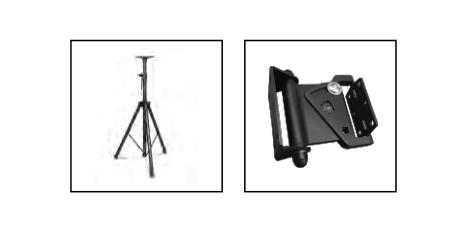

Accessories of GX-SP1043E-A/GX-SP1083E-A/GX-SP1066E-A

Audio Conference System



PA Column Speaker Sound System Features

GX-SP1004/GX-SP1005 Column PA Speaker System

  • PA Column Line Array Speaker box, the exquisite internal structure makes the sound more powerful

  • Plane-wave technology, reduce reflected sound and feedback

  • Utilize bottom guide hole to strengthen low and medium frequency, makes voice make clear


GX-SP1004A-Z/GX-SP1005A-Z Column PA Speaker System

  • PA Column Line Array Speaker Cabinet, exquisite internal structure makes the sound more powerful

  • Plane-wave technology, reduce reflected sound and feedback

  • The box speaker line array is small in shape, easy to hide and install

  • With constant resistance and the constant pressure of connection modes

  • with universal wall mounting bracket

Column Line Array Speaker Technical Specifications

Technical Specifications of GX-SP1004/GX-SP1005 Colum Line Array Speaker

ModelGX-SP1004GX-SP1005
Speaker4*4"Full Frequency(0.8"voice coil)8*4"Full Frequency(0.8"voice coil)
Rate Power100W200W
Music Power200W400W
Power Peak400W800W
Frequency Response100Hz~20KHz
Sensitivity(1W/1m)96dB99dB
Calculated Output(MAX)118dB SPL, 121dB SPL peak124dB SPL, 127dB SPL peak
Nominal Impedance8 Ohm4 Ohm
ConnectorRed and black terminal pillars
Horn Coverage80° (horizontal)
Crossover Frequency200Hz,24dB/OCT
Box structurepallet, black paint spraying
Dimension (W*D*H)135*127*445mm135*127*805mm
Package size(W*D*H)245*235*550mm245*235*920mm
Net weight4.2Kg7.6Kg
Gross Weight5.5Kg8.5Kg


Technical Specifications of GX-SP1004A-Z/GX-SP1005A-Z Colum Line Array Speaker

Product modelGX-SP1004A-ZGX-SP1005A-Z
TypePassive two-way full-range column speaker
Drivers4*3”8*3”
Frequency response180Hz~18KHz180Hz~18KHz
Sensitivity(1W/1m)93dB95dB
Power100W/180W180W/340W
MAX SPL114dB116dB
Impedance8Ω/70V/100V4Ω/70V/100V
Coverage angle(H*V)130°*24°
Connector1*Phoenix
Product Size(W*D*H)98*130*378mm98*130*730mm
Package Size(W*D*H)235*178*633mm235*178*985mm
Net Weight5.4Kg7.5Kg
Gross Weight6.2KG9.7KG
ColorBlack (white can be customized)
HangerUniversal wall mounting bracket


Technical Specifications of GX-SP1025D-A/GX-SP1006D-A/GX-SP1008D-A/GX-SP1010D-A


ModelGX-SP1025D-AGX-SP1006D-AGX-SP1008D-AGX-SP1010D-A
Type3-unit two way
inverted speaker
2-unit two way inverted speaker
DriversLF: 2×5.5”
HF: 1×1”
LF: 1×6.5”
HF: 1×1”
LF: 1×8”
HF: 1×1.4”
LF: 1×10”
HF: 1×1.7”
Frequency response90Hz~20kHz80Hz~20kHz80Hz~20kHz65Hz~20kHz
Sensitivity (1W/1m)98dB96dB97dB97dB
Rated power/peak power150W/600W100W/400W250W /1000W350W/1400W
MAX SPL120dB@150W/
123dB@300W
116dB@100W/
119dB@200W
121dB@250W/
124dB@500W
122dB@350W/
125dB@700W
Dispersion (H×V)90°×90°90°×90°100°×60°90°×70°
Impedance
Connector4-position crimping terminal
Product Size (W×D×H) (mm)161×170×415mm190×200×310mm232×240×440mm275×280×520mm
Package Size (W×D×H) (mm)240×230×495mm270×260×390mm310×302×520mm350×345×600mm
Net Weight7.5kg5kg9kg12.5kg
Gross Weight9kg6.5kg10.5kg14kg
ColorBlack, other colors on request
Hanger/Installation deviceU-shaped wall-mounted stand, wall-mounted installation


The column speaker is generally suitable for small conference rooms, video conference rooms and departmental conference rooms.

Sound Column Speakers Applications

The column speaker is generally suitable for small conference rooms, video conference rooms and departmental conference rooms.
