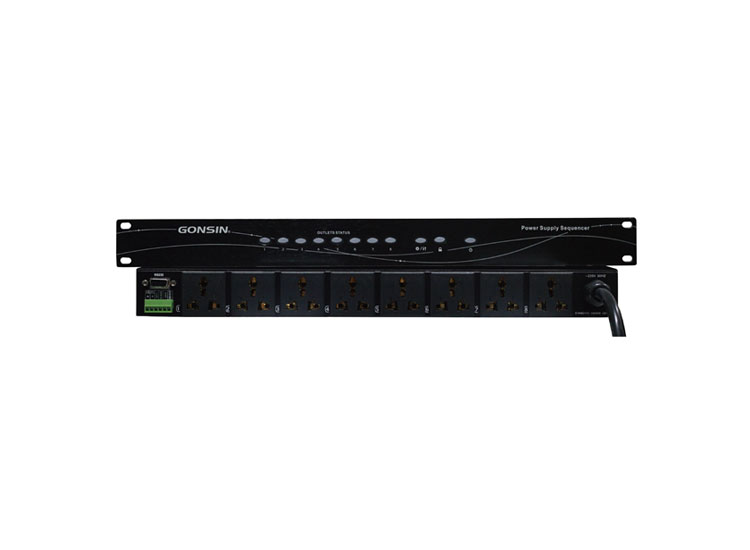

Power Supply Sequencer GX-PS108-C

Power Supply Sequencer
Power Supply Sequencer

Functions of Power Supply Sequencer GX-PS108-C

  • Learning function, connect to any device and record the user operation habit

  • Come with PC software for scene control ansd setting on/off procedure

  • Independent switch and status indicator for each channel

  • Keyboard code lock to avoid mis-operation

  • Intelligent design with RS485 and 232 interfaces. Open control protocol for third party control equipment

  • DC12V output, I/O level control, closure contact control, cascading output

Technical Specifications of Power Supply Sequencer GX-PS108-C

PowerAC110/220V±10 50/60Hz
Max Current50A
OutputChannel 1-8, Max current: 16A, All-purpose socket;
Dashboard controlIndependent control button for 8 channels, Set button, KEYLOCK button, ON/OFF button
Control InterfaceRS485 series port; DC 5 24v voltage interface
FunctionAction learning programming, one channel key control, RS485 series control
Software functionParameter setting, timed programming, real-time control and monitor
Dimensions(W*D*H)482mm*180mm*44mm
Weight4Kg
