GONSIN Audio and Visual System Design for Lecture Halls: Key Elements to Empower Conferences

Sep 24-2024

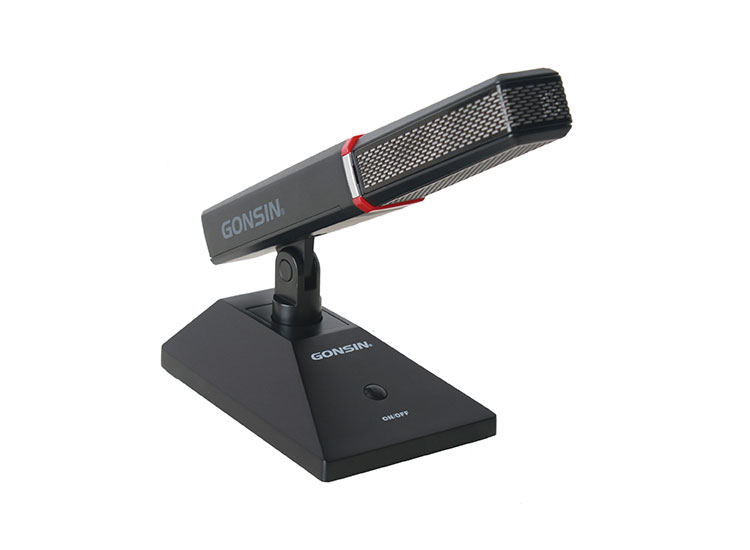

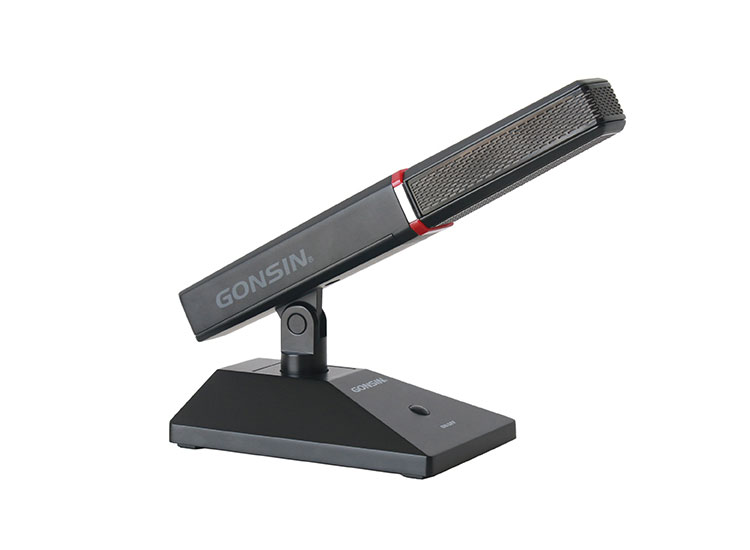

Leaders Series Rectangular Columnar Short Microphone MIC-240B

Conference Mic
Conference Hall Microphones
Conference Mic
Conference Hall Microphones
Get A Quote
Features
Technical Indicators

Features of Leaders Series Rectangular Columnar Short Microphone MIC-240B

  • Full metal microphone pedestal plus rectangular column microphone stem, simple and elegant

  • 14 mm diameter gilded capacitance microphone with cardioid directed electred, can deliver clear sound effect

  • Built-in windproof cotton, optimizing the structure design of the acoustic chamber, and bringing better sound quality

  • Adjustable microphone angle, convenient for collecting the sound

  • Highly resistant to mobile phone interference

  • Black full metal pedestal covered by low-reflectance and grinding coatings

  • Stable and thick pedestal with shock-proof insulating rubber pad, effectively reducing friction vibration and mechanical noise on the installation surface

  • 3-pin nickel-plated XLR male socket on the back of the pedestal serves as the output terminal of audio signal.

  • Microphone supports 48V phantom power supply

  • With one soft-touch button to turn on /off, silent and comfortable when touching; button life is more than 100000 times

  • This is conference room microphone system suitable for conference, lecture, teaching and other occasions.

  • It can co-work directly with audio processor or mixer.

Technical Indicators of Leaders Series Rectangular Columnar Short Microphone MIC-240B

Radio Headφ14 gilded capacitance
Polar PatternCardioid, directivity
Frequency Response20Hz~20KHz
Sensitivity-46 dBV/Pa
Input Impedance2KΩ
Directivity0°/135°:> 20 dB (1 kHz) ,0°/180°:> 15 dB (1 kHz)
Off MIC Attenuation55 dB @ 1000Hz;35 dB @ 100Hz;30 dB@ 50Hz
Equivalent Noise Level20dBA(SPL)
Max SPL139dB(THD<3%)
Output Impedance600Ω
Power Supply48V DC phantom power
Output Interface3-pin XLR
Operating temperature0~45°C
Storage temperature-20~50°C
Size (L*H*W)241*111*108 mm
Weight1.3Kg
