Digital Professional Power Amplifier

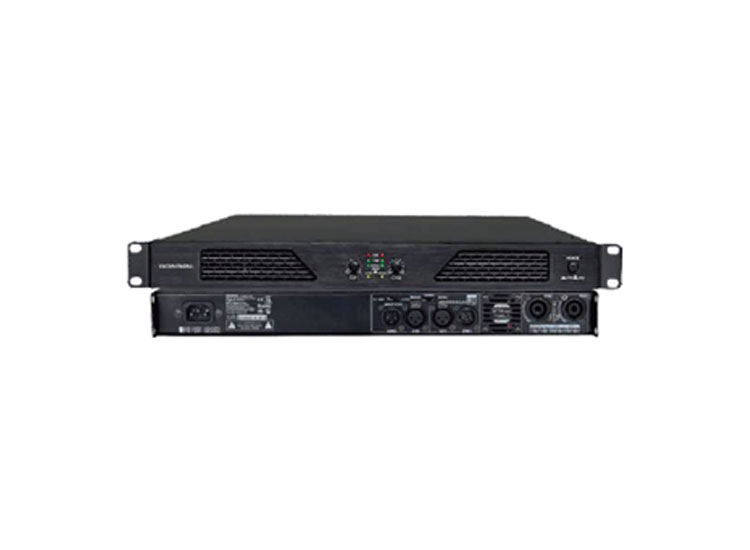

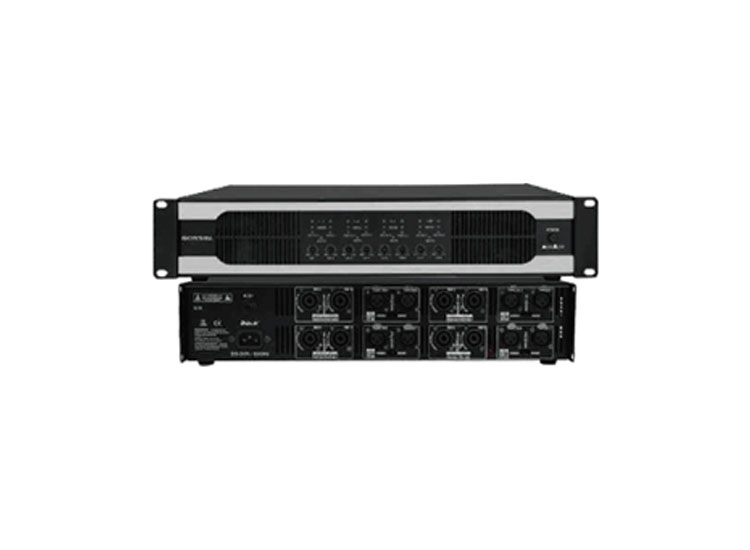

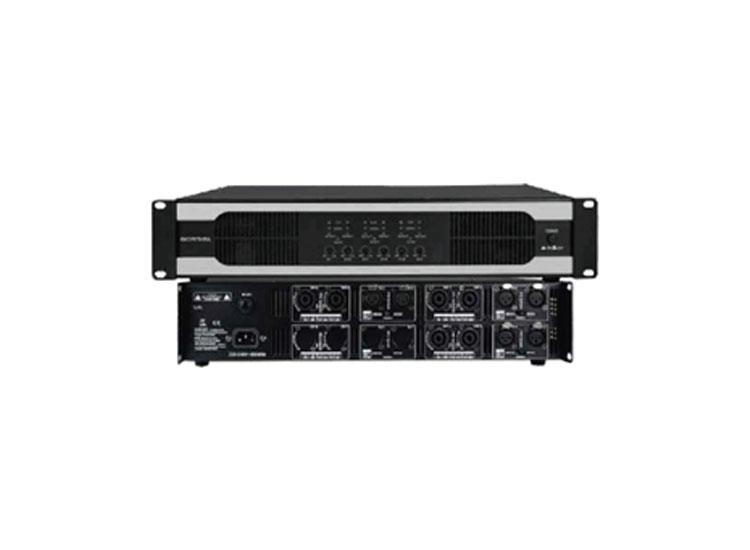

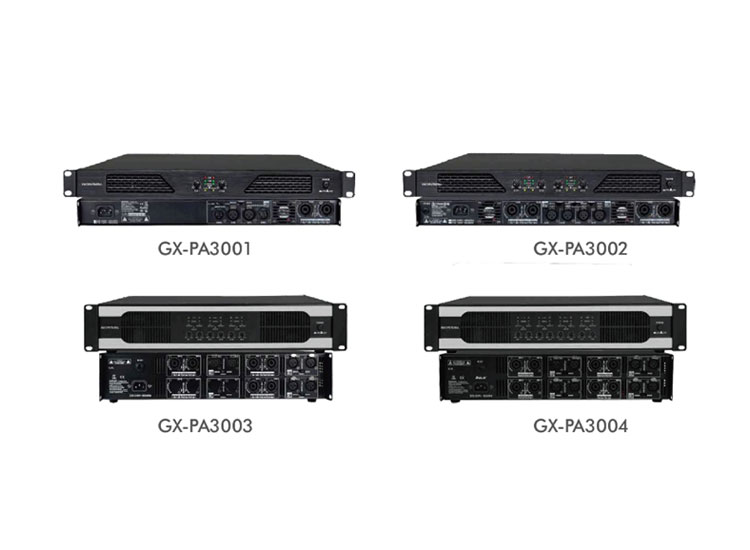

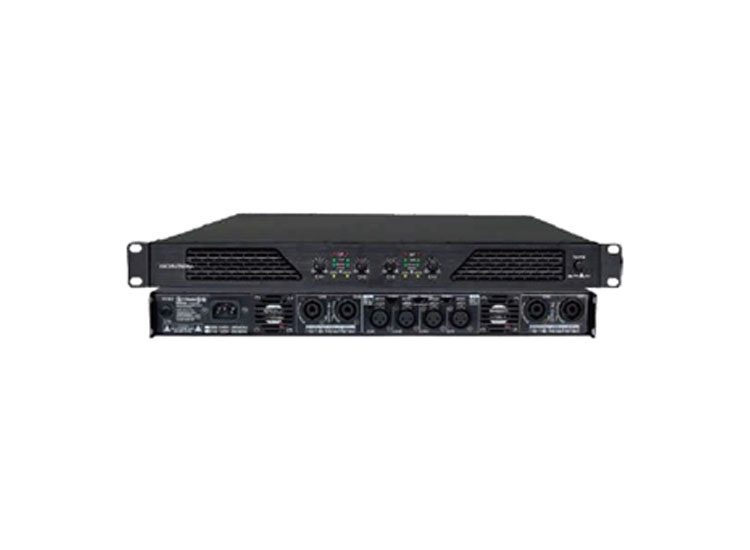

Compact, portable, lightweight and beautiful design, 2 to 4 channel power amplifier adopts 1U chassis, 6 to 8 channel power amplifier adopts 2U chassis. The front panel has a power switch, a separate channel gain control knob, and an LED status indicator. The rear panel has XLR balanced audio input and loop output. It is equipped with an NL4MP speakon speaker interface, with stereo, parallel, and bridge mode selection functions. Using high-power, low-noise Class D amplifier circuit and integrated switching power supply, the human voice is transparent and the performance is stable. Support 4/8 ohm constant resistance output, support 70-100V constant voltage output (GX- PA3001). With an efficient air duct design and a variable speed cooling system, the whole machine has a good heat dissipation effect and extremely low working noise. With high-quality components and strict quality management, it can protect the circuits effectively, making more stable.

Multi Channel Amplifier With Bluetooth
Multi Channel Amplifier
Digital Power Amplifier
Class D Multichannel Amplifier
Channel Amplifier
Multi Channel Amplifier With Bluetooth
Multi Channel Amplifier
Digital Power Amplifier
Class D Multichannel Amplifier
Channel Amplifier

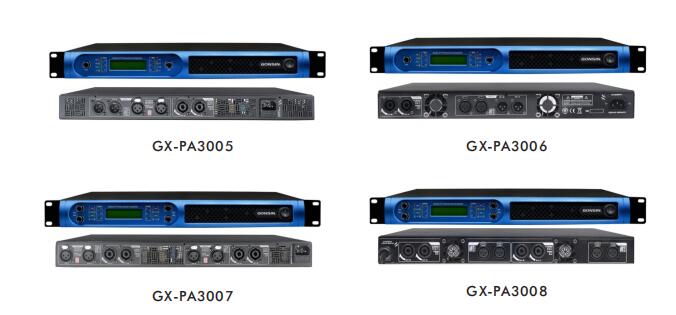

Multichannel Digital Power Amplifier GX-PA3005/ GX-PA3006/ GX-PA3007/ GX-PA3008


Multichannel Digital Power Amplifier GX-PA3005/ GX-PA3006/ GX-PA3007/ GX-PA3008


New compact design, small and light, beautiful and generous, front panel with power switch, separate channel gain control knob, LED status indicator, rear panel provides XLR head balanced audio input and loop output, equipped with NL4MP speakon speaker interface, with stereo, Parallel, bridge mode selection function.

Using high-power, low-noise Class D amplifier circuit and integrated switching power supply, the human voice is transparent and the performance is stable. Support 2/4/8 ohm fixed resistance output. Adopting an efficient air duct design and a variable speed cooling system, the whole machine has a good heat dissipation effect and extremely low working noise. Select high-quality components, strict quality management, effective protection with professional protection circuits, and more stable use of the equipment.


Features of Multichannel Digital Power Amplifier GX-PA3005/ GX-PA3006/ GX-PA3007/ GX-PA3008

  • Brand new compact design, small and light

  • Finished aluminum panel, beautiful and generous

  • It has professional protection circuit and advanced heat dissipation system

  • High fidelity reduction circuit, supporting 4 / 8 ohm constant resistance output

  • High density copper radiator and intelligent temperature regulation ensure the high efficiency and stability of the equipment

  • Wide working power supply voltage AC180~250V

  • Transparent voice and stable performance

  • Suitable for conferences, multi-function halls, broadcasting, background music, etc.


Technical Specifications of Multichannel Digital Power Amplifier GX-PA3005/ GX-PA3006/ GX-PA3007/ GX-PA3008


ModelGX-PA3005GX-PA3006GX-PA3007GX-PA3008
RMS power
(8 ohms stereo)
2×600W2×1100W4×600W4×1100W
RMS power
(4 ohms stereo)
2×900W2×1700W4×900W4×1700W
RMS power
(2 ohms stereo)
2×1035W2×1900W4×1035W4×1900W
RMS power
(8 ohms bridge mono)
1×1800W1×3400W2×1800W2×3400W
RMS power
(4 ohms bridge mono)
1×2070W1×3800W2×2070W2×3800W
Frequency response20Hz-20kHz(±0.3dB)
Total harmonic distortion<0.5dB
Damping coefficient500
Signal to noise ratio>95dB
Conversion rate30V/us
Input sensitivity1.0V 0.775V0.775V1.0V 0.775V0.775V
Input impedance20KΩ balanced/10KΩ unbalanced
Input connector2×XLR4×XLR
Output connector2×XLR 2×SPEAKON4×XLR 4×SPEAKON
Front panel controlpower switch, volume adjustment knob (independent control of each channel),
power amplifier mode (stereo, parallel, bridge) switch
Rear panel controlsensitivity switch GX-PA3005,GX-PA3007
Cooling methodfront to back ventilation, stepless speed regulation
Protection functionsoft start, DC, short circuit, clipping, distortion, overheating, overtemperature, etc.
Power supplyAC180~264V 50~60Hz
Maximum power1410W2590W2820W5180W
consumption
Size483×300×44mm
Packing size (W×D×H)544×402×100mm
Net weight5.03kg6.2kg11.5kg12kg
Gross weight6.03kg7.2kg12.5kg13kg
