Conference Speaker Series

Two-way small full-range speakers are specially designed for multi-functional halls and conference rooms, and meet the requirements of sound reinforcement for voice and music. With a small size, it can be better applied into the conference venue. The speaker adopts professional unit configuration, optimizes built-in frequency divider and adopts front port design, with the characteristics of high power and high efficiency. The sound pressure is abundant, the tone is clear and transparent, the sense of texture is very good, and it has better vocal and music effects. The cabinet is made of high-quality MDF CNC machined, and the internal structure is strengthened to make it more durable. The surface of the cabinet is sprayed with black wear-resistant and environment-friendly water-based paint, with high-grade and generous appearance. The front net is designed with high-strength steel, with waterproof, dust-proof and sound-transmitting sponge inside.

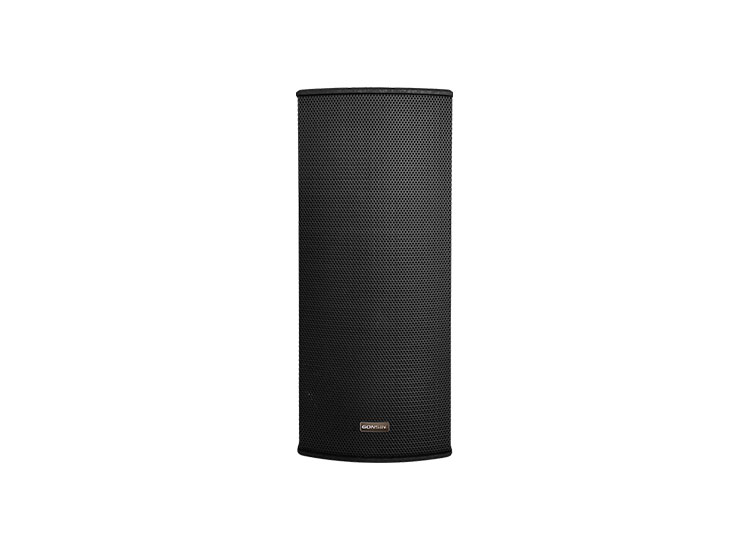

Pa System For Meeting Room

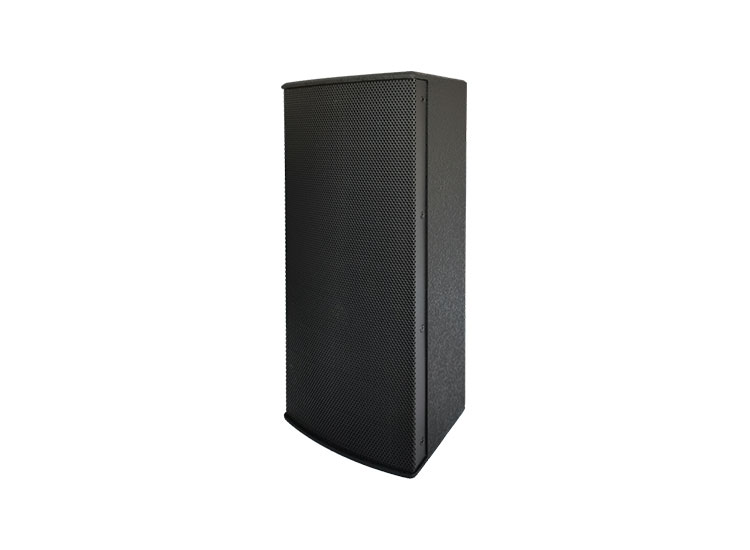

Pa System For Conference Room
Pa System For Meeting Room
Pa System For Conference Room

Technical Specifications of GX-SP1025D-A/GX-SP1006D-A/GX-SP1008D-A/GX-SP1010D-A

ModelGX-SP1025D-AGX-SP1006D-AGX-SP1008D-AGX-SP1010D-A
Type3-unit two way
inverted speaker
2-unit two way inverted speaker
DriversLF: 2×5.5”
HF: 1×1”
LF: 1×6.5”
HF: 1×1”
LF: 1×8”
HF: 1×1.4”
LF: 1×10”
HF: 1×1.7”
Frequency response90Hz~20kHz80Hz~20kHz80Hz~20kHz65Hz~20kHz
Sensitivity (1W/1m)98dB96dB97dB97dB
Rated power/peak power150W/600W100W/400W250W /1000W350W/1400W
MAX SPL120dB@150W/
123dB@300W
116dB@100W/
119dB@200W
121dB@250W/
124dB@500W
122dB@350W/
125dB@700W
Dispersion (H×V)90°×90°90°×90°100°×60°90°×70°
Impedance
Connector4-position crimping terminal
Product Size(W×D×H) (mm)161×170×415mm190×200×310mm232×240×440mm275×280×520mm
Package Size(W×D×H) (mm)240×230×495mm270×260×390mm310×302×520mm350×345×600mm
Net Weight7.5kg5kg9kg12.5kg
Gross Weight9kg6.5kg10.5kg14kg
ColorBlack, other colors on request
Hanger/Installation deviceU-shaped wall-mounted stand, wall-mounted installation

Applications of GX-SP1025D-A/GX-SP1006D-A/GX-SP1008D-A/GX-SP1010D-A

  • Conference room

  • Multifunctional hall

  • Auditorium

  • Church

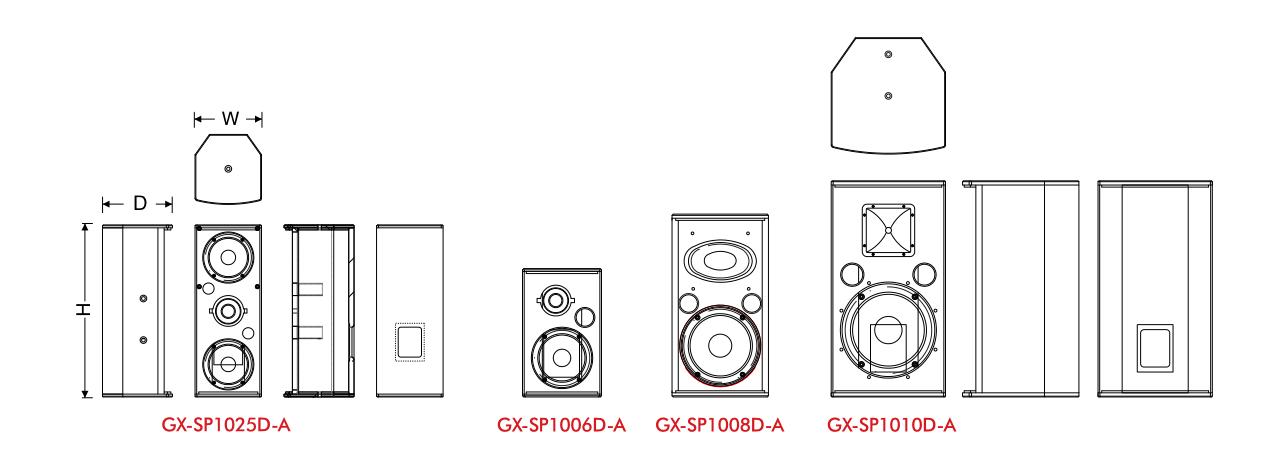

Product Drawing of GX-SP1025D-A/GX-SP1006D-A/GX-SP1008D-A/GX-SP1010D-A

Conference Sound System

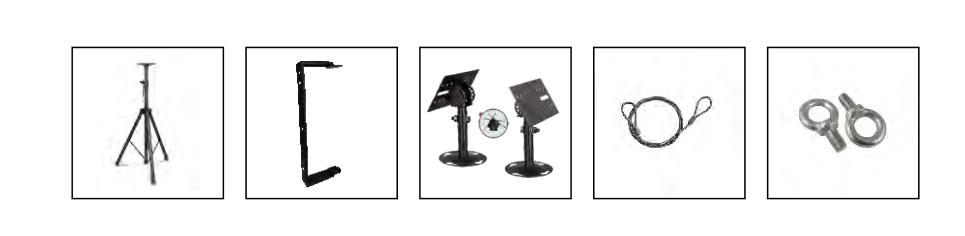

Accessories of GX-SP1025D-A/GX-SP1006D-A/GX-SP1008D-A/GX-SP1010D-A

Conference Room Av Equipment
