GONSIN Video Matrix System can be widely used in video conference rooms, educational institutions, control rooms, monitoring centers, government agencies and demonstration halls, etc. As a video conferencing equipment supplier, Gonsin provides a video matrix system supporting different video signals with cross switching. Every video or audio signal is transmitted independently to decrease signal attenuation. It will handle all the audiovisual management, including the switching, driving, scaling etc.


Buy Hdmi Splitter
Hdmi Video Matrix
Hdmi Over Ip Matrix
Hdmi Matrix
Buy Hdmi Matrix
China Hdmi Matrix
Video Matrix System
Video Matrix
Audio Video Matrix
Buy Hdmi Splitter
Hdmi Video Matrix
Hdmi Over Ip Matrix
Hdmi Matrix
Buy Hdmi Matrix
China Hdmi Matrix
Video Matrix System
Video Matrix
Audio Video Matrix
GX-HDMI0404S2
GX-HDMI0808S2
GX-HDMI01604S / 1608S / 1616S
GX-HDMI0104S / 0108S / 0116S
GX-HDMI0801S

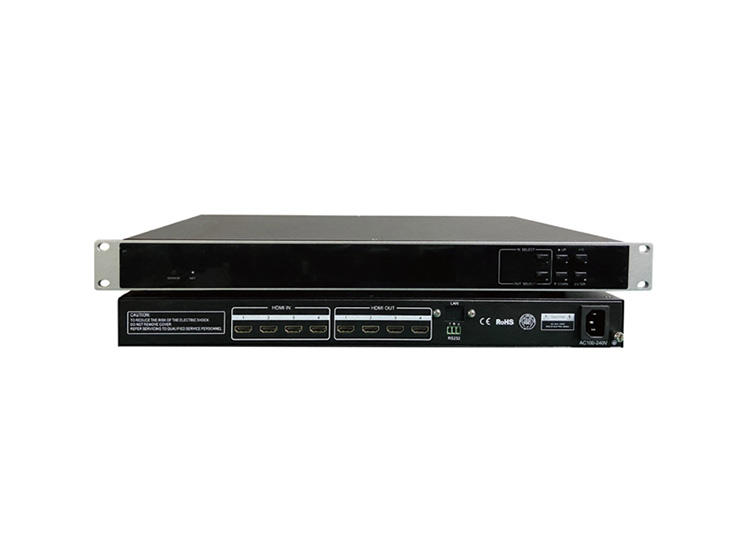

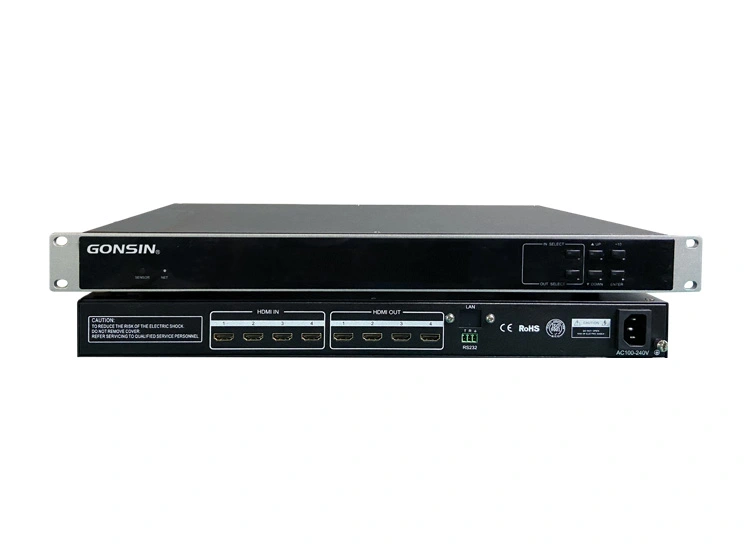

Functions of HDMI Matrix GX-HDMI0404S2

  • Support one or more HDMI signals output to one or more display devices

  • Support 1 channel HDCP decoding

  • Support EDID reading and writing, switching, built-in 2K or 4K resolution EDID

  • Support resolution 3840*2160@30Hz, 1080P@24/50/60/120Hz, 1080i, 720P, 576P, 576i, 480P, 480i

  • Support 10 sets of scene recall and save

  • Support fast switching, the speed up to 200 ns

  • Support button control and RS232 control, optional function of infrared control or network control

  • Support remote control through PC client software or central control system

  • Support AC100-240V wide voltage, suitable for power input in all regions of the world

  • With LED light and display screen, easy to see the information of power on/off or signal switching

  • Using 1U metal shell, support rack installation

  • It can be widely used in video conference rooms, educational institutions, control rooms, monitoring centers, government agencies and demonstration halls, etc.


Technical Specifications of HDMI Matrix GX-HDMI0404S2

ModelGX-HDMI0404S2
Input4 HDMI, HDMI-A female interface
Output4 HDMI, HDMI-A female interface
Power-down saveSupport
Scene functionSupport 10 sets of scene recall and save
HDCP functionThe 1st channel supports HDCP decoding
EDID managementSupport EDID reading and writing, switching, built-in 2K or 4K resolution EDID
3DSupport
Signal gain0dB
Resolution range3840*2160@30Hz, 1080P@24/50/60/120Hz, 1080i, 720P, 576P, 576i, 480P, 480i
Switching speed200ns (Max.)
Maximum input1080P: Use standard 24AWG wire, input support 15 meters, output support 15 meters
and output distance4K: Use standard 24AWG wire, input support 7 meters, output support 7 meters
Control methodSupport button control, RS232 control, infrared control or network control is optional
Power supply100VAC ~ 240VAC, 50/60Hz
Power consumption<10W
Product Size483*255*44mm (W*D*H)
Product weight7.4Kg
Working temperature-20℃~+70℃
Working humidity10% ~ 90%

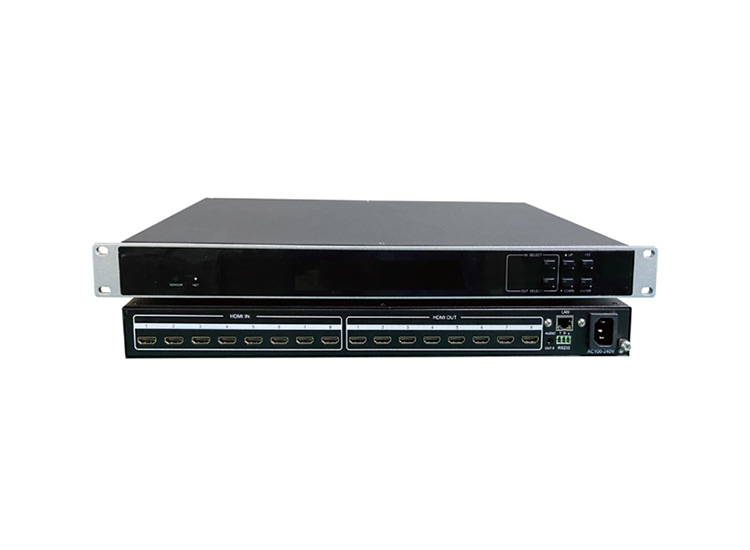

Functions of HDMI Matrix GX-HDMI0808S2

  • Support one or more HDMI signals output to one or more display devices

  • Support 1 channel HDCP decoding

  • Support 1 channel audio de-embedding and output with 3.5 audio interface

  • Support EDID reading and writing, switching, built-in 2K or 4K resolution EDID

  • Support resolution 3840*2160@30Hz, 1080P@24/50/60/120Hz, 1080i, 720P, 576P, 576i, 480P, 480i

  • Support 10 sets of scene recall and save

  • Support fast switching, the speed up to 200ns

  • Support button control and RS232 control, optional function of infrared control or network control

  • Support remote control through PC client software or central control system

  • Support AC100-240V wide voltage, suitable for power input in all regions of the world

  • With LED light and display screen, easy to see the information of power on/off or signal switching

  • Using 1U metal shell, support rack installation

  • It can be widely used in video conference rooms, educational institutions, control rooms, monitoring centers, government agencies and demonstration halls, etc.


Technical Specifications of HDMI Matrix GX-HDMI0808S2

ModelGX-HDMI0808S2
Input8 HDMI, HDMI-A female interface
Output8 HDMI, HDMI-A female interface,1 channel 3.5 audio output
Power-down saveSupport
Scene functionSupport 10 sets of scene recall and save
HDCP decodingThe 1st channel supports HDCP decoding
Audio de-embedding output1 channel audio de-embedding and output with 3.5 audio interface
EDID managementSupport EDID reading and writing, switching, built-in 2K or 4K resolution EDID
3DSupport
Signal gain0dB
Resolution range  Switching speed3840*2160@30Hz, 1080P@24/50/60/120Hz, 1080i, 720P, 576P, 576i, 480P, 480i 200ns (Max.)
Maximum input and output distance1080P: Use standard 24AWG wire, input support 15 meters, output support 15 meters
4K: Use standard 24AWG wire, input support 7 meters, output support 7 meters
Control methodSupport button control, RS232 control, infrared control or network control is optional
Power supply100VAC ~ 240VAC, 50/60Hz
Power consumption<15W
Product Size483*255*44mm (W*D*H)
Product weight7.4Kg
Working temperature-20℃~ +70℃
Working humidity10% ~ 90%


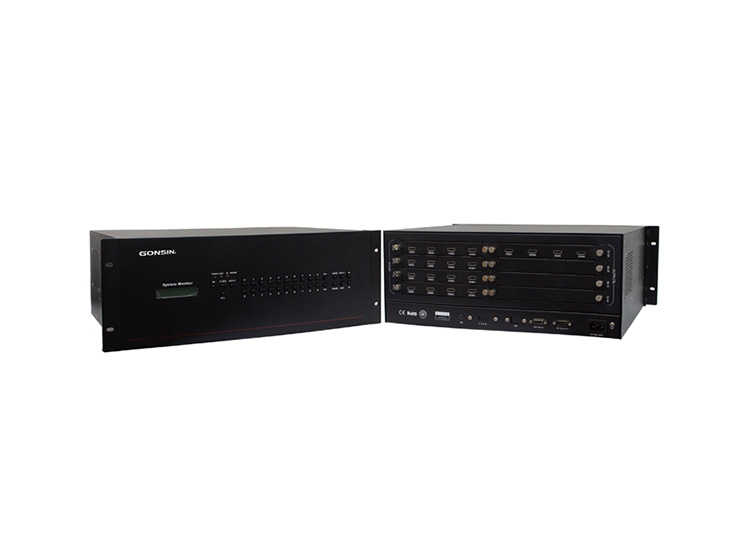

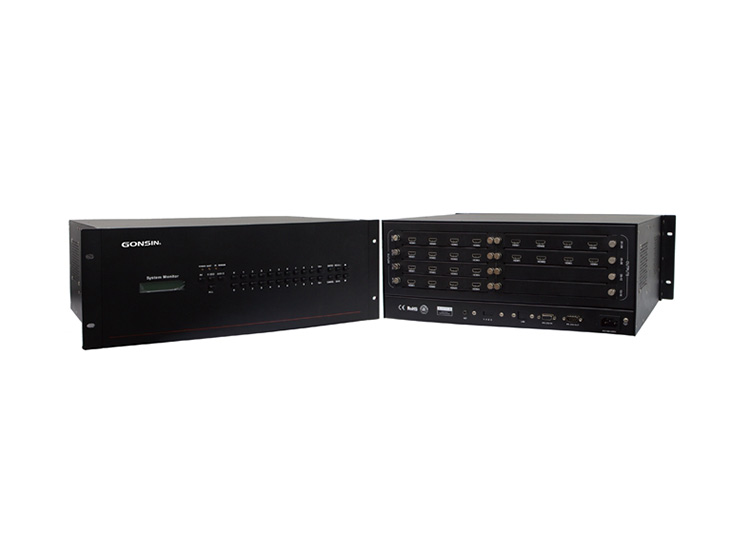

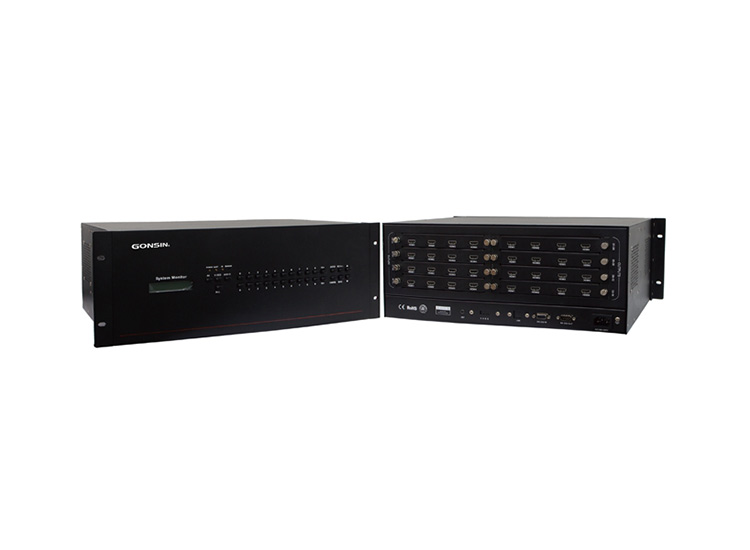

Functions of HDMI Matrix GX-HDMI01604S / GX-HDMI1608S / GX-HDMI1616S

Bandwidth is up to 10.2Gbit/s(340MHz), Internal HDCP management, support DVI1.0, HDMI 1.3, Internal EDID and DDC management, Resolution is up to 1080p,1920*1200@60Hz,completely support HDTV and DVI signal; Support HD and various of color(support XV color); Support DOLBY digital HD audio, DTS-HD audio signal; RS232 serial control interface, a series of code can control third-party equipment; IR control, the user can realize full-control through IR control, IR remote controller is optional; rack mount aluminum alloy shell; Power:100-240V AC,50/60Hz, backup power supported, one power for daily use, one power for emergency; 9 kinds of presets, offer store and cancel function; Quick switch function, speed is up to 200ns; LED display system and switch information simultaneously.


Technical Specifications of HDMI Matrix GX-HDMI01604S / GX-HDMI1608S / GX-HDMI1616S

ModelsGX-HDMI01604SGX-HDMI1608SGX-HDMI1616S
Input16*HDMI Type A16*HDMI Type A16*HDMI Type A
Output4*HDMI Type A8*HDMI Type A16*HDMI Type A
Input and output portHDMI 1.3
Input and output port levelT.M.D.S. 2.9V/3.3V
Input resistance75Ω
Video Common Parameter
Signal gain0db
Video signalHDMI (or DVI-D)
Resolution1920*1200 / 1080P@60Hz
Bandwidth340 MHz (10.2 Gbit/s)
Switch speed200ns (Max.)
Max pixel clock165MHz
Max input and output transmission distance15m (AWG24 HDMI standard cable)
Control Parameter
Serial port controlRS-232, 9-pin female D connector
Port pin definition2th pin for sending, 3th pin for receiving, 5th pin for ground
Other control methodsFront panel keys, LED indicated function
Normal parameter
Power100VAC ~ 240VAC, 50/60Hz
Power Consumption20W
Size (W*D*H)483x 320x 176mm
Weight11.8Kg
Working temperature-20℃~ +70℃
Working humidity10% ~ 90%

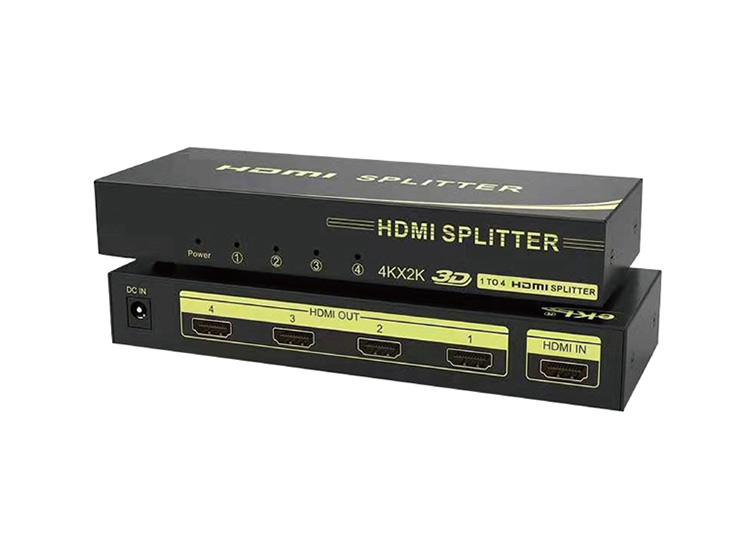

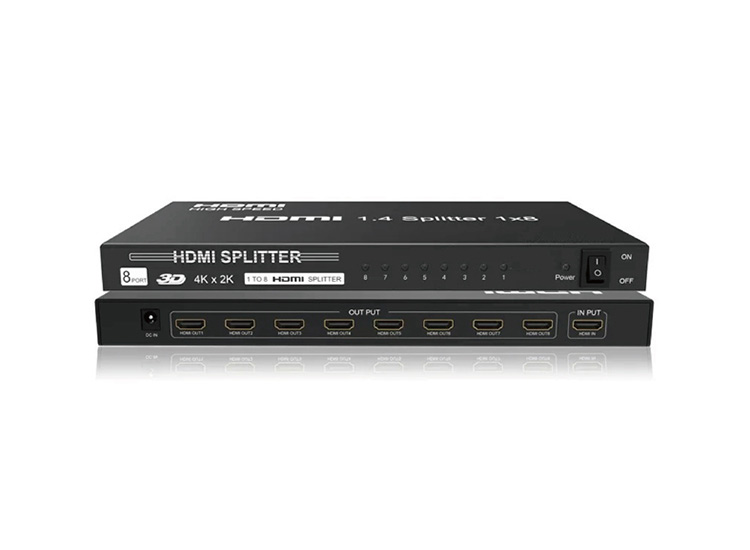

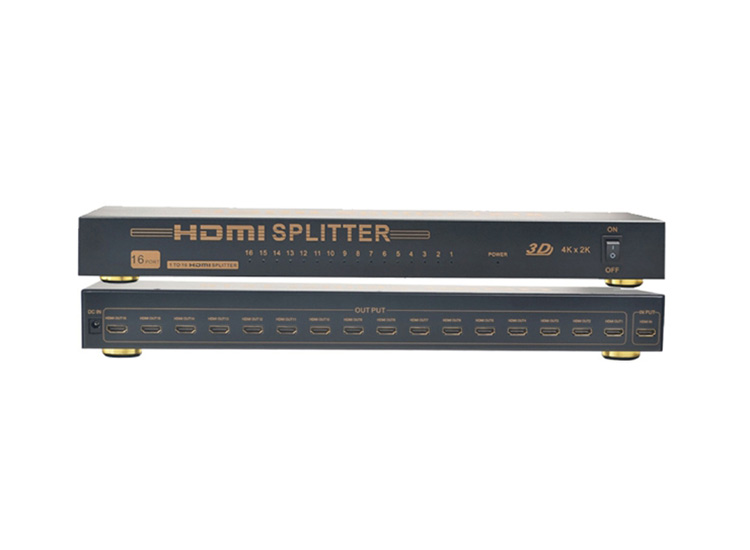

Functions of HDMI Splitter GX-HDMI0104S / GX-HDMI0108S / GX-HDMI0116S

  • 1 channel HDMI signal input distributed to a 2/4/8/16 HDMI signal output

  • Support HDMI 1.4 version

  • Support 3D Video format

  • Support 24/30/36 Bit Color

  • Max resolution is 4K@30Hz

  • Support HDCP

  • The input and output transmission distance is up to 15 meters( using the AWG24 HDMI standard cable)


Technical Specifications of HDMI Splitter GX-HDMI0104S / GX-HDMI0108S / GX-HDMI0116S

ModelGX-HDMI0104SGX-HDMI0108SGX-HDMI0116S
HDMI input port1
HDMI output port4816
HDMI versionHDMI1.4
HDMI resolutions4K@30fs, 1080p/1080i/720p/576p/576i/480p/480i@24/50/60fs
Video bit color24/30/36 bits
Audio formatsLPCM7.1/DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max transmission rate10.2Gbps
TMDS clock340MHz
Input and output TMDS signals0.5~1.5Vp-p(TTL)
Input and output DDC signals5Vp-p(TTL)
Electrostatic protection8KV
Input and output cable length≤15m AWG24 HDMI standard cable
AdapterAC100V-240V (50Hz/60Hz), output: DC5V/3A
Working temperature0 ~40℃
Working humidity5 ~85%(non-condensing)

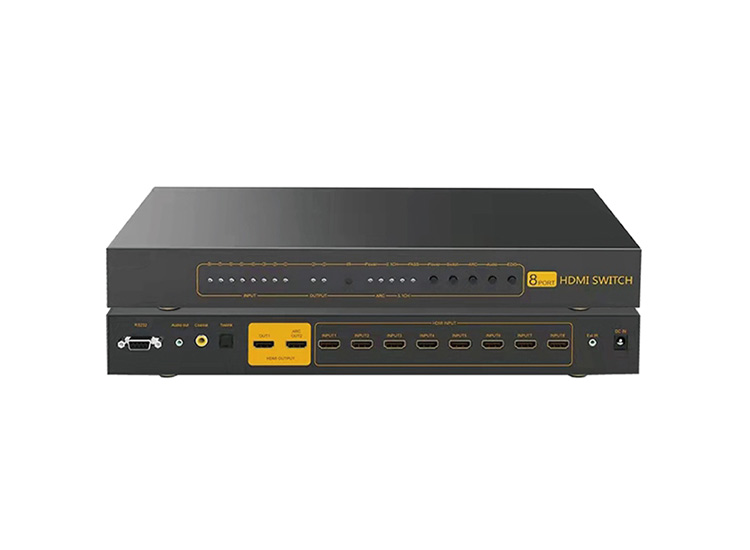

Functions of HDMI Switch GX-HDMI0801S

  • 8 ways of HDMI input switched to 1 way HDMI signal output

  • Support HDMI 1.4 version

  • Support 3D Video format

  • Support 24/30/36 Bit Color

  • Max resolution is 4K@30Hz

  • Any HDMI signal source can be separated to the optical fiber, coaxial and analog audio output

  • The input and output transmission distance is up to 15 meters( using the AWG24 HDMI standard cable)

  • Support button switch, remote control switch and Rs232


Technical Specifications of HDMI Switch GX-HDMI0801S

Video portHDMI input * 8, HDMI output *1+1
Audio port3.5mm Audio out *1, Coaxial*1, Toslink *1
Control portRS-232
HDMI versionHDMI1.4
HDMI resolutions4K@30fs, 1080p/1080i/720p/576p/576i/480p/480i@24/50/60fs
Video bit color24/30/36 bits
Audio formatsLPCM7.1/DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max transmission rate10.2Gbps
TMDS clock340MHz
Input and output TMDS signals0.5~1.5Vp-p(TTL)
Input and output DDC signals5Vp-p(TTL)
Electrostatic protection8KV
Input cable length≤10m AWG24 HDMI standard cable
Output cable length≤10m AWG24 HDMI standard cable
AdapterAC100V-240V (50Hz/60Hz), output: DC5V/3A
Weight1.2kg
Size400×118×45mm
Working temperature0 ~40℃
Working humidity5 ~85%(no-condensing)
