Products

Full Range Speaker

Two-way small full-range speakers are specially designed for multi-functional halls and conference rooms, and meet the requirements of sound reinforcement for voice and music. The speaker adopts professional unit configuration, optimizes built-in frequency divider and adopts front port design, with the characteristics of high power and high efficiency. The sound pressure is abundant, the tone is clear and transparent, the sense of texture is very good, and it has better vocal and music effects. The cabinet is made of high-quality MDF CNC machined, and the internal structure is strengthened to make it more durable. The front net is designed with high-strength steel, with waterproof, dust-proof and sound-transmitting sponge inside.

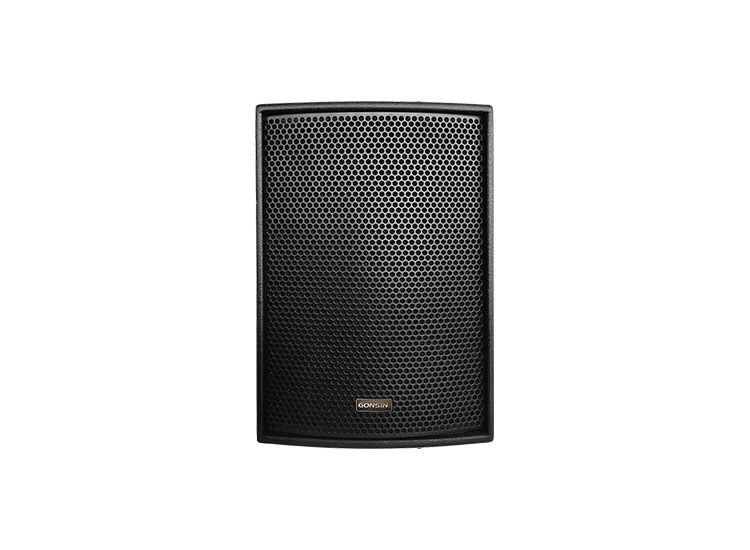

Box Speaker Full Range

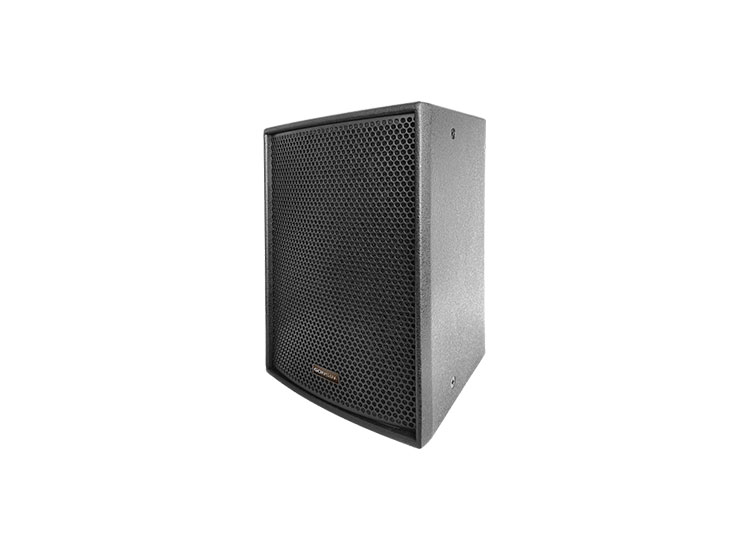

Full Range Pa Speakers
Box Speaker Full Range
Full Range Pa Speakers

Features of GX-SP1006/GX-SP1008 Full Range Speaker Box

  • Rotatable horn installation design

  • High-power, excellent transient response

  • Equivalent phase adjuster crossover network


Technical Specifications of GX-SP1006/GX-SP1008 Full Range Speaker Box

ModelGX-SP1006GX-SP1008
TypePassive two-way full-range speaker
DriversLF: 1*6.5”(50mm voice coil)LF: 1*8”(50mm voice coil)
Frequency responseHF: 1*1.34”(34mm voice coil); 98Hz~20KHzHF:1*1.34”(34mm voice coil); 98Hz~20KHz)
Power175W(AKS)/700W(PEAK)200W(AKS)/800W(PEAK)
Impedance8 ohms
Sensitivity92dB93dB
MAX SPL114dB/120dB116dB/122dB
Dispersion90°(H)*50°(V)
Connector2*NL4MPspeakon
Connect methodsFR: 1+/1-, Link: 2+/2-
Product Size(W*D*H)265*273*409mm278*288*439mm
Package Size(W*D*H)315*325*420mm340*340*490mm
Net Weight8.5kg10.75kg
Gross Weight9.8kg12kg
MaterialHigh-quality MDF
ColorBlack environmental waterproof paint
HangerM8 screw hole hanger system, no bottom hole of stand

Features of GX-SP1010/GX-SP1012/GX-SP1015 Full Range Speaker Box

  • Rotatable horn installation design

  • High-power, excellent transient response

  • Equivalent phase adjuster crossover network


Technical Specifications of GX-SP1010/GX-SP1012/GX-SP1015 Full Range Speaker Box

ModelGX-SP1010GX-SP1012GX-SP1015
TypePassive two-way full-range speaker
DriversLF: 1*10”(65mm voice coil); HF: 1*1.34”(34mm voice coil)LF: 1*12”(65mm voice coil); HF: 1*1.75”(44mm voice coil)LF: 1*15”(75mm voice coil); HF: 1*2.5”(65mm voice coil)
Frequency response77Hz~20KHz68Hz~20KHz66Hz~19KHz
Power250W(AKS)/1000W(PEAK)300W(AKS)/1200W(PEAK)450W(AKS)/1800W(PEAK)
Impedance8 ohms
Sensitivity94dB96dB97dB
MAX SPL118dB/124dB121dB/127dB123dB/129dB
Dispersion90°(H)*60°(V)80°(H)*50°(V)80°(H)*50°(V)
Connector2*NL4MPspeakon
Connect methodsFR:1+/1-, Link: 2+/2-
Product Size(W*D*H)312*310*500mm357*364*545mm437*435*700mm
Package Size(W*D*H)380*380*550mm420*425*610mm495*495*760mm
Net Weight12kg19.60kg30.30kg
Gross Weight13.8kg20.9kg32.1kg
MaterialHigh-quality MDF
ColorBlack environmental waterproof paint
HangerM8 screw hole hanger system with bottom hole of stand

Features of GX-SP1008F-A/GX-SP1010F-A/GX-SP1012F-A/GX-SP1015F-A

  • Symmetrical trapezoidal cabinet design

  • Rotatable horn installation design

  • High-power, excellent transient response

  • Equivalent phase adjuster crossover network


Technical Specifications of GX-SP1008F-A/GX-SP1010F-A/GX-SP1012F-A/GX-SP1015F-A

ModelGX-SP1008F-AGX-SP1010F-AGX-SP1012F-AGX-SP1015F-A
TypePassive two way full range speaker
DriversLF: 1×8”
HF: 1×1.3”
LF: 1×10”
HF: 1×1.73”
LF: 1×12”
HF: 1×1.73”
LF: 1×15”
HF: 1×1.73”
Frequency response65Hz~18kHz65Hz~18kHz55Hz~18kHz50Hz~18kHz
Sensitivity (1W/1m)95dB96dB97dB98dB
Rated power/peak power250W/1000W300W/1200W350W/1400W400W/1600W
MAX SPL122dB@500W/
125dB@1000W
124dB@600W/
127dB@1200W
125dB@700W/
128dB@1400W
127dB@800W/
130dB@1600W
Dispersion (H×V)90°×60°
Impedance
Connector1×NL4MP speakon ? PIN1+/2+,PIN1-/2-?
Product Size(W×D×H) (mm)305×250×430mm355×320×495mm405×365×565mm470×443×690mm
Package Size(W×D×H) (mm)340×300×500mm380×370×550mm440×410×610mm520×490×730mm
Net Weight12kg16kg20kg30kg
Gross Weight13.5kg17.5kg21.5kg31.5 kg
ColorBlack, other colors on request
Hanger/Installation device35mm bottom hole of stand, M8 screw hole hanger system,
support wall-mounted, hanging and stand installation

Applications of GX-SP1008F-A/GX-SP1010F-A/GX-SP1012F-A/GX-SP1015F-A

  • Conference room

  • Multifunctional hall

  • Lecture hall

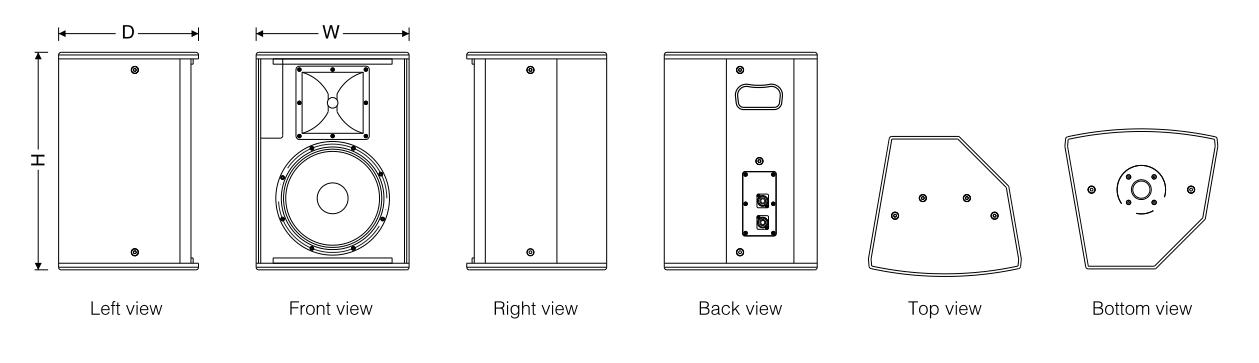

Product Drawing of GX-SP1008F-A/GX-SP1010F-A/GX-SP1012F-A/GX-SP1015F-A

Sound System For Conference Room

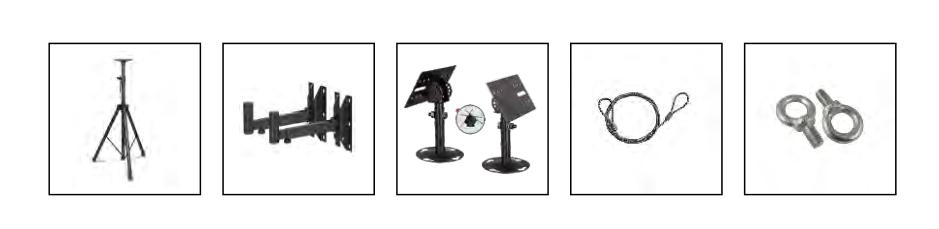

Accessories of GX-SP1008F-A/GX-SP1010F-A/GX-SP1012F-A/GX-SP1015F-A
