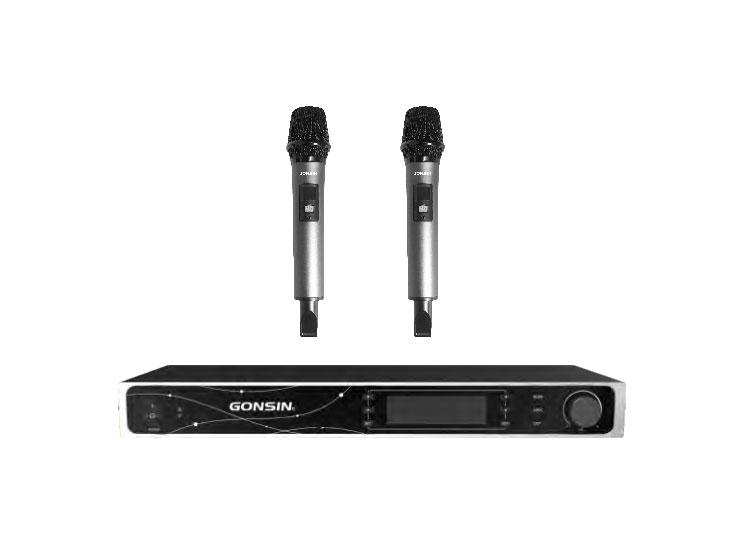

Wireless Microphone GX-U402-G/GX-U404-G
Wireless Microphone GX-U304A-X\GX-U304B-X\GX-U304C-X\GX-U304D-X
GX-U302A-X\GX-U302B-X\GX-U302C-X\GX-U302D-X
Technical Specifications

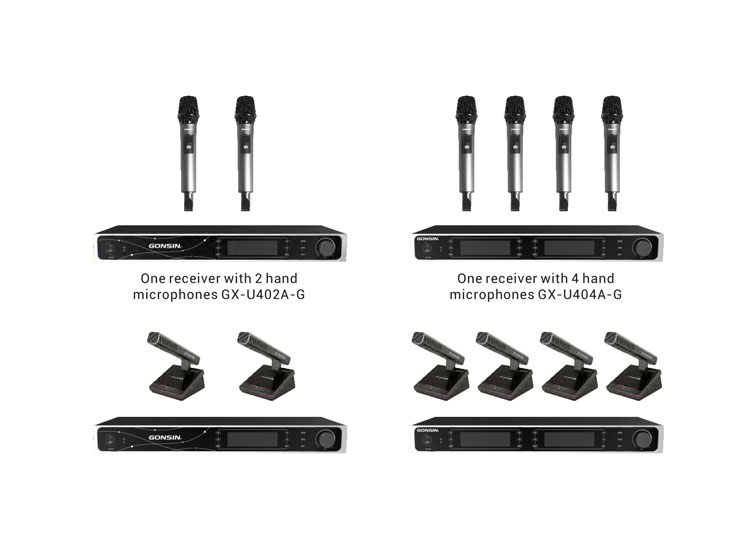

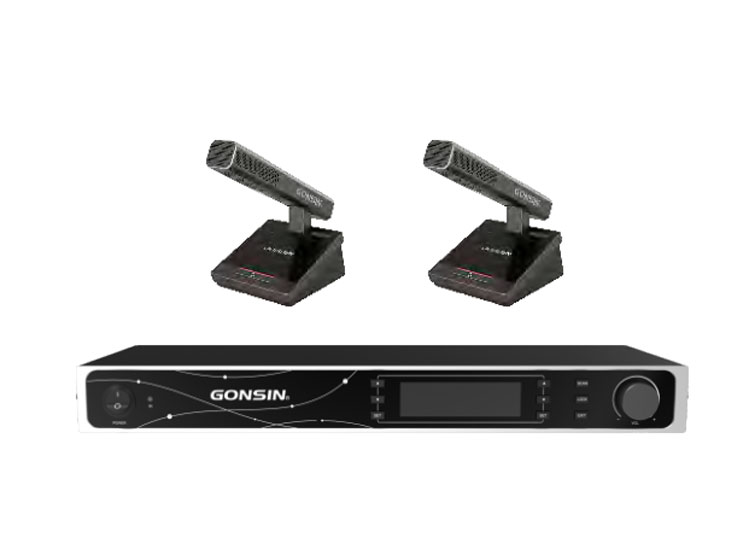

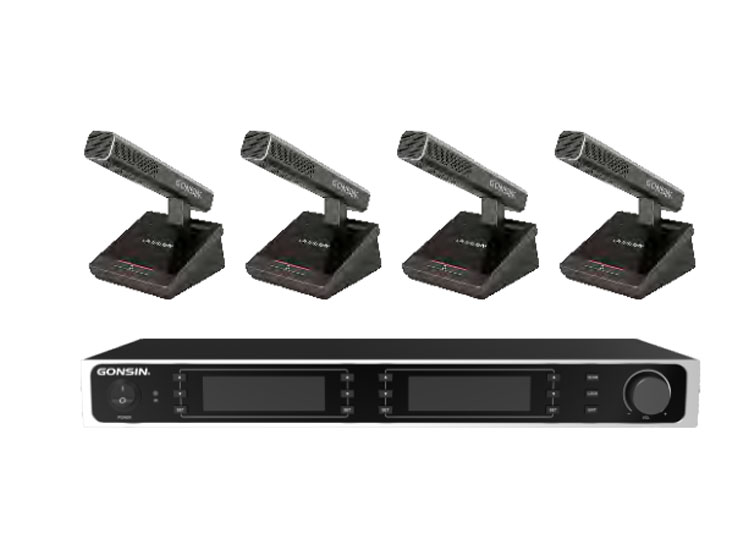

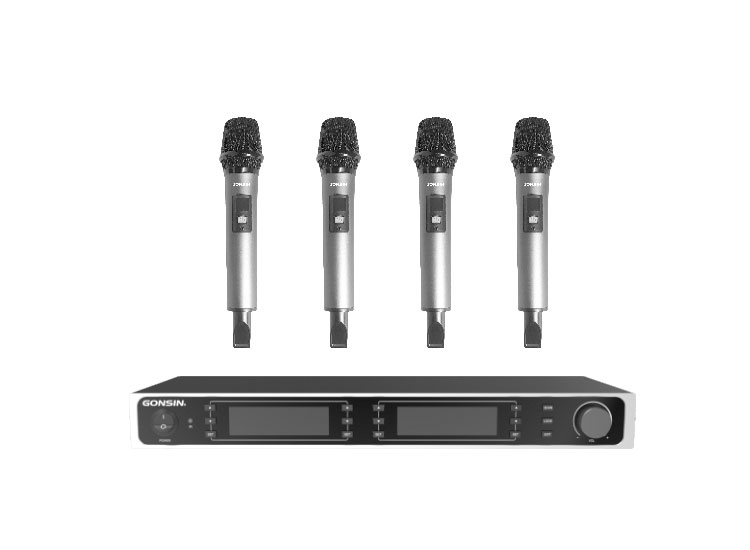

Features of Wireless Microphone GX-U402-G/GX-U404-G

  • One receiver can be equipped with 2 hand microphones (GX-U402A-G)/rectangular columnar short microphones (GX-U402D-G)

  • One receiver can be equipped with 4 hand microphones (GX-U404A-G)/rectangular columnar short microphones (GX-U404D-G)

  • The receiver adopts metal shell design, segmented LCD displays system information, and each channel is set with independent buttons to facilitate user operation, with total volume control knob

  • It adopts full digital wireless communication technology, which can resist interference and

  • multipath fading, and is not affected by light and infrared. It can be used stably in WLAN environment

  • The receiver adopts true diversity large dynamic receiving circuit, and supports 48kHz audio sampling frequency and up to 100 communication frequency points

  • Internal CRC is adopted, audio and data are transmitted by 32-bit encrypted word to ensure the privacy of communication and avoid eavesdropping and malicious interference

  • Adopt high performance communication antenna, and support antenna extension. The straight-line barrier free working distance of wireless signal is 100 meters

  • The receiver supports antenna cascade, and multiple receivers can share a set of antenna system, which is convenient for project installation and wiring

  • The receiver supports the power supply function of antenna amplifier, which can supply power for the specified active antenna, reduce the intermediate equipment of the system and improve the convenience

  • Single or mix output in each channel, independent electronic volume adjustment in each channel

  • The mixed output has balanced output and unbalanced output, which can be flexibly adapted to various post-stage equipments

  • The receiver supports one key automatic frequency sweeping function. The system automatically detects the current wireless environment, and selects clean frequency points, improving the communication stability

  • The receiver supports one key lock / unlock function, which can prevent the setting change caused by personnel misoperation

  • It is powered by safe and smart adapter, which meets the safety certification and is suitable for various regions (adapter connector depends on the regions)

  • The receiver provides USB interface to connect with PC to realize PPT page turning function (the function depends on the version)


Technical Specifications of Wireless Microphone GX-U402-G/GX-U404-G

Transmission technologyFull digital audio, Pi/ 4 DQPSK digital modulation and mediation
Encryption technology32Bit encryption
Working frequencyISM international standard frequency band
Audio frequency response20Hz～20kHz
Power interfaceDC 24V
Communication interface1RS485 interface of group Phoenix terminal
Antenna interface2 BNC input interface, with power output, used to connect the receiving antenna
2 BNC output interface for antenna cascade
Audio interfaceOne receiver with 2 wireless microphones: 2CH XLR independent output,
XLR + TRS6.35 mixed output;
One receiver with 4 wireless microphones: 4CH XLR independent output,
XLR + TRS6.35 mixed output
Other interfaces1 USB interface is used to connect PC for PPT page turning function
Working temperature0~45°C
Storage temperature-20~50°C
Size420×185×45mm
InstallDesktop or 19 'cabinet installation
Weight2.5kg
Microphone typeHand microphone , clip microphone, head-mounted microphone,
rectangular columnar short microphone, gooseneck microphone
Microphone power supplyBattery

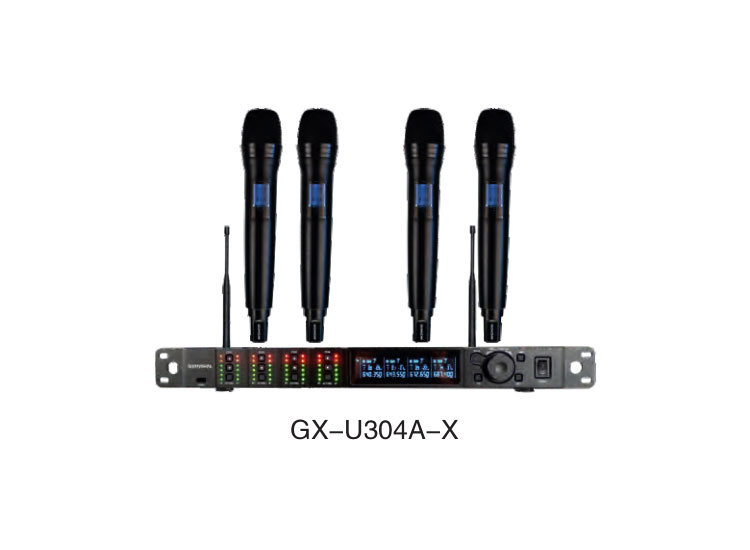

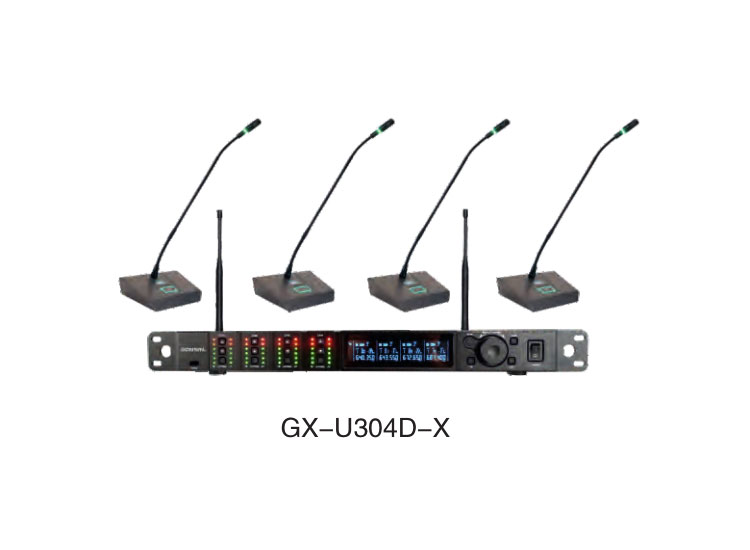

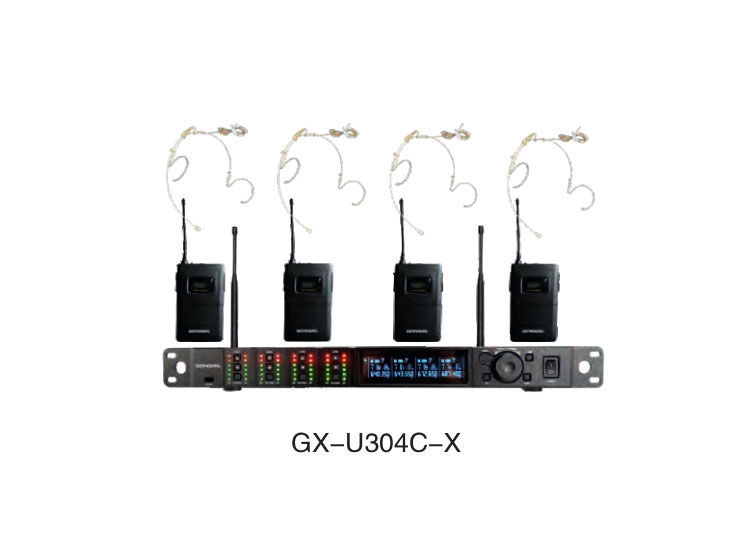

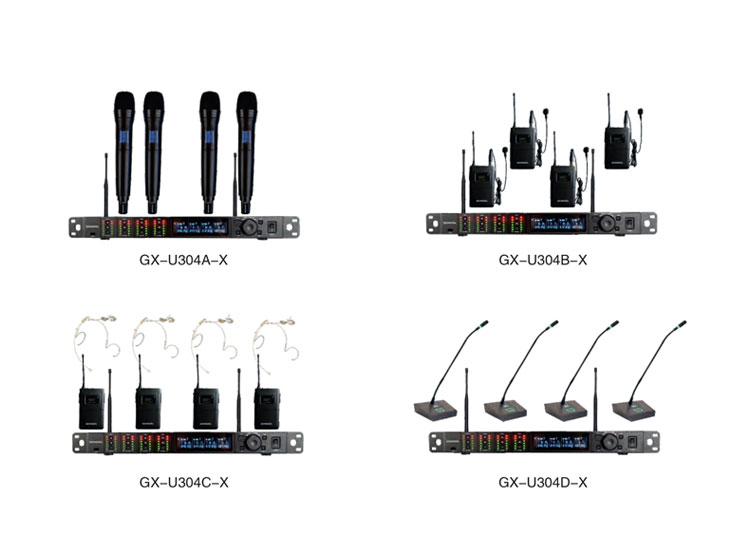

Features of Wireless Microphone GX-U304A-X\GX-U304B-X\GX-U304C-X\GX-U304D-X

  • One receiver can be equipped with 4 hand microphones(GX-U304A-X)/clip microphone (GX-U304B-X)/ head-mounted microphone(GX-U304C-X)/desktop microphone(GX-U304D-X)

  • Receiving metal shell design, strong structure and strong isolation of harmonic interference

  • RF high dynamic range design, high-performance devices, greatly improve the anti-interference characteristics of the system, eliminate the reception of broken sound

  • Adopt antenna diversity large dynamic receiving circuit, digital pilot, RF intensity identification, noise triple mute circuit control, to make receive no dead angle

  • Up to 2000 selective frequencies and a set of 16 frequencies for self-setting and storage preferences

  • The most advanced ,automatic and fast setting and undisturbed working channels

  • Modular and automatic sweep-frequency reception for signal transmission

  • Up to 16 microphones to be used at the same time

  • Single or mix output in each channel, independent electronic volume adjustment in each channel

  • With mic/Line conversion for more post-equipment devices

  • LED lamp post and LED display to clearly display the various operating functions and setting parameters of the receiver.

  • Use the jog dial to facilitate user operation of various functions and parameter settings

  • With AC power supply and antenna cascade design, easy to connect

  • Provide power supply function of antenna amplifier, which can supply power for GONSIN X series active antenna, increase receiving distance and stabilize receiving effect

  • 100~240V wide power supply design, suitable for more regions


Technical Specifications of Wireless Microphone GX-U304A-X\GX-U304B-X\GX-U304C-X\GX-U304D-X

ModelGX-U302A-X
GX-U304A-X		GX-U302B-X
GX-U304B-X		GX-U302C-X
GX-U304C-X		GX-U302D-X
GX-U304D-X
System parameters
Frequency range640MHz-690MHz; 530MHz-580MHz(optional)
Channels2000CH
Frequency response50-18kHz(±3dB)
Effective use distance80m(Unobstructed)
Frequency interval250kHz
Frequency width50MHz
Frequency oscillation modePLL

Receiver parameters

RF stability±0.005%(-10°C~50°C)
SNR>105dB(1kHz-A)
Max Frequency Deviation±45kHz
T.H.D<0.5%@1kHz
Maximum output voltage10dBV
Sensitivityabout 9uv(Noise<52dBr)
Reception" CPU control selection and Pilot identification reception"
MuteCPU Noise MUTE
DisplayLCD
Output impedance2.2KΩ
Output connector4CH XLR single output, XLR+TRS6.35 mix output
Volume output2 gear LINE, MIC
Power supplyAC100~240V 50/60Hz
Power8W
Product Dimensions482×265×44mm
Net weight2.6kg
Transmitter parameters
AppearanceHand
microphone		Clip
microphone		Head-mounted
microphone		Desktop
microphone
Frequency oscillation modePLL
Transmit modeCPU Control Carrier Generation and Pilot generation
Carrier frequency band640MHz-690MHz? 530MHz-580MHz optional
Transmit power3mW/30mW (optional)
Switch channels2000
Frequency stability±5ppm(-5°C~50°C)
Normal/peak frequency offset±24kHz/±48kHz
DisplayLCD
Battery lifeMaximum 11 hours(2 AA alkaline batteries)
Microphone CapsuleMoving coilCapacitiveCapacitiveCapacitive
MaterialAluminum alloy tube
+ metal mesh cover		ABS+PCABS+PCABS+PC
Dimensions265×48mm
(L×DIA)		105×66×22mm
(H×W×D)		105×66×22mm
(H×W×D)		172×136×50mm
(L×W×H)No mic rod
Mic rod length---450mm
Weight(without battery)409g162g162g730g


Features of Wireless Microphone

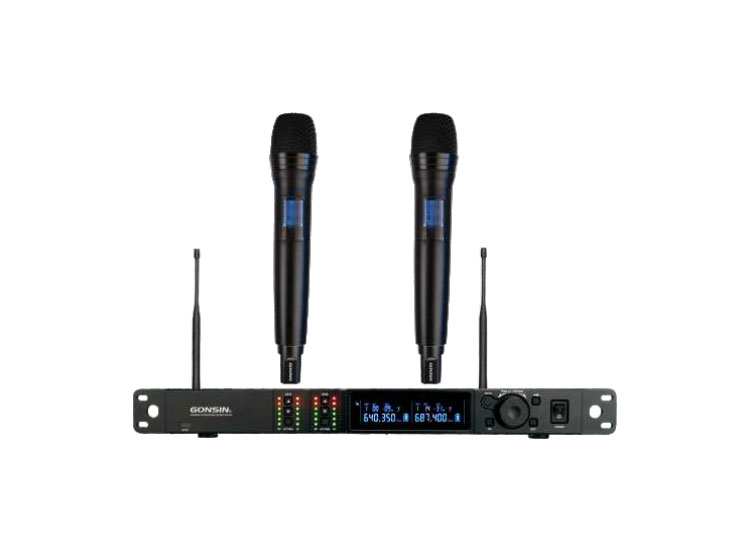

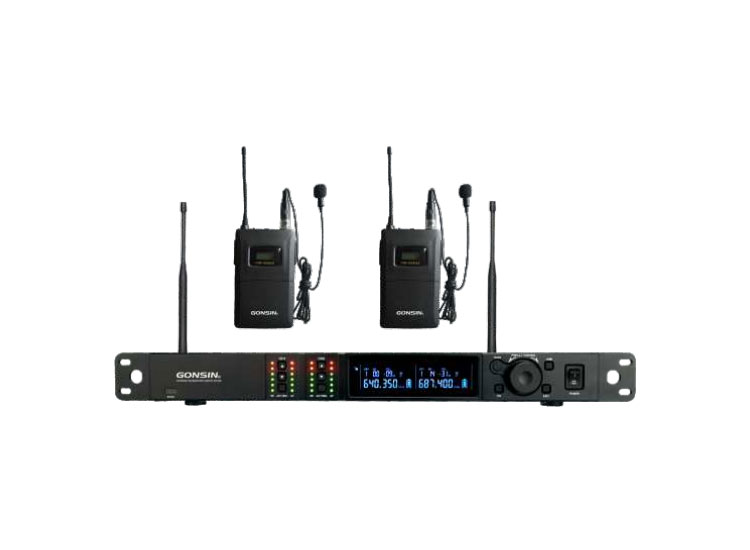

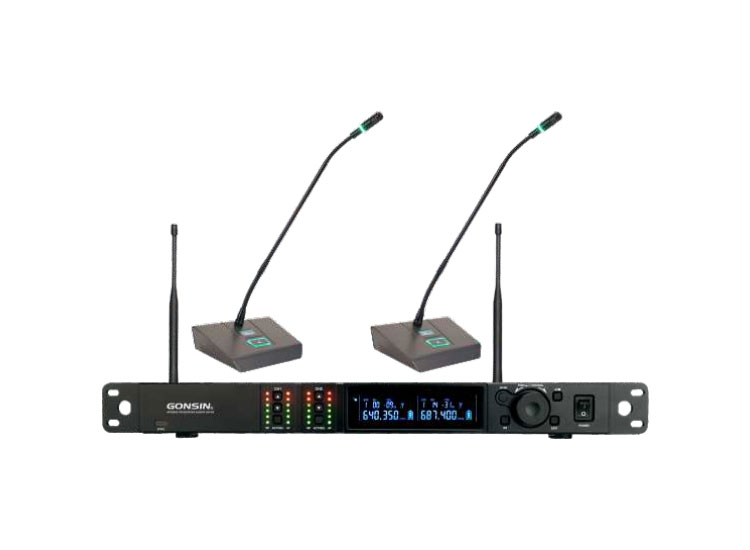

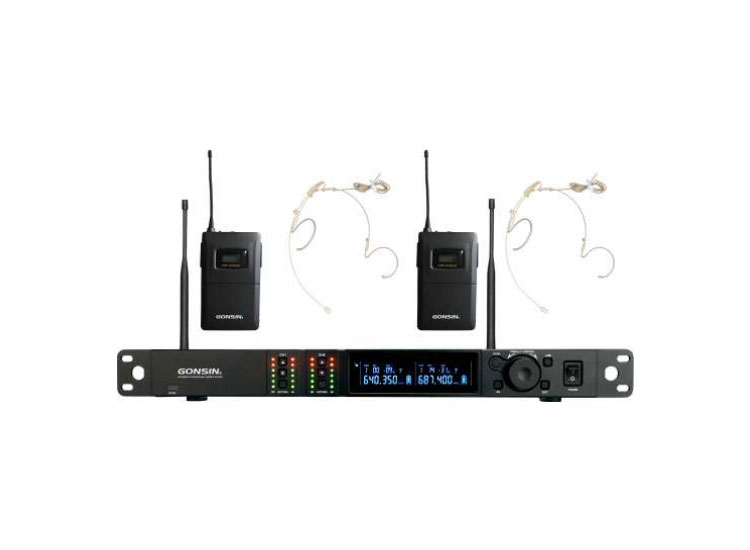

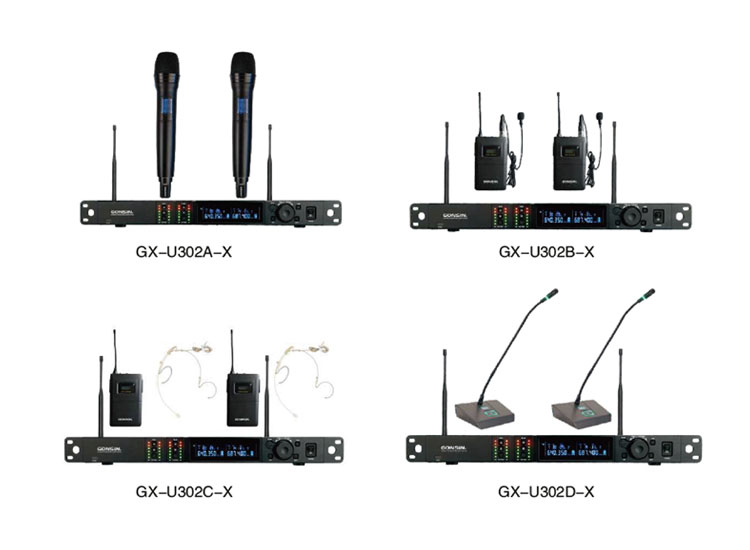

GX-U302A-X\GX-U302B-X\GX-U302C-X\GX-U302D-X Wireless Microphone

  • One receiver can be equipped with 2 hand microphones(GX-U302A-X)/clip microphone (GX-U302B- X)/ head-mounted microphone(GX-U302C-X)/desktop microphone(GX-U302D-X)

  • Receiving metal shell design, strong structure and strong isolation of harmonic interference

  • RF high dynamic range design, high-performance devices, greatly improve the anti-interference characteristics of the system, eliminate the reception of broken sound

  • Adopt antenna diversity large dynamic receiving circuit, digital pilot, RF intensity identification, noise triple mute circuit control, to make receive no dead angle

  • Up to 2000 selective frequencies and a set of 16 frequencies for self-setting and storage preferences

  • The most advanced, automatic and fast setting and undisturbed working channels

  • Modular and automatic sweep-frequency reception for signal transmission

  • Up to 16 microphones to be used at the same time

  • Single or mix output in each channel, independent electronic volume adjustment in each channel

  • With mic/Line conversion for more post-equipment devices

  • LED lamp post and LED display to clearly display the various operating functions and setting parameters of the receiver.

  • Use the jog dial to facilitate user operation of various functions and parameter settings

  • With AC power supply and antenna cascade design, easy to connect

  • Provide power supply function of antenna amplifier, which can supply power for GONSIN X series active antenna, increase receiving distance and stabilize receiving effect

  • 100~240V wide power supply design, suitable for more regions

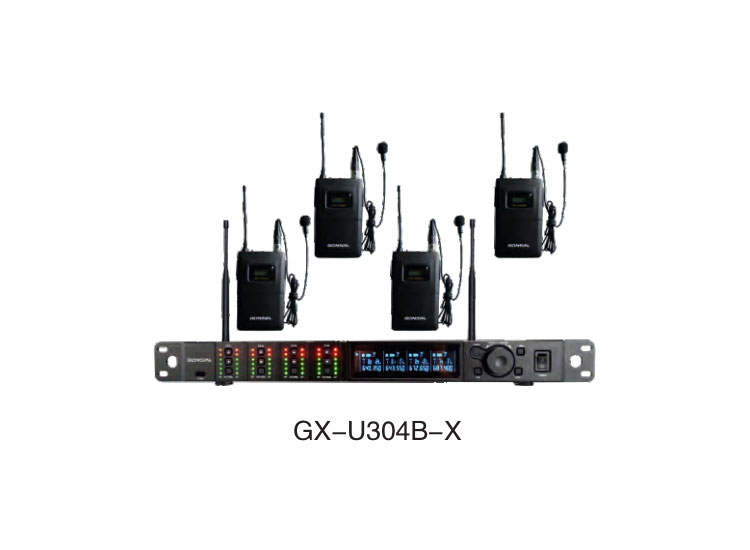

GX-U304A-X\GX-U304B-X\GX-U304C-X\GX-U304D-X Wireless Microphone

  • One receiver can be equipped with 4 hand microphones(GX-U304A-X)/clip microphone (GX-U304B- X)/ head-mounted microphone(GX-U304C-X)/desktop microphone(GX-U304D-X)

  • Receiving metal shell design, strong structure and strong isolation of harmonic interference

  • RF high dynamic range design, high-performance devices, greatly improve the anti-interference characteristics of the system, eliminate the reception of broken sound

  • Adopt antenna diversity large dynamic receiving circuit, digital pilot, RF intensity identification, noise triple mute circuit control, to make receive no dead angle

  • Up to 2000 selective frequencies and a set of 16 frequencies for self-setting and storage preferences

  • The most advanced, automatic and fast setting and undisturbed working channels

  • Modular and automatic sweep-frequency reception for signal transmission

  • Up to 16 microphones to be used at the same time

  • Single or mix output in each channel, independent electronic volume adjustment in each channel

  • With mic/Line conversion for more post-equipment devices

  • LED lamp post and LED display to clearly display the various operating functions and setting parameters of the receiver.

  • Use the jog dial to facilitate user operation of various functions and parameter settings

  • With AC power supply and antenna cascade design, easy to connect

  • Provide power supply function of antenna amplifier, which can supply power for GONSIN X series active antenna, increase receiving distance and stabilize receiving effect

  • 100~240V wide power supply design, suitable for more regions


Conference Room Microphone System

Technical Specifications of Wireless Microphone

ModelGX-U302A-XGX-U302B-XGX-U302C-XGX-U302D-X

GX-U304A-XGX-U304B-XGX-U304C-XGX-U304D-X
System parameters
Frequency range640MHz-690MHz; 530MHZ-580MHZ(optional)
Channels2000CH
Frequency response50-18KHz(±3dB)
Effective use distance80m(Unobstructed)
Frequency interval250KHz
Frequency width50MHz
Frequency oscillation modePLL
Receiver parameters
RF stability±0.005%(-10°C~50°C)
SNR>105dB(1KHz-A)
Max Frequency Deviation±45KHz
T.H.D<0.5%@1KHz
Maximum output voltage10dBV
Sensitivityabout 9uv(Noise<52dBr)
Reception" CPU control selection and Pilot identification reception"
MuteCPU Noise MUTE
DisplayLCD
Output impedance2.2KΩ
Output connector4CH XLR single output, XLR+TRS6.35 mix output
Volume output2 gear LINE, MIC
Power supplyAC100~240V 50/60Hz
Power8W
Product Dimensions482*265*44mm
Net weight2.6Kg
Transmitter parameters
AppearanceHand microphoneClip microphoneHead-mounted microphoneDesktop microphone
Frequency oscillation modePLL
Transmit modeCPU Control Carrier Generation and Pilot generation
Carrier frequency band640MHz-690MHz 530MHZ-580MHZ optional
Transmit power3mW/30mW (optional)
Switch channels2000
Frequency stability±5ppm(-5°C~50°C)
Normal/peak frequency offset±24KHz/±48KHz
DisplayLCD
Battery lifeMaximum 11 hours(2 AA alkaline batteries)
Microphone CapsuleMoving coilCapacitiveCapacitiveCapacitive
MaterialAluminum alloy tube + metal mesh coverABS+PCABS+PCABS+PC
Dimensions265*48mm(L*DIA)105*66*22mm(H*W*D)105*66*22mm(H*W*D)172*136*50mm(L*W*H)No mic rod
Mic rod length---450mm
Weight(without battery)409g162g162g730g




Contact Us

Gonsin is here to offer you the customized solutions for conference audio and video system.

Please fill in the information truthfully so that we can contact you and provide services as soon as possible.



Related Products of Wireless Microphone
Ceiling Speaker GX-SP1003B/GX-SP1003C
Ceiling Speaker GX-SP1003B/GX-SP1003C
Conference Speaker Series
Conference Speaker Series
Dual 8-inch Line Array Series Speaker
Dual 8-inch Line Array Series Speaker
Latest News of Gonsin Conference Systems

Focus on quality, customer, and innovation

Troubleshooting and Solution for Meeting Hall Sound System
Apr 23-2024
Troubleshooting and Solution for Meeting Hall Sound System
Elements of Power Amplifier and Speaker Matching in Audio Equipment
Elements of Power Amplifier and Speaker Matching in Audio Equipment

Apr 22-2024

Line Array Sound System Selection Methods and Common Problem Checks
Line Array Sound System Selection Methods and Common Problem Checks

Apr 21-2024

Troubleshooting and Solution for Meeting Hall Sound System
Apr 23-2024
Troubleshooting and Solution for Meeting Hall Sound System
Elements of Power Amplifier and Speaker Matching in Audio Equipment
Elements of Power Amplifier and Speaker Matching in Audio Equipment

Apr 22-2024

Line Array Sound System Selection Methods and Common Problem Checks
Line Array Sound System Selection Methods and Common Problem Checks

Apr 21-2024

Delivering Trust & Value
You can
trust .
Products
Paperless Conference System Model O Intelligent Noise-cancelling Array Microphone Conference Discussion System Conference Management Platform Simultaneous Interpretation System Conference Public Address System ASR Automatic Speech Recognition System Automatic Camera Tracking System Central Control System Video Matrix System Display System Conference Voting System Digital Public Address System Conference Management Software Systems Conference Accessories and Cable System Configuration Products
Solutions
International Conference Parliaments Government Conference Center Court Corporate Hospital Hotel University
Resources
Technical Help Research & Development Document Download FAQ Gonsin Institute Blog

Quick Links

About Gonsin Company News 360° Virtual Tour Projects Blog
Contact Us
Phone

+86-757-2236-0968

+86-189-2326-6901

Address

10th Floor, Block 2, Jinyuehongtai Building, No.4 Chengye Road , Fengxiang Industrial Park, Daliang, Shunde, Foshan, Guangdong, 528300, China

Gonsin Official

Gonsin E-commerce Official

Copyright © Gonsin Conference Equipment Co., LTD. All Rights Reserved.
The information and specifications included are subject to change without prior notice.
Sitemap
Privacy Policy
