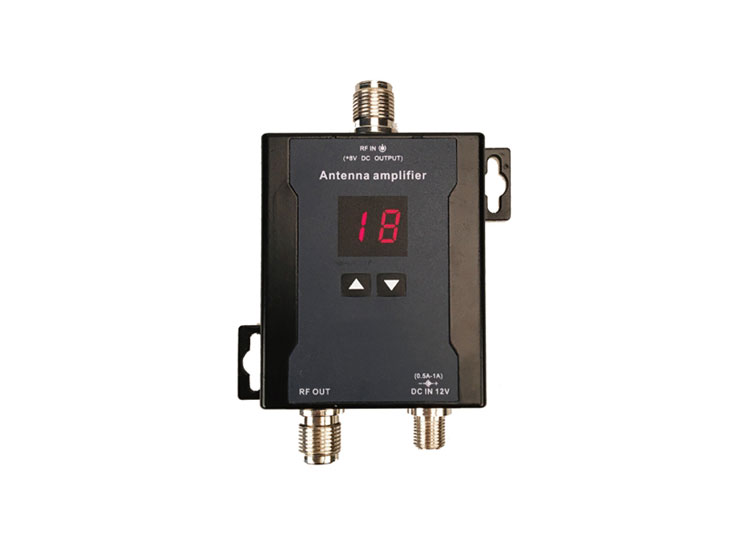

Antenna Amplifier GX-ANT203-X

Digital Antenna Amplifier
Digital Antenna Amplifier

Features of Antenna Amplifier GX-ANT203-X

  • Built-in adjustable gain amplifier, users can adjust the gain according to actual usage environment

  • Amplifier using zinc alloy shell has excellent heat dissipation characteristics, which makes more stable

  • Fixed stand can be installed independently with whip antenna, which is convenient for engineering use

  • Applicable bandwidth covers 500Hz~850MHz

  • Output -9~18dB(±1dB) continuously variable gain signal.

Technical Specifications of Antenna Amplifier GX-ANT203-X

Frequency Range500MHz~850MHz
Stepping Gain Total Gain0~+18dB(±2dB), stepping quantity: ±1dB
Stepping Attenuation Total Attenuation0~-9dB (±2dB), stepping quantity: ±1dB
ConnectorsTNC female*2
Current ConsumptionApprox. 60mA/DC8V
Power SupplyTNC female provides bias power 6~10VDC
System Impedance50Ω
Connecting Line2m
