In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology.
Stable and fixed rectangular columnar short microphone stem connected with solid metal base.
Conference terminal dual-link backup: With independent microphone digital signal output and analog signal output, when the main link fails, it can be switched to the backup link to ensure the system's normal operation.
With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.

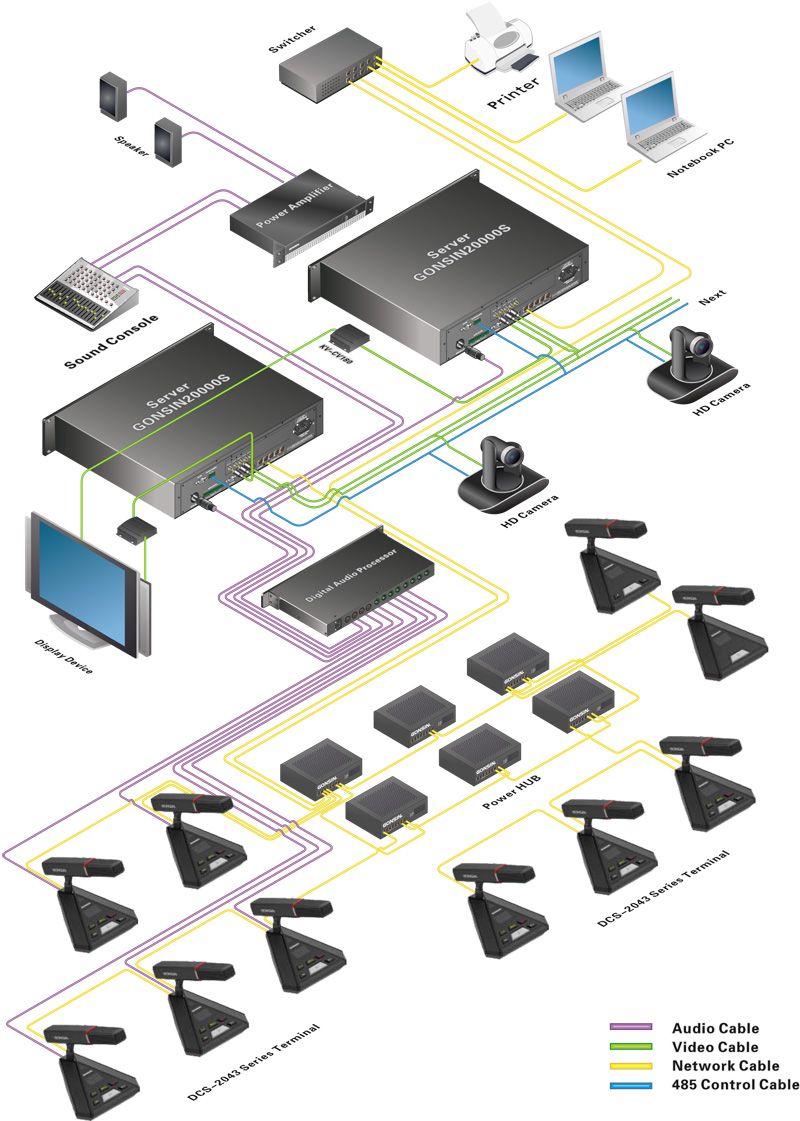

Congress terminal, power HUB and Congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.
It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.
The terminal is bottom mounted, which supports hidden or open installation, to make the desktop clearer and tidier.
Automatic restoration function: supports hot plug.
Supports 48KHz audio sample freq, acoustic frequency response can be up to 20Hz~20KHz.
AF sensitivity of each terminal (7 levels) can be adjusted separately or uniformly
Built-in high-performance DSP digital audio processor, which helps remove the useless lowfrequency and avoids low-frequency acoustical shock, improving the sharpness of sound.
Power Status Indicator for terminal
The sever comes with built-in OLED panel and navigation button to display speaking mode, system status, terminal setting and management. Language supports Chinese/ English. With rotation knob, the server can manage terminals.
Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.
With headphone jack (Ø 3.5 mm) and adjustable volume(9 levels).
Built-in MIC (Ø 3.5 mm) to connect with external MIC, which meets the requirements of different usage scenarios
Built-in left and right loudspeakers (2W) and adjustable volume(9 levels). Reasonable tune trope design, output clear and loud sound. Adjusting volume through screen touch is available.
Speaker mode: VOX, Auto, FIFO, Operator.
VOX function: in VOX mode, the unit will be activated when user speaks; VOX sensitivity can be adjust by the server ( high, middle, low); microphone time-out is adjustable ( 20-250 seconds).
1-4 delegate unit can be used at the same time
Attendance registration function: key to register, plug-in card to register(according number), plug-in card to register(non-according number), supplementary register or revocatory register.
Optional HD video camera tracking matrix, switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view
8*1+3 video matrix is built in the server, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view
Appoint any terminal as the chairman or delegate terminal
Voting: delegate can vote for Yes, No, or Abstain. Vote counting and result display are enabled automatically by PC
- Single-choice and multiple-choice voting
- First key-press and final key-press voting
Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election’
Evaluation: four buttons to evaluate. It comes with four choices “Good”, “Fair”, “Poor”, “Abstain”, or the customized evaluation way by software.
Utilize data encryption and anti-restoration technique to ensure information security.
Customized voting options and voting methods, support customized language mode or display screen
Voting: delegate can vote for Yes, No, or Abstain. Vote counting and result display are enabled automatically by PC
- Single-choice and multiple-choice voting
- First key-press and final key-press voting
Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election’
Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software.
Utilize data encryption and anti-restoration technique to ensure information security.
Customized voting options and voting methods, support customized language mode or display screen
Language interpretation:32 (1+31) channels.
Built-in language channel selector (with headphone plugged in)
Acoustic frequency response can be up to 20Hz~20KHz.
