Designing an elite sound reinforcement system requires selecting equipment tailored to the unique physical layout and acoustic requirements of your space. Unlike traditional point-source loudspeakers that scatter acoustic energy in wide, unmanaged spheres, professional line array modules are engineered to couple sound wave sources vertically. This vertical coupling creates a highly directed, coherent wavefront that limits energy loss over distance.
When choosing an ideal system, the woofer driver size dictates the system’s acoustic boundaries, power thresholds, and coverage profile. Selecting the wrong size can lead to significant issues, such as overpowering a small meeting room with low-end rumble or leaving the back rows of a large auditorium struggling to hear clear vocals. This guide breaks down the core technical differences across various formats to help you choose the best system for your property.
Understanding Line Array Terminology: Why Size Matters in Sound Reinforcement
In commercial audio, line array sizing refers directly to the diameter of the low-to-mid frequency (LF) woofer units housed inside each enclosure. The surface area of this cone determines the physics of the sound waves the system can generate.
Low-Frequency Extension: Larger driver diameters move greater volumes of air, allowing the speaker to accurately reproduce deeper bass notes without relying entirely on separate subwoofers.
Acoustic Throw Distance: The horizontal and vertical coverage control is dictated by the relationship between the wavelength of the sound and the physical size of the array. Larger arrays maintain directional control down to lower frequencies, projecting clear sound deep into wide audience zones.
Speech Intelligibility: Smaller drivers feature lighter, highly responsive cones that excel at midrange vocal articulation, making them effective for speech-heavy environments.
The Compact Performer: When to Deploy 5-Inch Line Arrays
For intimate architectural spaces requiring high vocal clarity and a low visual profile, a compact line array 5 inch module provides an ideal solution. These low-profile systems are specifically engineered to deliver clean, uncolored sound reinforcement in corporate environments without disrupting the room's interior design.
Because a compact 5-inch cone moves less air than its larger counterparts, its low-frequency response is naturally limited, typically rolling off around 90 Hz to 100 Hz. However, its lightweight design allows for excellent transient response across the human vocal range.
This format is highly effective for high-end corporate boardrooms, legislative press rooms, and localized house of worship applications under 150 square meters. When paired with a compact subwoofer to manage low-end background music, a 5-inch array delivers crisp speech intelligibility directly to the delegate floor.
The Versatile Mid-Size Solution: 8-Inch Line Array Applications
The dual 8-inch line array represents the industry standard for multi-functional venues. Balancing high power output with a manageable cabinet footprint, these systems are versatile workhorses for modern commercial integrators.

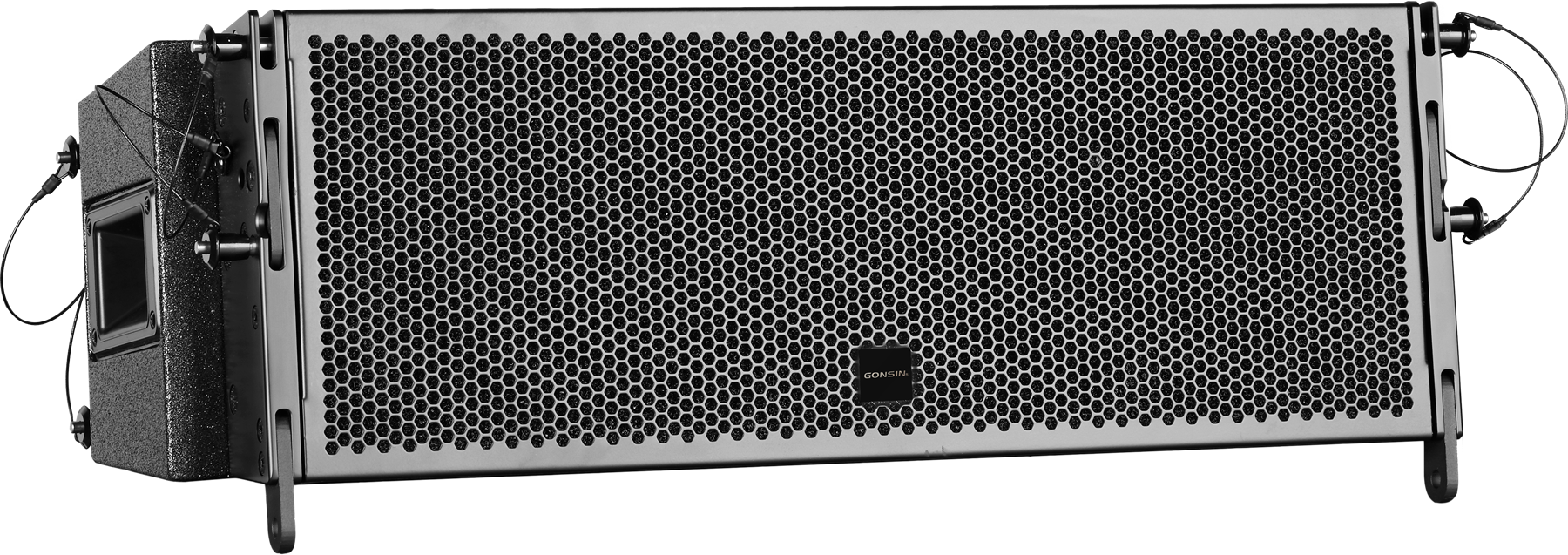

GONSIN’s flagship GX-SP2008DL-Z features dual 8-inch mid-low units paired with dual 1.4-inch titanium film high-frequency drivers. It delivers a wide frequency response of 65 Hz to 20 kHz and a maximum sound pressure level (SPL) of 126 dB.
Acoustic Spotlight: The GX-SP2008DL-Z utilizes a built-in internal crossover network alongside dedicated high-Q constant-directivity horns. This design shapes a tight 100° horizontal by 7.5° vertical dispersion pattern, focusing sound energy directly onto the audience while preventing reflections off reflective ceilings.
This mid-size architecture is ideal for hotel ballrooms, university lecture halls, and municipal theaters. It provides the low-end performance needed for media playback alongside the precise directional control required to manage tough room reflections.
Power and Precision: Sourcing the 10-Inch Line Array Series
As room dimensions grow and background noise levels increase, a mid-sized array may struggle to maintain clean headroom. Moving up to a premium 10 inch line array network provides the acoustic power needed to fill larger spaces.
GONSIN engineered the GX-SP2010DL-Z to meet these high-demand applications. This system features dual 10-inch low-frequency drivers and handles a robust 500W RMS of continuous power, generating an impressive 135 dB maximum SPL.
The larger cone area provides strong mid-bass projection, allowing the system to cut through ambient noise in deep or structurally challenging spaces. It is highly effective for large government conference halls, multi-story judicial courts, and expansive academic auditoriums where audio must travel clearly up to 40 meters without losing vocal presence.
Stadiums and Large Concerts: The Ultimate Capability of Dual 12-Inch Arrays
For large-scale public address configurations, maximum throw distance and wide dynamic range are critical requirements. Large arenas and expansive outdoor assemblies require the raw performance of a dual 12 line array speaker network.
The GONSIN GX-SP2012DL-Z is a premium two-way passive line array system designed for large venues. It features two 12-inch low-frequency drivers with large dynamic margins, paired with two British-engineered 44mm voice coil high-frequency drivers mounted to a constant-path aluminum horn.
Handling 600W RMS (and up to 2400W Peak) per cabinet with a maximum SPL of 137 dB, this system projects balanced sound over 60 meters. When paired with the GX-SP2018DSBB-Z symmetrically compressed dual 18-inch subwoofers, it creates a powerful, full-range system suitable for major convention centers, stadium sports complexes, and large-scale outdoor events.
Direct Comparison Matrix: Line Array Technical Specification Evaluated
The matrix below contrasts the operational specifications of GONSIN’s professional line array series to simplify your venue planning:
| Technical Attribute | 5-Inch Line Array | 8-Inch Line Array | 10-Inch Line Array | 12-Inch Line Array |
|---|
| Power(RMS) | 240W/480W | 400W/800W | 500W/2000W | 600W/2400W |
| Maximum/peak sound pressure level | 124 dB | 126 dB | 135 dB | 137 dB |
| Frequency Bandwidth | 90 Hz - 20 kHz | 65 Hz - 20 kHz | 50 Hz - 20 kHz | 50 Hz - 20 kHz |
| Horizontal Coverage | 100° | 100° | 120° | 120° |
| Best-Fit Applications | Small boardrooms, courts | Ballrooms, lecture halls | Large auditoriums, halls | Stadiums, exhibition centers |
Beyond Speakers: Building an Integrated Audio Ecosystem with GONSIN
A premium loudspeaker is only as good as the signal it receives. Achieving flawless audio across high-end venues requires selecting components engineered to work as a unified ecosystem. Buying mismatched hardware from separate trading vendors often introduces signal-level conflicts, hidden conversion delays, and unexpected system noise.
GONSIN provides fully integrated, turn-key commercial AV workflows. Our line array modules connect directly with our advanced multi-channel power amplifiers and high-performance digital audio processors.
Furthermore, our public address systems integrate seamlessly with our world-renowned digital discussion networks and automated camera tracking systems. By sourcing a complete, single-brand ecosystem, property operators benefit from guaranteed hardware compatibility, simplified system configuration, and predictable performance.
Experience GONSIN's Engineering Excellence
Since 2003, GONSIN has driven independent innovation in the international conference and professional audio sectors. Distributed across 140 countries, our certified ISO 9001:2015 production lines deliver reliable, field-tested solutions for high-profile summits and corporate facilities worldwide.
Ready to choose the perfect speaker layout for your next renovation project? Contact Us today to connect with our engineering design team for a customized acoustic evaluation and project quote.
Conclusion
Choosing the right line array speaker size requires matching the driver's physical capabilities to your venue's structural dimensions. While a compact line array 5 inch system provides clear vocals for small meeting spaces, larger 10 inch line array and dual 12 line array speaker networks offer the power, throw distance, and low-frequency response needed for large auditoriums and exhibition halls. Partnering with an all-in-one manufacturer like GONSIN guarantees a reliable, fully integrated audio ecosystem that delivers pristine sound to every seat in the room.
Frequently Asked Questions (FAQ)
1. Can I use a 5-inch line array for music playback events?
Yes, but because compact 5-inch enclosures have limited low-frequency output, they should be paired with dedicated subwoofers to handle the bass frequencies needed for balanced music reproduction.
2. What makes the dual 8-inch line array highly popular for multi-use halls?
The 8-inch size offers a great balance between size and power. It provides enough low-frequency output for music and high vocal clarity for speech, while remaining compact enough for low-ceiling rooms.
3. Do I need separate power amplifiers for GONSIN line array speakers?
Yes, these are passive, high-performance commercial enclosures. They should be paired with matched professional amplifiers and digital audio processors (DSP) to protect the components and tune the system to your room's acoustics.
4. How many individual speaker cabinets should I stack in a single line array column?
The size of the array hang depends on the room's depth and structural height limits. Most commercial spaces require a minimum of 4 to 8 cabinets per side to create a true line-source effect that projects sound evenly to the back of the room.
