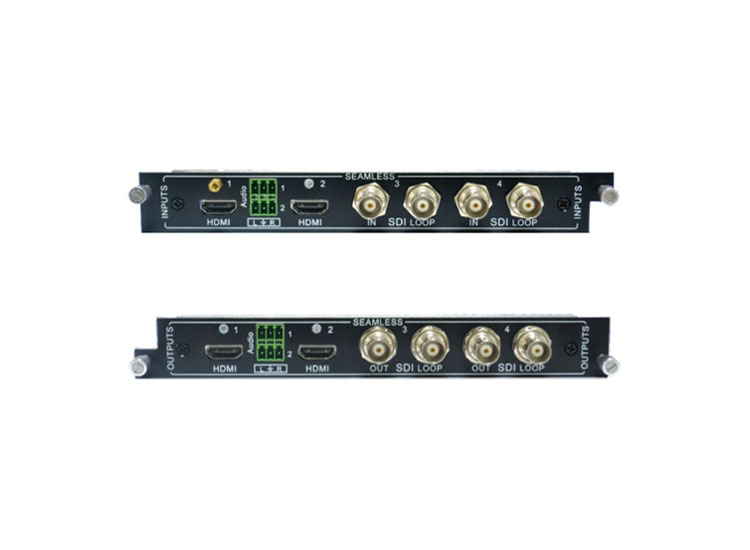

2-way SDI & 2-way HDMI Seamless Input/Output Card

Central Control System
Central Control System

Features of 2-way SDI & 2-way HDMI Seamless Input / Output Card

GX-SDI2I&HDMI2I-D

  • 2 channels for HDMI input, 2 channels for audio input, 2 channels for SDI input, 2 channels for SDI loop output

  • Supports resolution selection, and it is up to 1920x1080P@60Hz Supports HDMI 1.3 and HDCP 1.3, compatible with DVI signal

  • HDMI input audio defaults to embedded audio input, supporting embedded analog audio

  • Automatically recognize SDI, HD-SDI or 3G-SDI signal format, with upscaling function

  • Use coaxial cable for SDI output, support 70m-100m (1080P signal) transmission distance

  • Supports video upscaling, converting output source to 1080P or 1920x1200

  • Input signal card with character overlay function


GX-SDI2O&HDMI2O-D

  • 2 channels for HDMI output, 2 channels for audio output, 2 channels for SDI output, 2 channels for SDI loop output

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Supports HDMI 1.3 and HDCP 1.3, compatible with DVI signal

  • HDMI output de-embedded audio is off by default and can be turned on by command

  • Automatically recognize SDI, HD-SDI or 3G-SDI signal format, with upscaling function

  • Use coaxial cable for SDI output, support 70m-100m (1080P signal) transmission distance

  • Supports video upscaling, converting output source to 1080P or 1920x1200

Technical Parameters of 2-way SDI & 2-way HDMI Seamless Input / Output Card

Product2-way SDI & 2-way HDMI seamless input card2-way SDI & 2-way HDMI seamless output card
ModelGX-SDI2I&HDMI2I-DGX-SDI2O&HDMI2O-D
HDMI
Type of signalHDMI input×2, compatible with DVIHDMI output×2, compatible with DVI
InterfaceHDMI Type A
Color Depth8 & 10 & 12 bit8bit
Bandwidth6.75Gpbs
Audio Signal FormatEmbedded audio support PCM, Dobly Digital, DTS, DTS-HD format, external audio support PCM format
StandardHDMI1.3
EDID managementSupport EDID learning function
Transmission Distance1080P≤10m(select high quality wire)
SDI
Type of signal3G-SDI, compatible with HD-SDI, SDI (with SDI loop output)
ConnectorBNC
Input/Output LevelT.M.D.S 2.9V~3.3V
Input/Output Impedance75 Ohm
Bandwidth6.75Gbps
Maximum resolution1080P@60Hz
Color depth8&10& 12bit
Transmission Distance1080P≤100m (select high quality wire)
Audio Signal
Type of signalAnalog audio signal input×4Analog audio signal output×4
Connector3-pin phoenix contact
Audio Input Impedance>10K Ohm-
Input Impedance75 Ohm
Frequency Response20Hz~20K Hz
Transmission Distance≤10m(select high quality wire)
General
Gain0dB
Crosstalk<-50dB@5MHz
Switching Rate200ns (Maximum)
Power consumption13W12W
Working temperature0°C~+50°C
Relative humidity10%~90%
