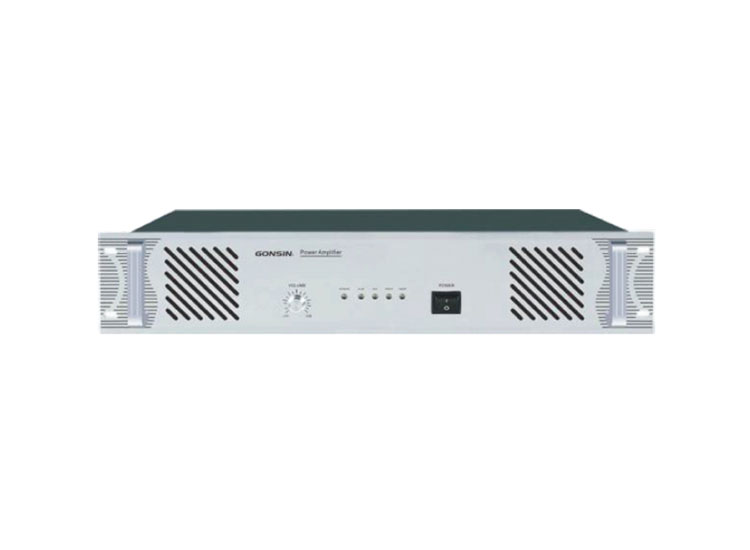

Features of GX-PA6011/GX-PA6012/GX-PA6013

  • Standard 2U chassis, aluminum panel, convenient and beautiful

  • 1 TRS 6.5 audio jack and 1 XLR audio jack input

  • 1 TRS 6.5 audio jack and 1 XLR audio jack output, convenient for cascading the next power amplifier

  • With signal indicator, protection indicator, distortion indicator, start indicator, and power indicator

  • Has protection warning function of working abnormal; It is reliable

  • With automatic induction temperature control fan system, low noise, good heat dissipation effect, fan speed increases automatically with the increase of temperature

  • 3 power output modes: 100V constant voltage output, 70V constant voltage output and 4~16 Ω constant resistance output


Technical Parameters of GX-PA6011/GX-PA6012/GX-PA6013

ModelGX-PA6011GX-PA6012GX-PA6013
Rated output power350W500W700W
Power consumption500W700W1000W
Output way70V; 100V; 4-16Ω
Power supplyAC 220V-240V/50Hz-60Hz
Product dimension485×418×88mm
Packing dimension545*490*170MM
Net weight15.9Kg18.4Kg19.7Kg
Gross weight17.9Kg20.2Kg21.7Kg

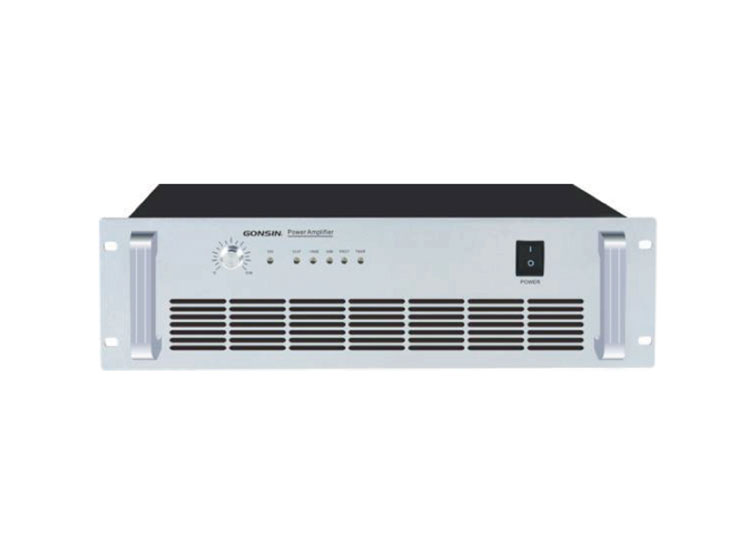

Features of GX-PA6014/GX-PA6015

  • Standard 3U chassis, aluminum panel, convenient and beautiful

  • 1 TRS 6.5 audio jack and 1 XLR audio jack input

  • 1 TRS 6.5 audio jack and 1 XLR audio jack output, convenient for cascading the next power amplifier

  • With signal indicator, protection indicator, distortion indicator, start indicator, and power indicator

  • Has protection warning function of working abnormal; It is reliable

  • With automatic induction temperature control fan system, low noise, good heat dissipation effect, fan speed increases automatically with the increase of temperature

  • 3 power output modes: 100V constant voltage output, 70V constant voltage output and 4 ~ 16 Ω constant resistance output


Technical Parameters of GX-PA601/ GX-PA6015

ModelGX-PA6014GX-PA6015
Rated output power1000W1300W
Power consumption1500W1800W
Output way70V; 100V; 4-16Ω
Power supplyAC 220V-240V/50Hz-60Hz
Product dimension483×422×132mm
Packing dimension545×490×220mm
Net weight24.5Kg26.2Kg
Gross weight27.1Kg28.6Kg

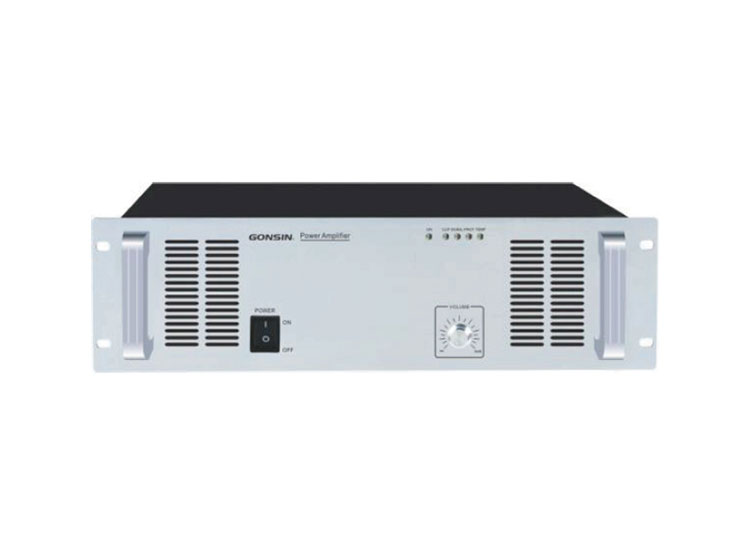

Features of GX-PA6016/GX-PA6017

  • Standard 3U chassis, aluminum panel, convenient and beautiful

  • 1 TRS 6.5 audio jack and 1 XLR audio jack input

  • 1 TRS 6.5 audio jack and 1 XLR audio jack output, convenient for cascading the next power amplifier

  • With signal indicator, protection indicator, distortion indicator, start indicator, and power indicator

  • Has protection warning function of working abnormal; It is reliable

  • With automatic induction temperature control fan system, low noise, good heat dissipation effect, fan speed increases automatically with the increase of temperature

  • 3 power output modes: 100V constant voltage output, 70V constant voltage output and 4 ~ 16 Ω constant resistance output


Technical Parameters of GX-PA6016/GX-PA6017

ModelGX-PA6016GX-PA6017
Rated output power1500W2000W
Power consumption2000W3000W
Output way70V; 100V; 4-16Ω
Power supplyAC 220V-240V/50Hz-60Hz
Product dimension483×471×132mm
Packing dimension565×555×225mm
Net weight34.1Kg40.8Kg
Gross weight36.4Kg48.6Kg
