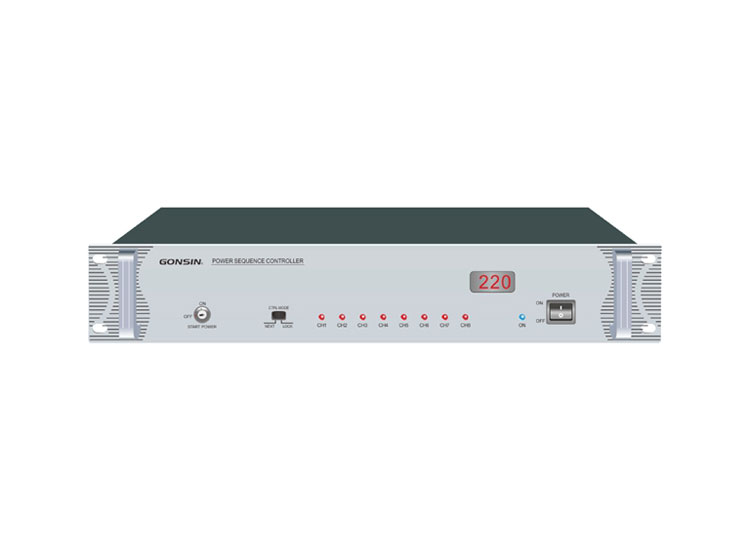

Features of Power Supply Sequencer GX-PB1405

  • Standard 2U chassis, aluminum panel, convenient and beautiful

  • With 8-bit LED indicator, it is easy to know the channel status

  • 8 groups of 16 channels power outputs, with each output AC220V

  • Equipped with electronic lock switch, with manual and automatic modes

  • 8 groups of 16 channels power sockets are connected or disconnected in turn with 1second response

  • The total capacity of power socket is 6 kVA

  • 1 short circuit fire-fighting signal input interface; support timer, intelligent controller connection, so as to realize automatic control

  • 1 short circuit trigger signal input


Technical Parameters of Power Supply Sequencer GX-PB1405

ModelGX-PB1405
Total capacity6 KVA
Power supplyAC 220V-240V/50Hz-60Hz
Power consumption50W
Product dimension484x335x88mm
Packing dimension560x430x370mm(2PCS)
Net weight5.19Kg
Gross weight6.37Kg

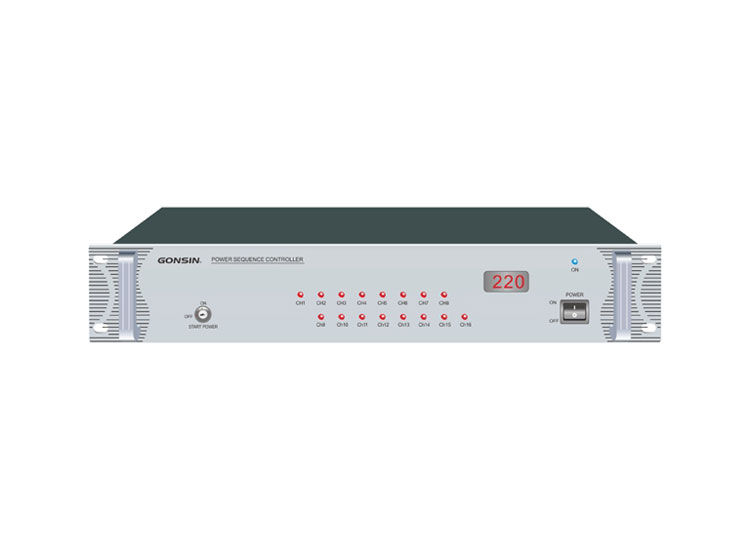

Features of Power Supply Sequencer GX-PB1406

  • Standard 2U chassis, aluminum panel, convenient and beautiful

  • With 8-bit LED indicator, it is easy to know the channel status

  • 16 channels power outputs, with each output AC220V

  • Equipped with electronic lock switch, with manual and automatic modes

  • 16 channels power sockets are connected or disconnected in turn with 1second response

  • The total capacity of power socket is 6 kVA

  • 1 short circuit fire-fighting signal input interface; support timer, intelligent controller connection, so as to realize automatic control

  • 1 short circuit trigger signal input


Technical Parameters of Power Supply Sequencer GX-PB1406

ModelGX-PB1406
Total capacity6 KVA
Power supplyAC 220V-240V/50Hz-60Hz
Power consumption50W
Product dimension484x335x88mm
Packing dimension560x430x370mm(2PCS)
Net weight5.19Kg
Gross weight6.37Kg
