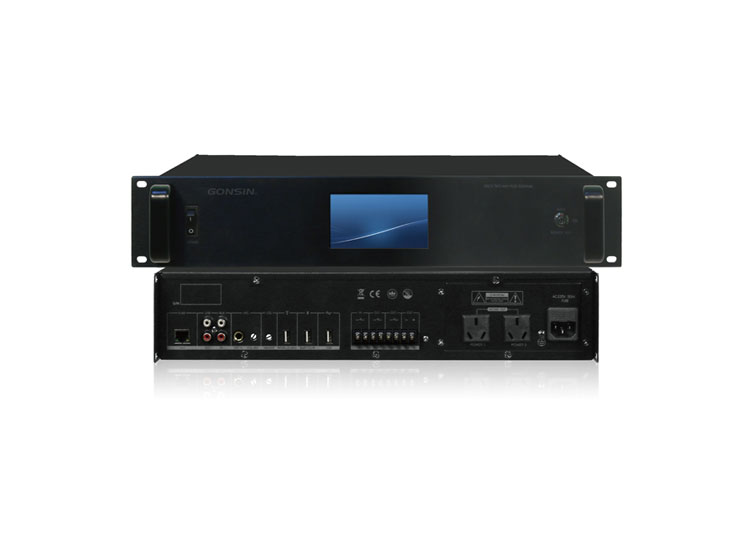

Network Broadcast Audio Decoding Terminal GX-PB8105A-K

Pa Announcement System
Pa Announcement System

Features of Network Broadcast Audio Decoding Terminal GX-PB8105A-K

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can reach, to achieve access and control of servers and other network equipment

  • With 4.3-inch color capacitive touch screen and one-key shuttle function, the interface is clear and easy to operate

  • Through the Android or IOS sub-control software, the on-demand and paging functions can be controlled in real time

  • The built-in independent audio decoding module supports the conversion of network audio signals into analog stereo signal output and realizes the playback of background music, emergency paging, alarm signals, etc. from the server system

  • It has a USB interface, supports MP3 playback, and realizes local playback of audio

  • Support 8~768Kbps high bit rate format playback, with high fidelity sound effect

  • It has 1 line input and 1 microphone input, supports local audio source playback, and the microphone volume is independently adjustable

  • It has 1 line output to connect to the power amplifier for amplified sound output

  • With 1 custom short-circuit input, 1 short-circuit output

  • With 1 emergency output, with 24V strong cut function

  • With 2 controllable power interfaces, each power supply can be automatically or manually turned on and off, the system can be set to supply power at a fixed time, intelligent environmental protection and saving

  • An offline storage module can be selected, and it can also realize timing playback and timing ringing even when it is out of the network

  • An optional USB Bluetooth module can be used to push audio to the terminal for playback via mobile phone Bluetooth

  • Optional USB 2.4G wireless microphone module to meet the needs of local microphone amplification output

Technical Parameters of Network Broadcast Audio Decoding Terminal GX-PB8105A-K

Device modelGX-PB8105A-K
Display size4.3-inch color capacitive touch screen
Network interfaceRJ45*1, 100Mbps/10Mbps
Audio interface:AUX_IN*1, MIC_IN*1, LINE_OUT*1
Memory interfaceUSB (U disk)*1, maximum support 128G
Controllable power output2 channels, total power ≤2000W
Other interfacesUSB (extended Bluetooth)*1, USB (extended 2.4G wireless microphone)*1, short-circuit input*1, short-circuit output*1, fire short-circuit output*1, 24V strong cut power output*1
Support protocolTCP/IP, UD, IGMP
Audio formatMp3
Audio mode16-bit stereo CD sound quality
Bit rate8k~768Kbps
AUX sensitivity-12dB
MIC sensitivity-40dB
Frequency response20Hz~20KHz
Harmonic distortionTHD≤0.1%
Signal to noise ratio≥65dB
Short circuit input/output0V<5A
Power supplyAC220V±10%
Power consumption45W
Standby power consumption<3W
Product size485×340×88mm
Product weight6.28Kg
Working temperature5℃~40℃
Environmental humidity20%~80% relative humidity, no condensation
