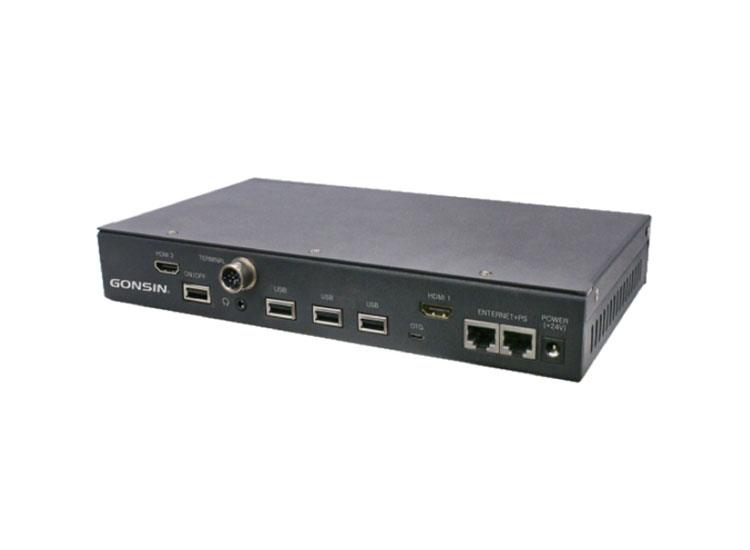

Connector DCS-CON2062D

Connector DCS-CON2062D
Connector DCS-CON2062D

Basic Functions of Paperless Conference System Configuration Connector DCS-CON2062D

  • Co-work with Touch Control LCD chairman/delegate lifter to realize discussion functions

  • Support independent adapter to supply power and GONSIN20000S system distributed power and intelligent grouping management

  • The conference terminal, power HUB, and conference server are all connected by network cable. Flexible cabling reduces project workload, makes large-scale construction easier

  • It supports daisy-chain connection, star connection, and mixed connection. The system is highly stable and reliable. The breakdown of one extension won't influence the other extensions, and the malfunction of one attachment among the extensions won't influence the system's work

  • Automatic restoration function: supports hotplug


Paperless Terminal Connector Configuration

  • Attendance registration function: registration is initiated and ended by the paperless terminal(chairman), the results can be displayed on the LCD screen

  • Voting function: started and ended by the paperless terminal(chairman), the results can be displayed on the LCD screen

  • Customized voting function: The paperless terminal(chairman) can initiate and end the customized voting, voting results can be displayed on the paperless terminal. The voting content is defined by GONSIN Intelligent Conference management software

  • Call service: participants place a call via a paperless terminal. The service staff will provide the service according to the request displayed on the paperless call service terminal. Basic functions: paper, pen, tea, towel and etc, the functions can be customized

  • Browsing conference files: before the conference, the digital files could be preset on the paperless terminal, the user could open and browse the files; it supports DOC, DOCX, PDF, PPT, PPTX, JPG, PNG, BMP, MP3, MP4, AVI, FLV, WMV, and other format files. Files can be displayed in screen sharing status

  • Sharing screen: when the user is browsing the files via paperless terminal, it can share the screen and other terminals could display the same content, including page scroll, paging, notes, and others operation

  • Files note function: users can make notes on files, notes can be saved on the server

  • Screen sharing and synchronizing screen function: user can initiate screen sharing, all terminals will be displayed the same content; After exit from the sharing screen, the user can synchronize the screen to the sharing one manually. The sharing content can be displayed on other display devices simultaneously

  • Support internal messages function, user can communicate via sending internal messages

  • Support digital whiteboard function, user can create whiteboard quickly, the content will be saved in the server

  • Support surfing the internet via the browser

  • Support reading files from USB flash disk

  • Support connection to exterior video by code

  • System capacity: unlimited(wired connection)

  • The serial number is one and only, the conference system supports automatically or manually assign an ID to the corresponding equipment

  • Randomly set anyone terminal as Chairman Terminal


More functions of The Paperless Chairman Terminal are as below.

  • Support sending mass system messages to all paperless delegate terminals

  • Support managing the conference topic, allow users to initiate the registration and voting

  • Allow user to initiate quick voting

  • Support mandatory sharing screen

  • Check conference information, such as voting process and result, call service information, screen sharing information and etc.


Discussion System

  • With headphone jack (Ø 3.5 mm) and adjustable volume (9 levels)

  • Built-in MIC (Ø 3.5 mm) to connect with external MIC, which meets the requirements of different usage scenarios

  • Supports 48kHz audio sample freq, the acoustic frequency response can be up to 20Hz~20kHz

  • AF sensitivity of each terminal (7 levels) can be adjusted separately or uniformly

  • Built-in high-performance DSP digital audio processor helps remove the useless low-frequency and avoid low-frequency acoustical shock, which better improves the sharpness of sound

  • Microphone modes: VOX, Auto, FIFO, Operator

  • VOX mode: in VOX mode, the unit will be activated for user speaks; VOX sensitivity can be adjusted by the server ( high, middle, low); microphone time-out is adjustable ( 20-250 seconds)

  • 1-4 delegate units can be used except the chairman unit

  • Supports automatic video tracking (SD and HD), with the preset panoramic position. Perfectly matched with a camera or plug-in video

  • Support 32 (1+31) channels simultaneous interpretation

  • Select interpretation channel and adjust the volume on the paperless LCD screen

  • Acoustic frequency response can be up to 20Hz~20kHz


More functions of The Paperless Chairman Terminal are as below.

  • Chairman terminal can be activated at any time without presetting mic limit

  • Chairman priority button to override all active delegate terminals

Technical Parameters of Paperless Conference System Configuration Connector DCS-CON2062D

Universal Specifications
InstallationHidden Installation
Connection MethodCable
SystemAndroid
Dominant Frequency1.8G
Memory4G, DDR3
Internal Storage Capacity16GB
InterfaceUSB×3/HDMI×2/RJ45×2/3.5 mm stereo jack×1
Power24V
Power SupplyAdapter/Server/Power HUB
Max Power Consumption25W
Operating Temperature0~45°C
Storage Temperature-20~50°C
Discussion
Frequency Response20Hz~20kHz
Sensitivity-46 dBV/Pa
VOX SensitivityH/M/L(76dB/80dB/82dB)
db20dBA(SPL)
Max SPL125dB(THD<3%)
THD<0.05%
SNR≥96dB
Simultaneous Interpretation
Frequency Response20Hz~20kHz
THD(THD)<0.3%
SNR≥95dB
Channel32channel
