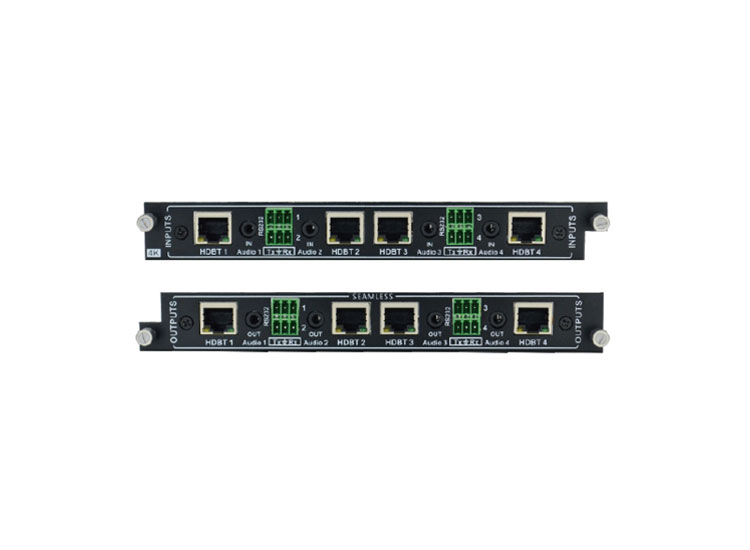

4-way HDBaseT Seamless Input/Output Card

Centralised Control System
Centralised Control System
Get A Quote
Features
Technical Parameters

Features of 4-way HDBaseT Seamless Input / Output Card

GX-HDBaseT4I-D

  • 4 channels for HDBaset input, 4 channels for audio input, 4 channels for RS- 232 input/output

  • Supports input resolution selection, and the default is 1920x1080P@60Hz

  • Input audio defaults to embedded audio input, supporting embedded analog audio

  • Features RS232 ports for two-way RS232 pass-through

  • The transmission distance can up to 70 meters at 1080P


GX-HDBaseT4O-D

  • 4 channels for HDBaset output, 4 channels for audio output, 4 channels for RS-232 input/output

  • Supports input resolution selection, and the default is 1920x1080P@60Hz

  • The output de-embedding audio is turned on by default and can be turned off by instruction

  • Features RS232 ports for two-way RS232 pass-through

  • The transmission distance can up to 70 meters at 1080P

Technical Parameters of 4-way HDBaseT Seamless Input / Output Card

Product4 channels seamless HDBaseT Input Card4 channels seamless HDBaseT Output Card
ModelGX-HDBaseT4I-DGX-HDBaseT4O-D
Video signal
Type of signal4 channels for HDBaseT signal
ConnectorRj45, two color indicators with yellow and green
Input LevelT.M.D.S 2.9V~3.3V
Input Impedance100 Ohm
Bandwidth10.2Gbps
ResolutionUp to 1920×1200@60Hz, seamless
Video Signal FormatEmbedded audio support PCM, Dobly Digital, DTS, DTS-HD format, external audio support PCM format
HDMI standardHDMI1.3
EDID and DDCSupport EDID manual management, compatible with HDCP
Transmission Distance1080P≤70m(select high quality wire)
Audio signal
Signal typeAnalog audio signal input×4Analog audio signal output×4
Connector3.5mm mini jack
Audio input impedance>10K Ohm-
Input impedance75 Ohm
Frequency response20Hz~20K Hz
Transmission Distance1080P≤70m(select high quality wire)
Control signal
Type of signalRS232 control signal (pass-through) ×4
Connector3-pin phoenix contact
ProtocolSupport RS232 protocol
General
Gain0dB
Crosstalk<-50dB@5MHz
Switching Rate200ns(Maximum)
Power consumption21W
Working temperature0°C~+50°C
Relative humidity10%~90%
