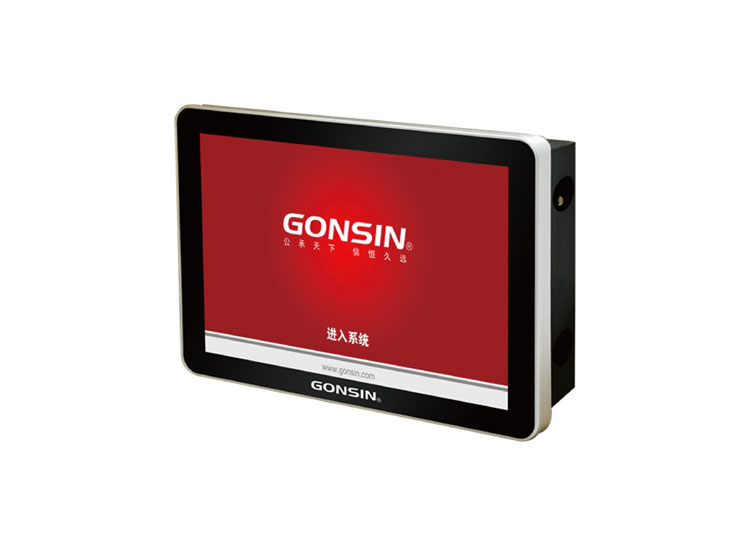

10 inch Wall Mounted Touch Panel GX-TP10S2

10 inch Wall Mounted Programmable Touch Panel GX- TP10S, based on Android 5.1.1deep customization and optimization, can run smoothly in the control interface software and other commonly used software.

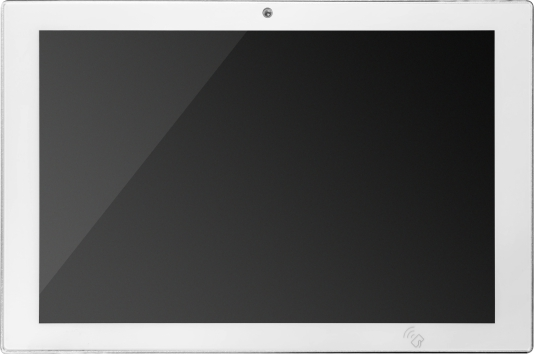

1 gx tp10s

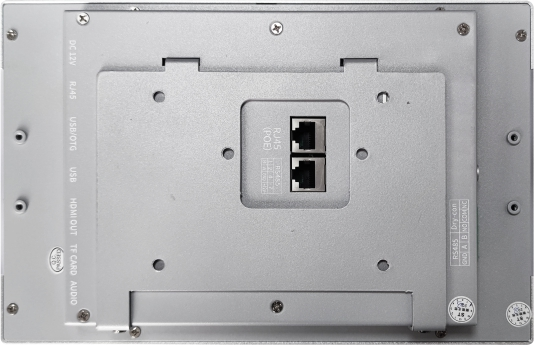

2 gx tp10s
1 gx tp10s
2 gx tp10s

Features of 10 inch Wall Mounted Touch Panel GX-TP10S2

  • Adopt embedded installation design, featuring an elegant, streamlined appearance, exquisite craftsmanship, and easy installation

  • Based on Android independent customized system, embedded central control system control software for smooth control

  • Quad-core 64-bit Cortex-A55, main frequency 2.0GHz CPU, 2G running memory, 16G internal storage, support optional TF card expansion to 128G

  • Adopt 10.1 inch 16:10 full-viewing angle IPS screen, 1280×800 resolution, with anti-light interference function to ensure the accuracy of operation

  • Adopt projected capacitive screen, support 10-point touch, support handwriting and multi-touch gestures, touch speed less than 3ms, accuracy and convenient to use, easy to maintain

  • With 2-way USB interface, 1 of which supports OTG function

  • With 1-way HDMI2.0 output, the default resolution of 1920 × 1080

  • With a 1-way 802.11b/g/n wireless card, support for wireless connection

  • With two 10/100Mbps adaptive network interfaces, can be conveniently connected to the side or back based on the installation site

  • Support 1-way Phoenix terminal RS485 interface, 1-way RJ45 RS485 interface, can be selected according to the installation site side/back connection, engineering installation is more convenient

Technical Parameters of 10 inch Wall Mounted Touch Panel GX-TP10S

CPURk3568, Quad-core 64-bit Cortex-A55, 2.0GHz
GPUARM G52 2EE, support 4K 60fps H.265/H.264/VP9 video decoding
Memory

2G DDR4 memory (optional 4G), 16GB internal storage (optional 32G), support for TF card, can be expanded to 128

Display

10.1-inch full-viewing angle IPS screen, resolution: 1280 x 800,

brightness: 300cd/m

Touch PanelProjected capacitive 10-point touch
Camera1/2.9" inch CMOS, maximum pixel 1920*1080, H61°×V35°viewing angle
HDMI Interface1×HDMI2.0 OUT, default resolution 1920×1080
USB2×USB 3.0, 1 of which supports OTG function
Networking

1×10/100Mbps adaptive network port (2×RJ45 interface)

1×802.11b/g/n wireless network card

Bluetooth1 way Bluetooth 4.1
Audio Output

1×3.5mm headphone port output.

2×8Ω 1W dual-channel speaker outpu

Expansion Interface

1×RS-485 (1×RJ45 connector, 1×Phoenix terminal)

1×RELAY interface

Power supplyDC 12V, POE power supply (IEEE802.3af/at standards)
Power Consumption

Power consumption of the total power consumption ≤ 12W,

standby power consumption ≤ 1

Operating Temperature-5~45°C
Operating Humidity30%~85%
Storage Temperature-10~50°C
Storage Humidity10%~90%
Dimensions(W×H×D)254×164×30mm
Weight1.35kg
