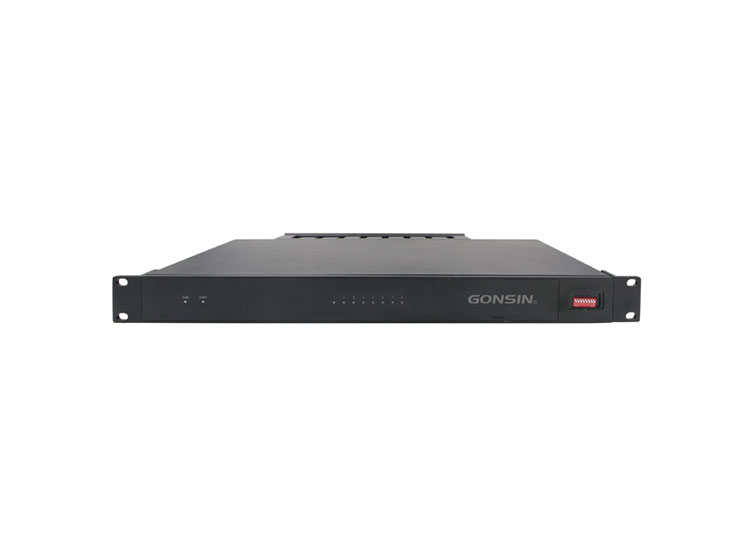

Power Manager GX-P708S/GX-P708S6

It is applied to control the lights power and other devices' power in various conference venues, supporting power input and output by strong current or weak current. With rack-mount design, it can be installed in 19 inches standard cabinet.

Centralised Control System
Centralised Control System

Features of Power Manager GX-P708S/GX-P708S6

  • Built-in power management embedded software, can realize parameter setting, timing programming, real-time control of equipment switching, delay, real-time monitoring channel voltage, current function

  • New rack-mount design, can be installed in 19-inch standard cabinets

  • The host panel is equipped with CAN status indicator, serial communication indicator and control status indicator, which can visualize the working status of the equipment.

  • 8 high-current relays with normally open/closed contacts, each single relay has a pair of normally open/closed contacts.

  • Use with the central control system

  • Support the host double-open function, with manual forced switch, can be detached from the host manual control

  • With any change of network ID setting function

  • Support CAN bus communication and manual control of each channel switch of the two control modes (GX-P708S model)

  • With TCP/IP communication host with CAN bus, RS232, TCP/IP, manual control mode, support for docking the public trust conference management system, support for system visualization management (GX-P708S6 model)

Technical Parameters of Power Manager GX-P708S

Single way power≤2200W
Three sets of LED power per channel≤360W
4-10 sets of LED power per channel≤60W
More than 10 sets of LED power per channel≤18W
Total power≤16000W
Communication MethodsGX-P708S:Manual,CANbus
GX-P708S6:Manual,CANbus,RS232,TCP/IP
Control MethodsBus/Manual
Power Supply24V DC bus power
Relay channel number8 channels
Contact StructureA pair of normally open, normally closed contacts
InstallationRack-mounted
Dimensions(L×W×H)485×280×44mm
Weight3.4Kg
