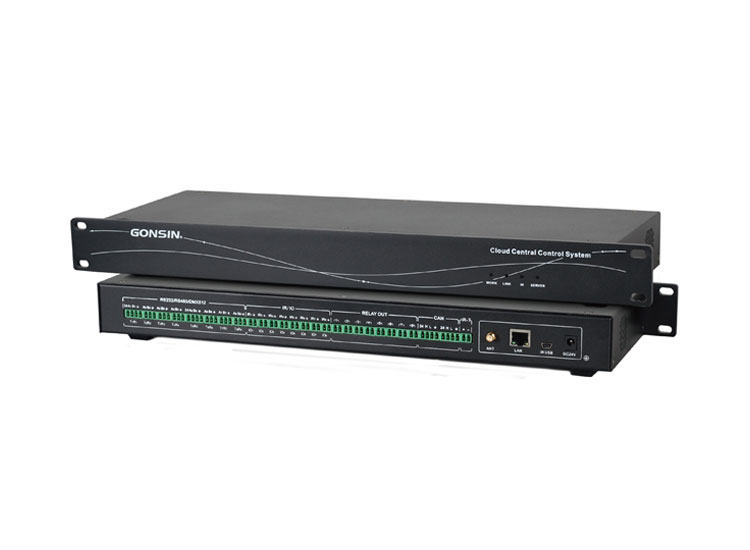

Central Control System Server GX-CLOUD710S

GX-CLOUD710S central control server is based on cloud network communication technique, supporting cloud automatic system diagnosis, cloud backup and restore capability, remote control, remote commissioning during installation and remote appointment and remote debugging after installation. It applies multi-functional interface design, all serial ports and IO ports can be customized, which meet the demand of various engineering applications; Open and modular user programming interface allows user to control various devices and complicated programmatic interfaces with highly flexible programming language; the system can be expanded by wireless or wired method, a single system expansion is up to 65,535bus devices.

Central Control System
Central Control System

Features of Central Control System Server GX-CLOUD710S

  • Compact design, support standard cabinet installation, the front panel has a working indicator, connection indicator, infrared learning signal indicator, infrared sensor window, cloud service indicator can directly display the host working status

  • Designed based on cloud technology, support for automatic system cloud diagnostics, cloud backup, cloud recovery, to ensure stable system operation and prevent accidental loss of data

  • Support for single-system, multi-system deployment platform cluster management, to achieve interoperability and mutual control between systems, support for hierarchical authority management.

  • Platform cluster management supports three ways: locally deployed servers, private cloud deployment servers and shared cloud servers.

  • Support interconnection and mutual control of LAN devices, support interconnection and mutual control of Internet devices after system cloud deployment, support remote control, remote debugging, remote reservation and remote troubleshooting.

  • The system adopts TEA+SSL encryption algorithm, which solves the confidentiality of network data transmission from the origin of data.

  • Support Huawei Internet of Everything platform, Ali Internet platform, conference management system, monitoring management system, access control system, intelligent parking system and other system platform docking.

  • Support for the Internet of Everything, access to CAN, I / O contact, IR control, RELAY, RS232, RS485, DMX512, TCP, UDP, API interface (http), SDK development kit docking, database, the system is seamlessly docked with the public trust meeting management system, support for system visualization and management.

  • With timeline multi-threaded event editing function

  • Support voice control, voice feedback function

  • Automatic clock synchronization function, can accurately execute the user-defined time reservation function, can be accurate to the year, month, day, minute, hour and second.

  • The system can be expanded by wireless or wired, and the single system supports the expansion of 65535 bus devices.

  • The system supports self-backup function of the host and dual-machine backup function, which has high security performance.

  • With open and modularized programming mode, supporting a variety of controls, easy-to-learn programming and high flexibility.

  • Support Harmonyos terminal, Android terminal, IOS terminal, Windows terminal, 4- inch/7-inch touch panel control.

  • Support saving and querying of operation records

  • The human-computer interaction interface supports dynamic control display, video conference address book dialing, player list control, dynamic icon display and other functions.

  • Configuration of 4-core 1.4GHz multi-threaded multi-core processor, 32-bit embedded processor, 1G memory, 8G Flash memory.

  • Cloud host adopts multi-functional interface design, all serial ports and IO ports support customization, port multiplexing, a cloud host to meet a variety of different engineering applications interface requirements

  • With 2 groups of CAN bus control interface, baud rate of 125Kbps, a single centralized control host can connect up to 220 terminals.

  • With 8 RS-232/RS-485/DMX-512 interfaces, using 3.8mm phoenix terminal interface, the first and the fifth road support

  • 24V power supply output

  • Support 4-channel contact output, each channel can support 30V/1A DC, 125V/0.5A AC loads.

  • With 8 IR infrared emission control interface / IO digital signal input and output interfaces, support for full-band carrier infrared modulation signal transmission

  • With network LAN interface, support for TCP, UDP, API interface (http), SDK development kit docking, database docking

  • With IR USB infrared learning port, with the infrared sensor window/IR-T connection port, can be infrared remote control code learning to the centralized control host, to achieve centralized control

  • Support for interface expansion, CAN bus terminals, protocol control terminals, digital input/output terminals, contact terminals can be selected to expand the interface to realize the control of more devices, the expansion of the terminal and the central control host using a network connection, support for remote management of equipment.

  • Interface over-voltage and over-current protection, anti-static shock 20KV

  • Internal power supply voltage 24V, power consumption <5W

Technical Parameters of Central Control System Server GX-CLOUD710S

Memory1G RAM, 8G Flash memory
Main frequency4-core CPU, 1.4GHz main frequency, 32-bit embedded processor
CommunicationsCAN Ethernet WIFI TCP/IP
Digital I/O portsSupport 8-way I/O digital signal input and output (multiplexed with infrared port
IR portsSupport 8-way I/O digital signal input and output (multiplexed with infrared port
RS-232/RS-485/DMX512 Port8-way, support RS-232/RS-485/DMX512, port parameter customization, the first 5-channel support 24V power output
RELAY OUT portSupport 4-way RELAY OUT contact, support 30V/1A DC, 125V/0.5A AC loads
CAN bus signal management2 ways, support DC24V power supply, each bus can support up to 110 terminal devices.
Network PortSupport TCP, UDP, API interface (http), SDK development kit docking, database docking
Power supplyInternal power supply voltage 24V, power consumption <5W
Dimensions (L×W×H)483×145×44mm
Weight (L×W×H)2.5Kg

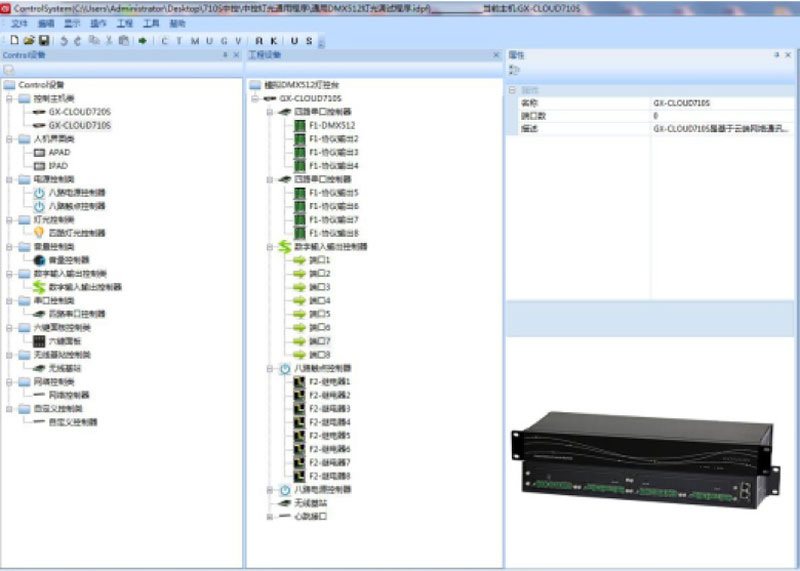

Central Programming Software of Central Control System Server GX-CLOUD710S

Central Control System Server GX-CLOUD710S

  • Open and modular user programming interface allows users to control various devices with highly  flexible and user-friendly programming language

  • The software support C language programming and Chinese programming that imitates human mind

  • Object oriented programming interface, includes all devices involved in the project, Chinese/English interface is optional

  • Powerful software comes with user-defined functions, macroinstruction application, macro  application packaging, precise time line

  • According to user's demand, the system control function and touch screen's operation interface can be customized, supporting two-touch and three-touch multiple sub-page programming interface with animation effect and other functions

  • Self-defined time appointment function via touch control panel

  • Supporting multiple programs switching
