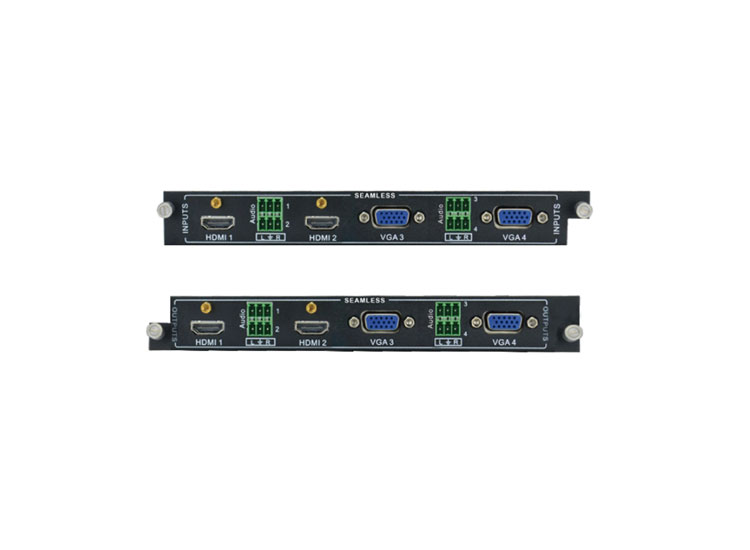

2-way VGA & 2-way HDMI Seamless Input/Output Card

Central Control System
Central Control System

Features of 2-way VGA & 2-way HDMI Seamless Input / Output Card

GX-VGA2I&HDMI2I-D

  • 2 channels for HDMI input, 4 channels for audio input, 2 channels for VGA input

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Supports HDMI 1.3 and HDCP 1.3, compatible with DVI signal

  • HDMI input audio defaults to embedded audio input, supporting embedded analog audio

  • Manually select VGA (RGBHV), YPbPr, S-VIDEO or C-VIDEO signal format

  • VGA signals support embedded analog audio, and audio and video synchronization (if no video, embedded audio can not be transmitted)

  • Supports video upscaling, converting output source to 1080P or 1920x1200

  • Input signal card with character overlay function


GX-VGA2O&HDMI2O-D

  • 2 channels for HDMI output, 4 channels for audio output, 2 channels for VGA output

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Supports HDMI 1.3 and HDCP 1.3, compatible with DVI signal

  • HDMI output de-embedded audio is off by default and can be turned on by command

  • Manually select VGA (RGBHV), YPbPr, S-VIDEO or C-VIDEO signal format.

  • VGA signals support embedded analog audio, and audio and video synchronization (if no video, embedded audio can not be transmitted)

  • Supports video upscaling, converting output source to 1080P or 1920x1200

Technical Parameters of 2-way VGA & 2-way HDMI Seamless Input / Output Card

Product2-way VGA & 2-way HDMI seamless input card2-way VGA & 2-way HDMI seamless output card
ModelGX-VGA2I&HDMI2I-DGX-VGA2O&HDMI2O-D
HDMI
Type of signalHDMI input×2, DVI compatible
InterfaceHDMI Type A
Color Depth8 & 10 & 12 bit8bit
Bandwidth6.75Gpbs
Audio Signal FormatEmbedded audio support PCM, Dobly Digital, DTS, DTS-HD format, external audio support PCM forma
StandardHDMI1.3
EDID managementSupport EDID learning function
Transmission Distance1080P≤10m(select high quality wire)
VGA
Type of signalVGA (RGBHV), YPbPr, S-VIDEO, CVBS
InterfaceD-Sub
NumberInput×2Output×2
Coupled inputOnly AC Coupled-
BandwidthYPbPr:170MHz; CVBS:150MHz; VGA:170MHz340MHz(-3dB)
Input/Output Level0.5~2.0Vp-p
Input/Output Impedance75 Ohm
Switch typeVertical spacing
Frequency Response20Hz~20K Hz
Transmission Distance1080P≤10m(select high quality wire)
Audio Signal
Type of signalAnalog audio signal inpu×4
Connector3-pin phoenix contact
Audio Input Impedance>10K Ohm
Input Impedance75 Ohm
Frequency Response20Hz~20K Hz
Transmission Distance≤10m(select high quality wire)
General
Gain0dB
Crosstalk<-50dB@5MHz
Switching Rate200ns (Maximum)
Power consumption12W8W
Working temperature0°C~+50°C
Relative humidity10%~90%
