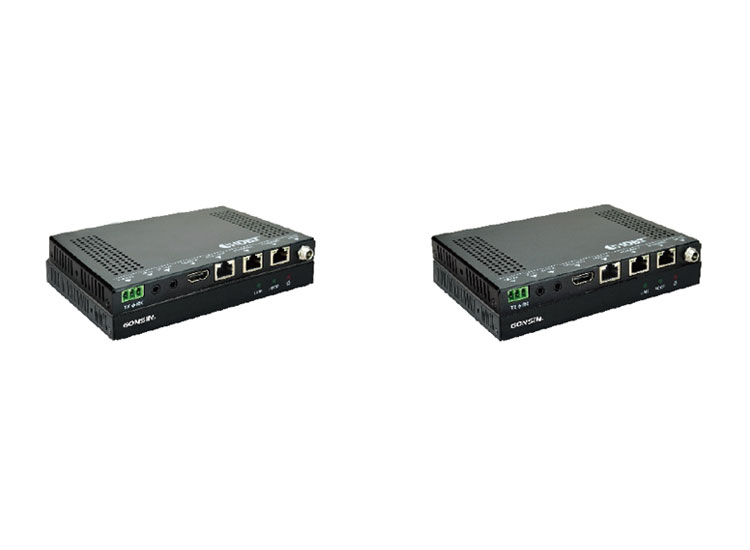

HDBaseT Extenders GX-TF201T & R-D

4k Hdbaset Extender
4k Hdbaset Extender

Features of HDBaseT Extenders GX-TF201T & R-D

  • Compose of HDBaseT Transmitter GX-TF201T-D and HDBaseT Receiver GX-TF201R-D

  • Highest resolution up to 4Kx2k/60Hz

  • Compliant with HDCP2.2 standard

  • Maximum transmission distance is 70 m for 4K*2K HDMI

  • Maximum transmission distance is 100 m for 1080P HDMI

  • Ethernet network signal maximum transmission distance is 100 m

  • Support bi-directional PoC

  • Support IR/RS232/CEC pass through

Technical Parameters of HDBaseT Extenders GX-TF201T & R-D

ProductHDBaseT TransmitterHDBaseT Receiver
ModelGX-TF201T-DGX-TF201R-D
Input1*HDMI(Type A HDMI Female)1*HDBaseT(RJ45 Connector)
Output1*HDBaseT(RJ45 Connector)1*HDMI(Type A HDMI Female)
Ethernet Connector2*ETHERNET(RJ45 Connector)
Ethernet control speedMaximum distance adaptive 10M/100M, full or half duplex
Control Ports1*IR IN(3.5mm jack),1*IR OUT(3.5mm jack)
(pass-through)1*RS232(3pin Phoenix Contact
Transmission ModeHDBaseT
Transmission distance1080P ≤ 100m, 4K*2K ≤ 70m
Bandwidth10.2Gbps
StandardHDMI1.4 & HDCP2.2
Temperature0~50°C
Reference Humidity0% ~ 90%
Power supplyInput: AC100 ~ 240V50/60Hz, Output 24V DC 1.25A
Power consumption10W
Dimension(W*D*H)152*104*16.2mm
Weight235g241g
