Hdbaset Receiver

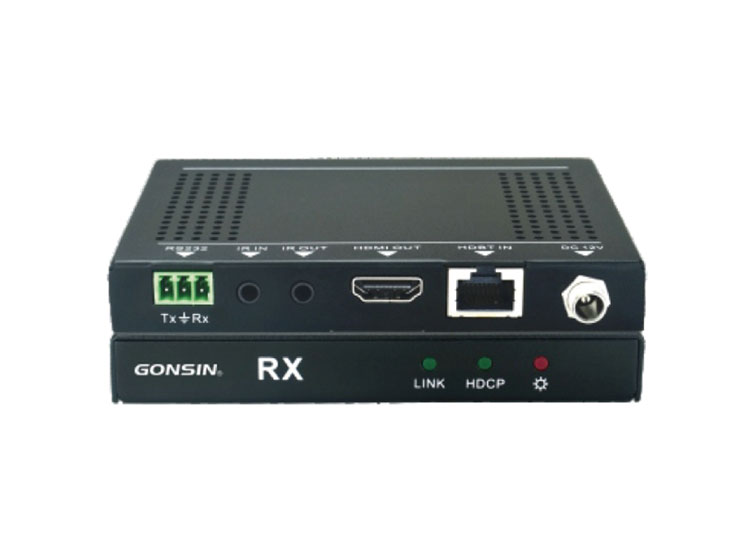

Features of GX-TF101R-D

  • Support Full HD: Delivers high resolution image (1080P/3D/4K*2K)

  • Maximum transmission distance is 70 m for 1080P and 40m for 4K*2K over singleCAT5e/ CAT6 cable

  • HDCP2.2 and HDMI2.0 compliant

  • Support CEC/IR/RS232 pass through

  • Support bi directional power supply function

  • Use HDBaseT technology

  • LED indicators show work status


Technical Parameters of GX-TF101R-D

Input1*HDBaseT(RJ-45 Connector)
Output1*HDMI(Type A HDMI Female)
Control Ports (pass-through)1*IR IN(3.5mm jack)
1*IR OUT(3.5mm jack)
1*RS232(3pin Phoenix Contact
Transmission ModeHD BaseT
Transmission Distance4K*2K (≤40m),1080P (≤70m)
Bandwidth10.2Gbps
HDMI StandardSupport HDMI2.0 and HDCP2.2
Power SupplyInput: 100V AC ~ 240VAC, 50/60Hz
Output: 24V DC 1.25A
Power Consumption≤14W
Temperature0 ~ 50°C
Humidity10% ~ 90%
Dimension (W*D*H)115*16.2*109mm
Net Weight196g

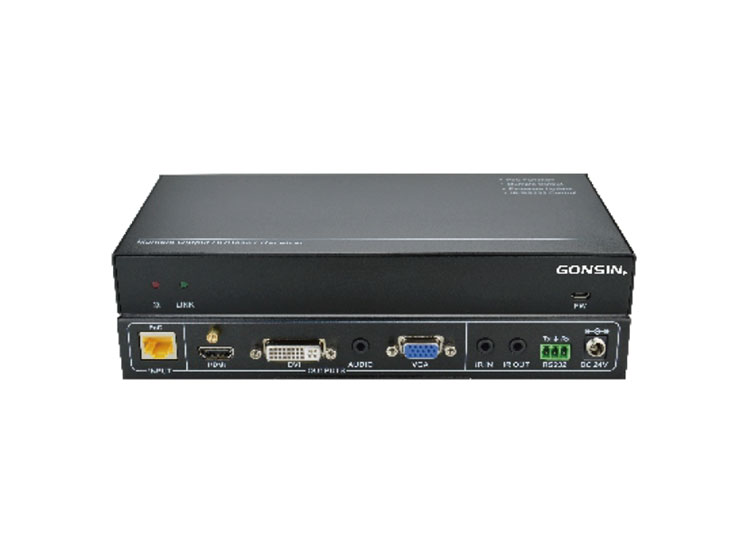

Features of GX-TF102R-D

  • The highest resolution of HDMI, DVI and VGA signals can reach 1920x1200@60HZ

  • Support bi directional power supply function

  • Maximum transmission distance is 70 m for 1080P

  • Support upscaling function

  • DVI/VGA input signal can be embedded in external audio

  • Freely switch HDMI, DVI and VGA input signals

  • Support front panel button control, bidirectional RS232 serial port command control

  • LED indicators show work status


Technical Parameters of GX-TF102R-D

Input1*HDBaseT(RJ-45 Connector)
1*HDMI(Type A HDMI Female)
Output1*DVI(DVI-I Female)1*VGA(D-Sub)
1*AUDIO(3.5mm jack)
Control Ports (pass-through)1*IR IN(3.5mm jack)
1*IR OUT(3.5mm jack)
1*RS232(3pin Phoenix Contact)
Transmission ModeHD BaseT
Transmission Distance1080P ≤70m
VGASupport VGA, YPbPr
Bandwidth10.2Gbps
HDMI StandardHDMI1.4, HDCP1.2
Power SupplyInput: 100V AC ~ 240VAC, 50/60Hz
Output: 24V DC 1.25A
Power Consumption≤13W
Temperature0 ~ 50°C
Humidity10% ~ 90%
Dimension (W*D*H)220*100*30mm
Net Weight455g
