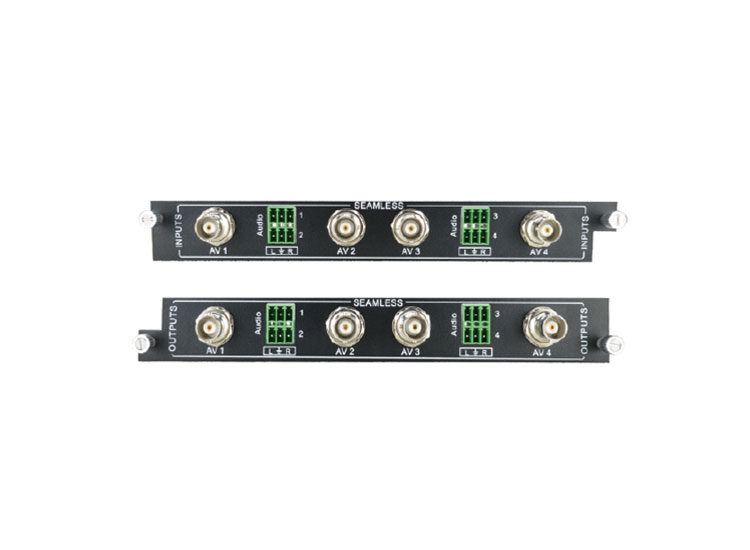

4-way CVBS Seamless Input/Output Card

Central Control System
Central Control System

Features of 4-way CVBS Seamless Input / Output Card

GX-CVBS4I-D

  • 4 channels for CVBS input, 4 channels for analog audio signal input

  • Supports video upscaling, converting output video to 1080P or 1920x1200P

  • Support NTSC or PAL, adjusted by instruction

  • Input signal card with character overlay function


GX-CVBS4O-D

  • 4 channels for CVBS output, 4 channels for analog audio signal output

  • The output resolution supports 480i or 576i

  • Support NTSC or PAL, adjusted by instruction

  • Input signal card with character overlay function

Technical Parameters of 4-way CVBS Seamless Input / Output Card

Product4-way CVBS seamless input card4-way CVBS seamless output card
ModelGX-CVBS4I-DGX-CVBS4O-D
Video signal
Type of signal4 channels for CVBS signal
ConnectorBNC
Resolution480i or 576i480i or 576i (default)
Transmission Distance≤100m(select high quality wire)
Audio Signal
Signal TypeAnalog audio signal input×4Analog audio signal output×4
Connector3-pin phoenix contact
Audio input impedance>10K Ohm-
Input impedance75 Ohm
Frequency response20Hz~20K Hz
Audio Bottom Noise-80dB
Audio Maximum Undistorted Voltage2.0V
Transmission Distance≤100m(select high quality wire)
General
Gain0dB
Crosstalk<-50dB@5MHz
Switching Rate200ns (Maximum)
Power consumption11W9W
Working temperature0°C~+50°C
Relative humidity10%~90%
Bandwidth6.75Gbps
