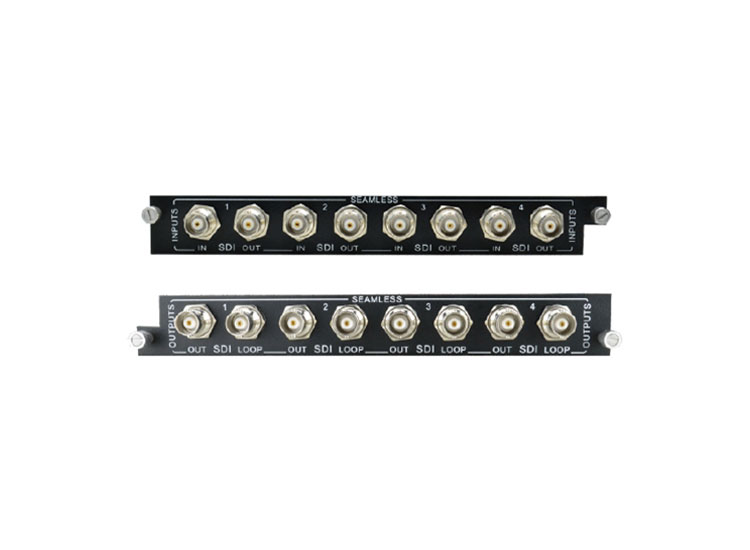

4-way SDI Seamless Input/Output Card

Central Control System
Central Control System

Features of 4-way SDI Seamless Input / Output Card

GX-SDI4I-D

  • 4 SDI input and 4 loop output ports

  • Compatible with 3G-SDI/HD-SDI/SDI signal formats for SDI input

  • The transmission distance is 100 meters for 1080P signal

  • Supports video upscaling, converting output video to 1080P or 1920x1200P

  • Input signal card with character overlay function


GX-SDI4O-D

  • 4 SDI output and 4 loop output ports

  • Compatible with 3G-SDI/HD-SDI/SDI signal formats for SDI output

  • The transmission distance can up to 100 meters at 1080P

Technical Parameters of 4-way SDI Seamless Input / Output Card

Product4-way SDI seamless input card4-way SDI seamless output card
ModelGX-SDI4I-DGX-SDI4O-D
Type of signalSDI output ×4 (with SDI loop output ports)
ConnectorBNC
Input LevelT.M.D.S 2.9V~3.3V
Input Impedance75 Ohm
Video signalSDI, HD-SDI, 3G-SDI
Color depth8&10& 12bit
Bandwidth6.75Gbps
Highest resolution1080P@60Hz
Transmission Distance≤100m(select high quality wire)
General
Gain0dB
Crosstalk<-50dB@5MHz
Switching Rate200ns(Maximum)
Power consumption14W15W
Working temperature0°C~+50°C
Relative humidity10%~90%
