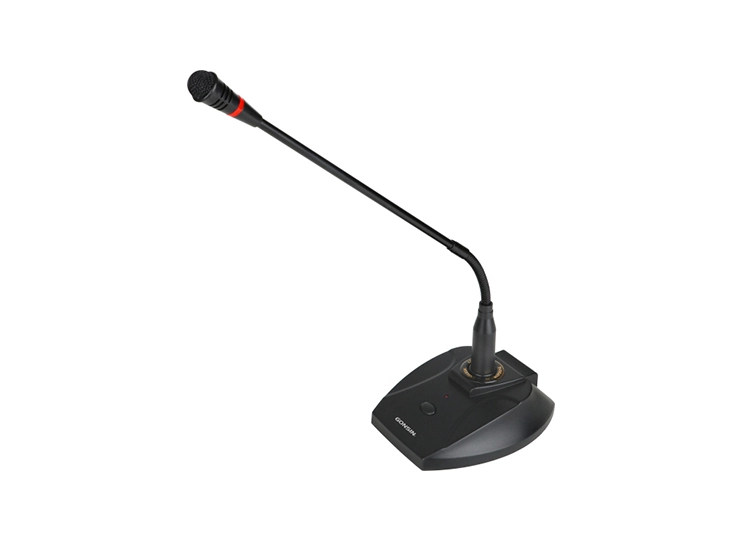

Microphone with Chime GX-PB1410

microphone with chime gx pb1410 3
microphone with chime gx pb1410 3
Get A Quote
Features
Technical Parameters

Features of Microphone with Chime GX-PB1410

  • Use with host of pre-amplifier

  • Simple and beautiful design with black hose, hard straight tube and curved base

  • With a light ring indicator, the status of the microphone is clear

  • Configure high-fidelity line, high-quality electret head, with clear sound effect

  • It has transparent sound, super anti-howling ability and good pickup characteristics

  • There is a bell prelude prompt tone when the microphone is turned on, and the volume is adjustable

Technical Parameters of Microphone with Chime GX-PB1410

ModelGX-PB1410
Transducer TypeCapacitive type
DirectivityCardioid pointing
Frequency Response40Hz~16kHz
Sensitivity38dB±2dB
Output Impedance200Ω
Effective Pickup Distance20~60cm
SwitchingSelf-locking switch
Output; indicatorUnbalanced; seat indicator, tube indicator
Audio Cable8m dual-core audio cable
Power SupplyDC3V/AC220V
Continuous Battery Life18 hours (No.5 battery)
Net Weight0.45kg
Gross Weight0.9kg
Microphone Base115×140×30mm
Package Size465×65×19mm
Working Temperature-5℃~80℃
Working Humidity20%~80% relative humidity
Storage Temperature20~30℃
Storage Humidity25%~50%
