Types and Advantages of HDMI Matrix Switcher

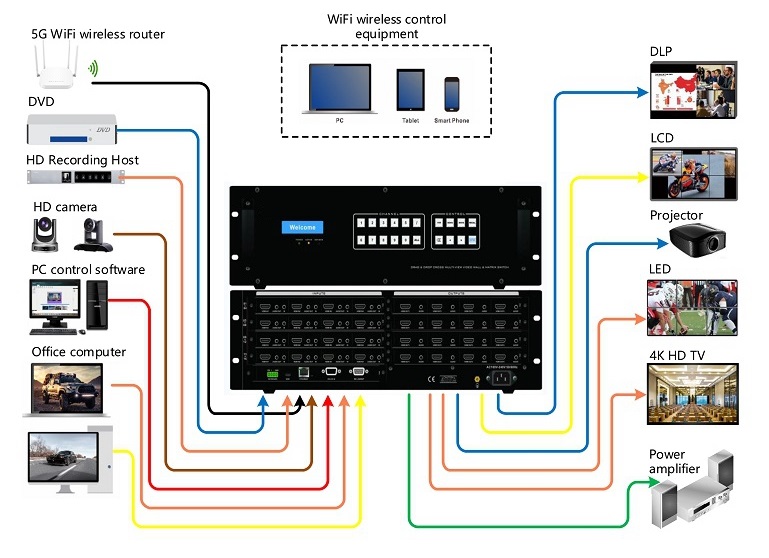

In the field of digital audio and video, HDMI matrix switcher is a device that can centralize the distribution and control of multiple digital and analog HDMI AV signals, simplifying the routing of video and audio signals at a single location, covering a variety of input sources, such as personal computers, Blu-ray players, and surveillance cameras, outputting to one or more target sources, such as TVs, monitors, and projectors.


HDMI Matrix Switcher Types


CAT6 HDMI Matrix Switcher


CAT6 HDMI matrix switcher transmits signals through CAT6 cables, suitable for users seeking economical, flexible, durable connections that are easy to terminate in the field. These switchers can extend the transmission distance of video signals, allowing technicians to install cables of any length based on specific applications, eliminating technical and logistical issues involved in installing "long" HDMI cables.


IP HDMI Matrix Switcher


IP HDMI matrix switcher allows conversion and transmission of HDMI signals up to 4K resolution, 60 Hz 4:4:4 over a new or existing IP network, without the need for proprietary links between devices. IP control also allows you to establish connections or call up configuration presets, and assign custom names to each input, output, and preset mode. In addition, IP control supports simultaneous users from any device, including personal computers, smartphones, or tablets.


Component HDMI Matrix Switcher


Component HDMI matrix switcher is a combination of component distributor and component switcher. It allows users to switch from multiple component sources to multiple displays with compatible outputs. Component video is a form of video signal that splits the video into two or more component channels, referring to three independent signals transmitted or stored in a component analog video (CAV) manner.




Advantages of HDMI Matrix Switcher


HDMI matrix switcher has numerous advantages:


  • Preferred source devices can be used via remote control or console buttons.


  • Signals can be transmitted from a single input source to multiple output sources, earlier models could only provide limited options.


  • Combines HDMI distributor and HDMI switcher into one unit.


  • Expands HDMI inputs easily to multiple outputs by splitting the signal without loss of quality.


  • Ensures signal quality stability during long-distance transmission by buffering and amplifying signals.


  • One of the greatest benefits of adding HDMI matrix switcher to a circuit is that it allows easy distribution of the same signal.


Applications of HDMI Matrix Switcher


HDMI matrix switcher is suitable for various applications that require customized high-speed AV signal routing from multiple sources to one or more destinations.


These switchers are widely used in broadcast television, multimedia conference rooms, education and command control centers. They are also well-suited for the enterprise, government, and military markets, where signal management and high-speed distribution of high-resolution video signals are essential.


As professionals recognize the benefits of using HDMI matrix switcher, manufacturers are focusing on expanding the variety to provide users with more options to simplify circuitry.
