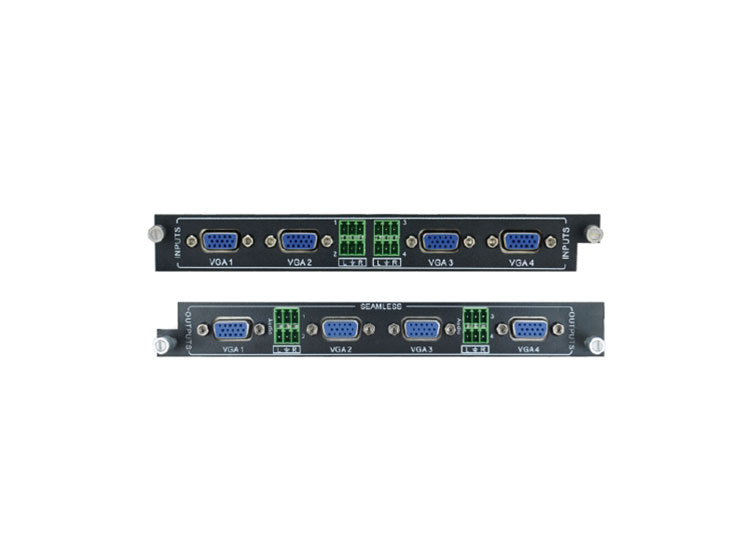

4-way VGA Seamless Input/Output Card

Vga Input Card
Vga Input Card

Features of 4-way VGA Seamless Input / Output Card

GX-VGA4I-D

  • 4 channels for VGA input, 4 channels for analog audio signal input

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Manually select VGA (RGBHV), YPbPr, S-VIDEO or C-VIDEO signal format

  • VGA signals support embedded analog audio, and audio and video

  • synchronization (if no video, embedded audio can not be transmitted)

  • Supports video upscaling, converting input video to 1080P or 1920x1200P

  • Input signal card with character overlay function

  • Support single port recovery factory settings


GX-VGA4O-D

  • 4 channels for VGA output, 4 channels for analog audio signal output

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Manually select VGA (RGBHV), YPbPr, S-VIDEO or C-VIDEO signal format

  • VGA signals support embedded analog audio, and audio and video synchronization (if no video, embedded audio can not be transmitted)

  • Supports video upscaling, converting input video to 1080P or 1920x1200P

  • When the output board is set to CVBS, the default is PAL and can be set to NTSC

  • Support single port recovery factory settings

Technical Parameters of 4-way VGA Seamless Input / Output Card

Product4-way VGA seamless input card4-way VGA seamless output card
ModelGX-VGA4I-DGX-VGA4O-D
Video Signal
Type of signal4 channels for VGA signal, compatible with YPbPr, S-VIDEO, CVBS(manually select)
ConnectorD-sub female
Input Level0.5~2.0Vp-p
Input Impedance75 Ohm
Transmission DistanceYPbPr:170MHz; CVBS:150MHz; VGA:170MHz340MHz(-3dB)
Bandwidth≤10m(select high quality wire)
Audio Signal
Input signalAnalog audio signal input ×4
Input Connector3-pin phoenix contact
Audio input impedance>10K Ohm-
Input impedance75 Ohm
Frequency response20Hz~20K Hz
Transmission Distance≤10m(select high quality wire)
General
Gain0 dB
Crosstalk200ns (Maximum)
Switching Rate<-50dB@5MHz
Power consumption12W6W
Working temperature0°C~+50°C
Relative humidity10%~90%
Note: When connecting YPbPr, S-VIDEO and CVBS signals, special connection lines are needed.
