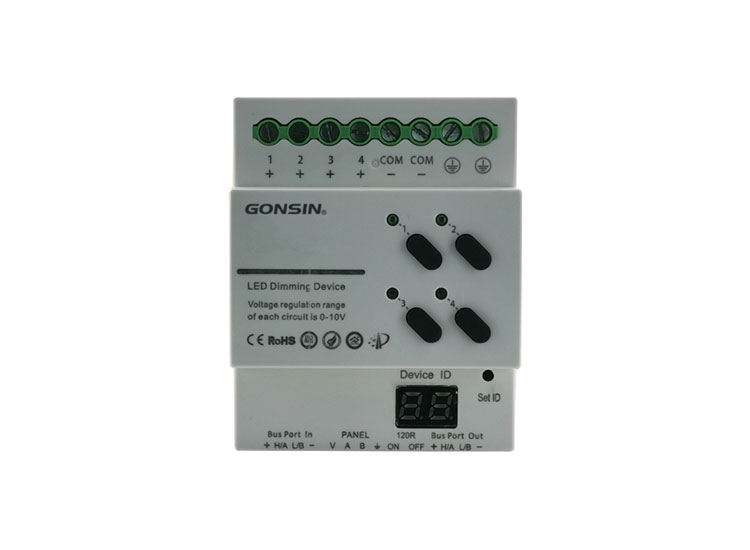

LED Dimming Processor Module (DIN Rail) GX-D704S1 / GX-D704S2

LED dimming control used in various occasions, supporting 0-10V control dimming, with rail design, and can be installed in standard distribution box. RS485 or can communication mode can be selected, and multiple groups of state saving and recovery functions are available. It is suitable for LED dimming under central control management and other application scenarios supporting 0-10V control to realize various intelligent controls.

Central Control System
Central Control System

Features of LED Dimming Processor Module (DIN Rail) GX-D704S1 / GX-D704S2

  • Use with central control system

  • Use with the lights whose control mode is 0-10V

  • Miniaturized design, standard distribution box rail installation

  • Support button dimming (level 6)

  • Support CAN bus control mode (GX-D704S1)

  • Support RS485 bus control mode (GX-D704S2)

  • Support 4 groups of LED brightness dimming

  • Support channel status feedback function, support real-time query of channel status

  • Device ID can be set manually, support multi-machine cascade

  • Support environment illuminance preset and setting

Technical Parameters of LED Dimming Processor Module (DIN Rail) GX-D704S1 / GX-D704S2

Output voltage0-10V, single channel supports simultaneous control of 8 lights
Output channel4 channels
Control modeCAN (baud rate 125kbps)\RS485 (baud rate 9600bps)
Panel key control6-level dimming
Device IDManually adjustable
Single channel maximum output current5mA
Power supplyBus DC24V
Power consumption<1W
InstallationDistribution box rail installation, 4P
Dimensions (L×W×H)72×90×63mm
