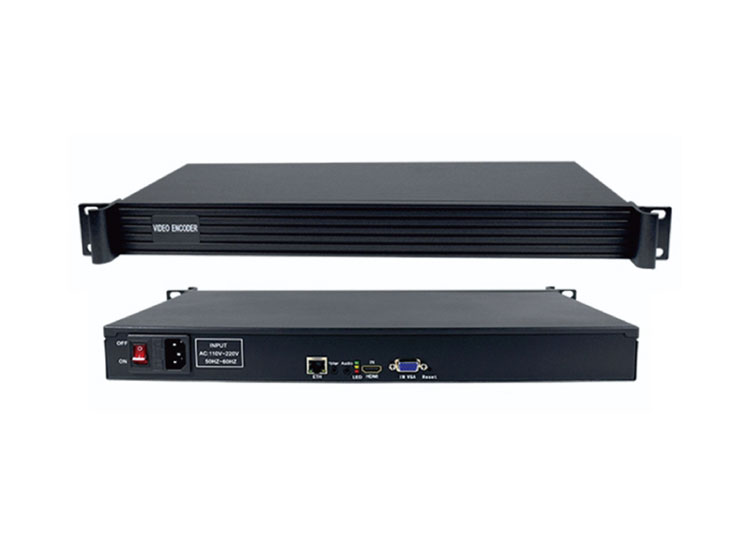

Encoder GX-SMI301A-H

Encoder GX-SMI301A-H
Encoder GX-SMI301A-H

Basic Functions of Paperless Conference System Configuration Paperless Encoder GX-SMI301A-H

  • In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology

  • Support HDMI/CVBS/VGA/YPBPR input, 1 channel 3.5 audio input

  • Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i and other resolutions

  • Image setting: contrast, brightness, hue, saturation, noise detection, sharpness, smoothing

  • Support RTSP/RTP/RTMP/HTTP/UDP/unicast/multicast protocols(RTMP support user to add user's name and password)

  • Support TCP, UDP, 1000M (RJ45 dual interfaces) transmission, support automatic IP acquisition with DHCP


Technical Specifications of Paperless Conference System Configuration Paperless Encoder GX-SMI301A-H

Input Interface1*HDMI signal input/ 1*VGA signal input/ 1*YPBPR signal input/1*CVBS signal/ 1*3.5 audio input/ 1*RJ45 output
Output Interface1*RJ45 output
Input Resolution1920x1080p/1920x1080i/1280x720p /720*576i/720*576p /640*480i and others
Coding StandardH.264
Output Resolution640*360~1920*1080, 30 frames
Audio CodingAAC/MP3, 64Kb/s~384Kb/s
Sampling Frequency32000, 44100, 48000 and etc
IP Output1*RJ 100M/1000M adaptable ethernet interface, TS standard flow,dual-stream, ONVIF protocol
Network ProtocolSupport HTTP, RTSP, RTMP, UDP, multicast, unicast
Power SupplyAC110~220V 50/60Hz
Power Consumption12W
Dimensions(L*W*H)430mm x 250mm x 45mm
Weight3KG
Operating Temperature-20°C~ 60°C
